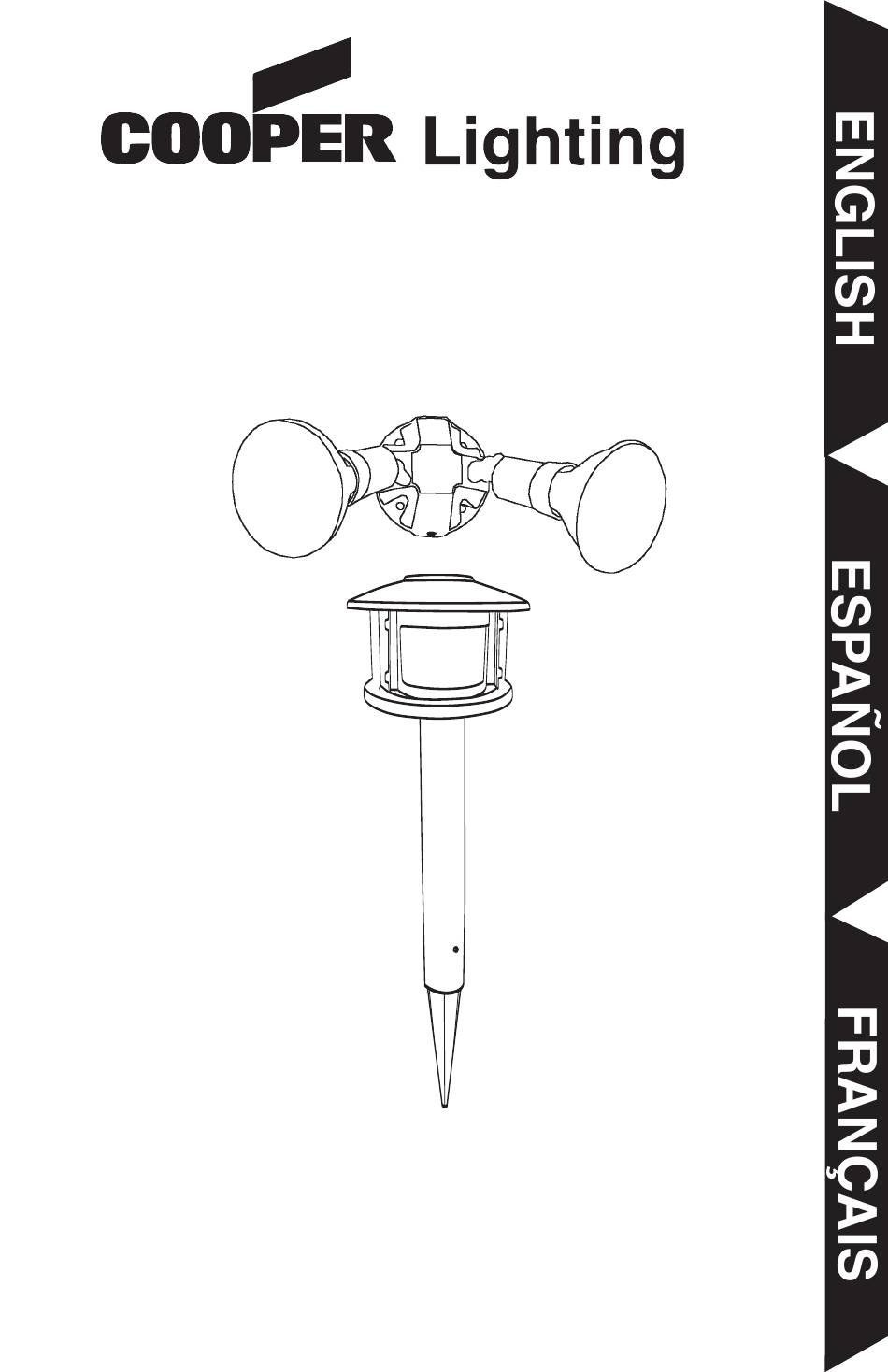

- Page 1 Instruction Manual Instrucciones Directives RFM300 (Bronze) RFM300W (White)
- Page 2 RFM300 (Bronze) RFM300W (White) Congratulations. You have just purchased a Cooper Lighting digital wireless communication system. The battery operated landscape motion sensor con- tains a radio frequency (RF) transmitter. The twin par floodlight contains a RF receiver and can be mounted to a standard junction box. When the sensor detects motion, it automatically sends a signal to the receiver, which turns on the floodlight.
- Page 3 FCC Rules, any changes or modifications to the motion detector described in this instruction sheet that are not expressly approved by Cooper Lighting could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 For best results • Locate motion sensor so motion moves across detection zone (K). • Locate sensor away from heat producing sources to prevent false triggering. Also, be very careful not to include objects such as windows, white walls and water in the detection zone whenever possible.
- Page 5 Step 8: Install motion sensor head (A) on driveway sensor post (I) by align- ing slots in flange on bottom of sensor head with protrusions on side of post top. NOTE: Make sure motion sensor front is in the same orientation as arrow on post flange.
- Page 6 Step 3: Turn on power to floodlight receiver. Step 4: Aim driveway sensor head toward desired detection area. Step 5: Walk across the detection zone at the farthest distance you wish your detector to detect motion. Adjust sensitivity until you get desired results. Step 6: Your sensor is equipped with two lens shutters, which will allow you to customize your detection area down to 90 degrees.
- Page 7 What to do if . . . QUENTIAL DAMAGES RESULTING FROM Is there power to the floodlight? OUTDOOR FLOODLIGHT • Check to see that the circuit breaker has not DOES NOT COME been tripped. ON WITH MOTION • Be sure the wall switch is in the “ON” position. AT NIGHT •...
- Page 8 1121 Highway 74 South, Peachtree City, GA 30269 USA 1-800-334-6871 www.cooperlighting.com Reproductions of this document without prior written approval of Cooper Lighting are strictly prohibited. Printed in China...
