TEC2664Z-3 BACnet® MS/TP Rooftop Controller for
Stand-Alone and Networked Zoning Systems
Installation Instructions
Applications

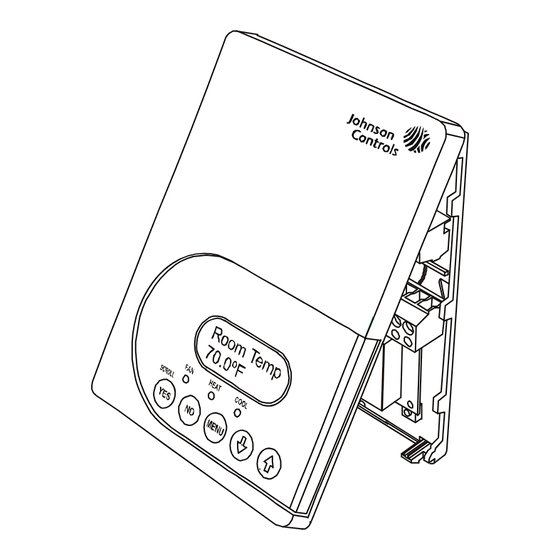

The TEC2664Z-3 Rooftop Controller is a
BACnet® Master-Slave/Token-Passing (MS/TP)
device that operates with a Johnson Controls®
TEC2647Z-3 or TEC2647Z-3+PIR (occupancy sensor
model) Zone Controller to provide efficient space
temperature control in constant volume zoning
systems. This technologically advanced rooftop
controller provides a proportional 0 to 10 VDC control
output to the bypass damper of a rooftop unit based on
the sensed pressure in the duct, and controls up to
two stages of heating and two stages of cooling.
The TEC2664Z-3, TEC2647Z-3+PIR, and
TEC2647Z-3 Controller combination can operate as a
stand-alone zoning system or it can operate with a
Building Automation System (BAS) that enables
remote monitoring and programming in networked
zoning systems.
The TEC2664Z-3 Rooftop Controller features an
intuitive user interface with backlit display that makes
setup and operation quick and easy. The rooftop
controller also employs a unique,
Proportional-Integral (PI) time-proportioning algorithm
that virtually eliminates temperature offset associated
with traditional, differential-based rooftop controllers.
IMPORTANT: The TEC2664Z-3 Rooftop Controller
is intended to provide an input to equipment under
normal operating conditions. Where failure or
malfunction of the rooftop controller could lead to
personal injury or property damage to the controlled
equipment or other property, additional precautions
must be designed into the control system.
Incorporate and maintain other devices, such as
supervisory or alarm systems or safety or limit
controls, intended to warn of or protect against
failure or malfunction of the rooftop controller.
Refer to the
TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked
Part No. 24-9890-1362, Rev. —
QuickLIT Web site
for the most up-to-date version of this document.
North American Emissions Compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case
the user will be required to correct the interference
at his/her own expense.
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Zoning Systems Installation Instructions
Issued May 13, 2011
1

Advertisement

Table of Contents
loading

Summary of Contents for Johnson Controls TEC2664Z-3 BACnet

  • Page 1 Incorporate and maintain other devices, such as supervisory or alarm systems or safety or limit controls, intended to warn of or protect against failure or malfunction of the rooftop controller. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 2: Location Considerations

    Do not mount the rooftop controller where it may be exposed to water, condensation, other liquids, or corrosive or flammable vapors of any kind. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 3 5. Position the controller mounting base so that the arrow on the base points upward to indicate the top Figure 5: Removing the Screw Terminal Blocks of the controller. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 4 5. Reattach the rooftop controller cover to the mounting base (top side first). 6. Use a Phillips-head screwdriver to reinstall the security screw on the bottom of the rooftop controller cover. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 5 RC and RH. 24 VAC Sensor Rooftop Controller Sensor Sensor Power – Supervisory Controller Figure 6: Wiring the TEC2664Z-3 Rooftop Controller (See Table 1.) TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 6 If a supervisory controller is at the end of the segment, then the end-of-line terminator switch on the supervisory controller must be set in the ON position. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 7: Setup And Adjustments

    Use the UP/DOWN arrow keys to change the configuration parameters and to activate a setpoint • Current Zone Sequence (Off/Cool/Heat) adjustment. • Return Air Temp • Discharge Air Temp • Current Static Pressure TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 8: Main User Menu

    UP/DOWN arrow keys to change the device address in increments of 10. Note: This parameter setting must be the same as the RTC MAC parameter setting for all zone controllers associated with this rooftop controller. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 9 Cooling cycles per hour. Default: 4.0 Deadband Sets the minimum deadband Range: 2.0F°/1.0C° to 4.0F°/2.0C° adjustable in 1.0F°/0.5C° between the heating and cooling increments setpoints. Default: 2.0F°/1.0C° TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 10 (1): One stage of heating Default: 2 (2): Two stages of heating Note: Two-stage rooftop controller operation reverts to one-stage operation only when the second heating step is not required. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 11 If network communication is lost Range: 54.0°F/12.0°C to 100.0°F/37.5°C Unocc CL with the zone controller(s), the return air sensor controls the rooftop controller to maintain this Unoccupied Cooling setpoint. Default: 82.0°F/28.0°C TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 12 When adjusting the temperature, press the UP or DOWN arrow key to change the value in 5.0F°/5.0C° increments; press and hold the UP or DOWN arrow key to change the value in 50.0F°/50.0C° increments. This value is adjustable in 0.1 in. W.C./25 Pa increments. TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 13: Sequence Of Operation

    PI Demand (Depends on Control Type Selected) PI Demand (Depends on Control Type Selected) Increase Heating Increase Cooling Figure 8: Rooftop Controller Sequence of Operation for Two-Stage Heating and Two-Stage Cooling TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 14 * If AO2 stage is locked, then AO1 = minimum position. Figure 11: Zone Controller Set for Analog Duct Reheat Only, BO5 = Off (Rooftop Controller in Cooling Mode) TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 15 Setpoint Figure 13: Zone Controller Set for On/Off Duct Reheat Only, AO2 = 0% and On/Off Reheat Time Base = 10 Seconds (Rooftop Controller in Cooling Mode) TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 16 (Rooftop Controller in Cooling Mode) Heating Cooling Setpoint Setpoint Figure 15: Zone Controller Set for On/Off Duct Reheat Only, AO2 = Off (Rooftop Controller in Heating Mode) TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 17 (Rooftop Controller in Cooling Mode) Heating Cooling Setpoint Setpoint Figure 17: Zone Controller Set for Terminal Reheat on AO2 and Peripheral Heating on BO5 (Rooftop Controller in Cooling Mode) TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 18 Heating Cooling Setpoint Setpoint Figure 18: Zone Controller Set for Terminal Reheat on AO2 and Peripheral Heating on BO5 (Rooftop Controller in Heating Mode) TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 19: Operation

    Rooftop Controller User Interface Keys on page 7 for a description of the five user interface keys. Figure 19 shows a flow chart of the Main User Menu. Figure 19: Main User Menu TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 20 This alarm is valid only if the DI1 parameter is configured and used as a filter alarm. This alarm is valid only if communication is lost to the zones (not necessarily a BACnet communication failure). TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 21 This alarm is valid only if the DI1 parameter is configured and used as a filter alarm. This alarm is valid only if communication is lost to the zones (not necessarily a BACnet communication failure). TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 22 Bypass Damper Position = 100% Forced Open = 10 VDC Bypass Damper Output Exit Based on Static Pressure Input Figure 21: Bypass Damper Sequence Figure 22: System Mode and Fan Operation TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 23 PI Heating Demand? Zone Sequence = Cool Avg PI Cooling Demand = Avg Zone Sequence Stays in Existing Mode PI Heating Demand? Figure 23: Zone Sequence Selection TEC2664Z-3 BACnet® MS/TP Rooftop Controller for Stand-Alone and Networked Zoning Systems Installation Instructions...
  • Page 24: Repair Information

    MS-BACEOL-0 RS485 End-of-Line Terminator Additional TE-636xx-x Series 10k ohm Johnson Controls Type II Thermistor Sensors are available; refer to the TE-6300 Series Temperature Sensors Product Bulletin (LIT-216320) for more details. An outside air temperature sensor is recommended to allow the H lock and C lock parameters of the rooftop controller to discontinue heating or cooling operation in response to the outside air temperature.
  • Page 25: Technical Specifications

    The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
