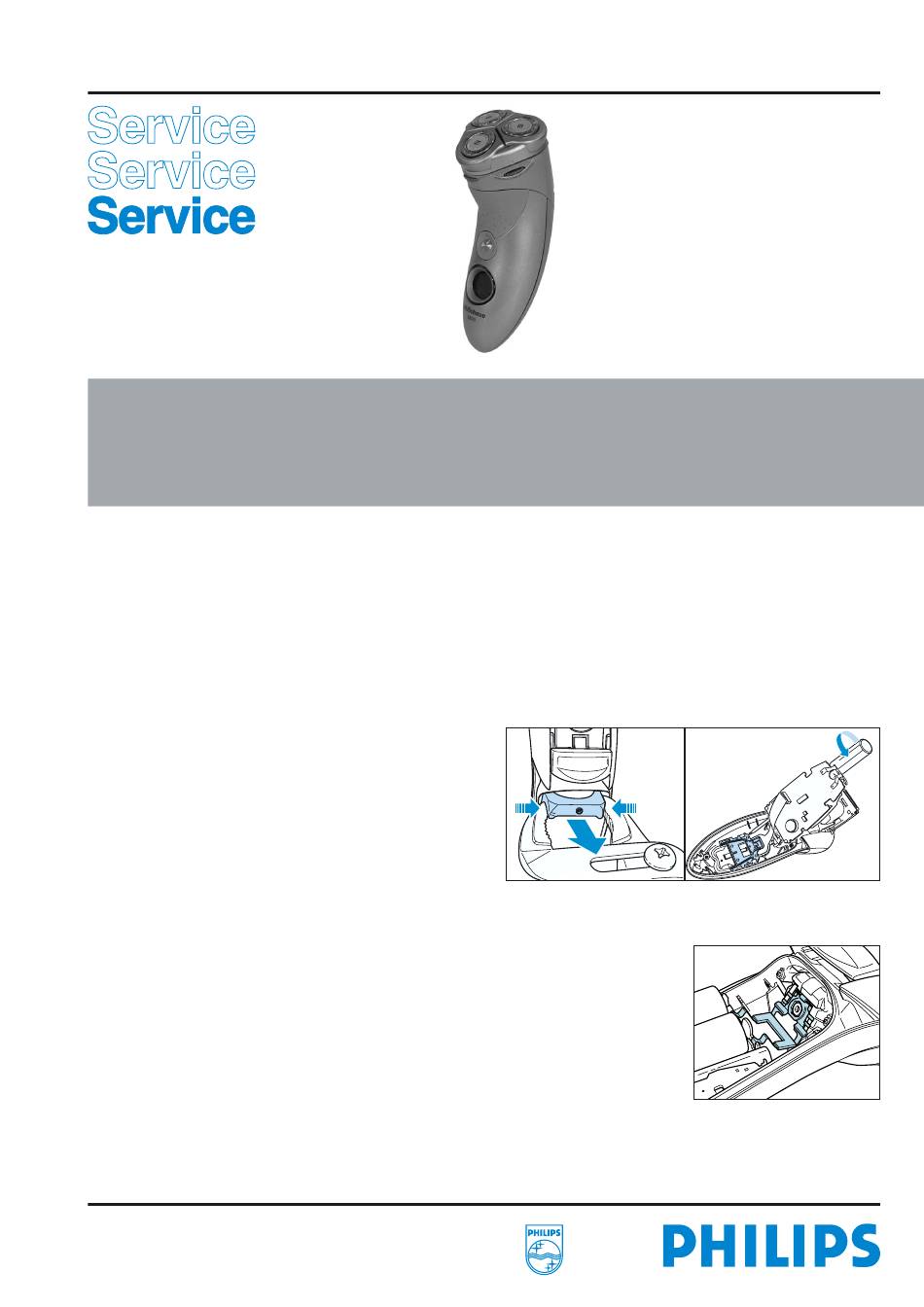

Philips SENSOTEC HQ8893 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- Rechargeable / Main shaver
- Constant motor voltage
- Electronic push on/off
- Washable
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
offi cially laid down at this moment.
TECHNICAL INFORMATION
- Voltage
- Frequency
- Motor voltage
- Speed of cutters
- Shaving heads
- Battery capacity indication : LCD
- Battery full indication
- Battery low indication
- Charge indication
- Battery
- SAP coding
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
Disassembly:
- Remove shaving unit, to prevent damages during
repairing.
- Remove screws A1 (2x).
- Take cover from housing (trimmer must be opened).
- Remove bracket large (17). (see fi gure 1)
- The PCB-board can now be removed out of the
housing.
Published by Philips Domestic Appliances and Personal Care
4322 277 01095
02/11
: 100 - 240 Volt
: 50 - 60 Hz
: 2,4 Volt
: > 2100 r.p.m.
: HQ8 - 4222 036 05820
: LCD
: LCD + audible
: LCD
: AA pack NiMH (green)
: HQ8893
Printed in the Netherlands
- Remove the connecting strip from the motor by
dis soldering.
- Remove screws B1 (2 x), now the motor and hairchamber
can be removed out of the housing.
- Detach the motor springs (14) from the gearwheel unit
with a small screwdriver.
- For removing the LCD you need a torx screwdriver, set it
under the LCD bracket and turn the screwdriver.
(see fi gure 2)
fi gure 1
Assembly:
- Think by assembly on the
hooks from the connecting
strip assy. (see fi gure 3)
© Copyright reserved
Shaver
HQ8893
SENSOTEC
fi gure 2
fi gure 3
Subject to modification
