Gigabyte Aorus KD25F User Manual

Tactical gaming monitor
Hide thumbs Also See for Aorus KD25F:
Table of Contents

Advertisement

Quick Links

AORUS KD25F
TACTICAL
USER GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte Aorus KD25F

Summary of Contents for Gigabyte Aorus KD25F

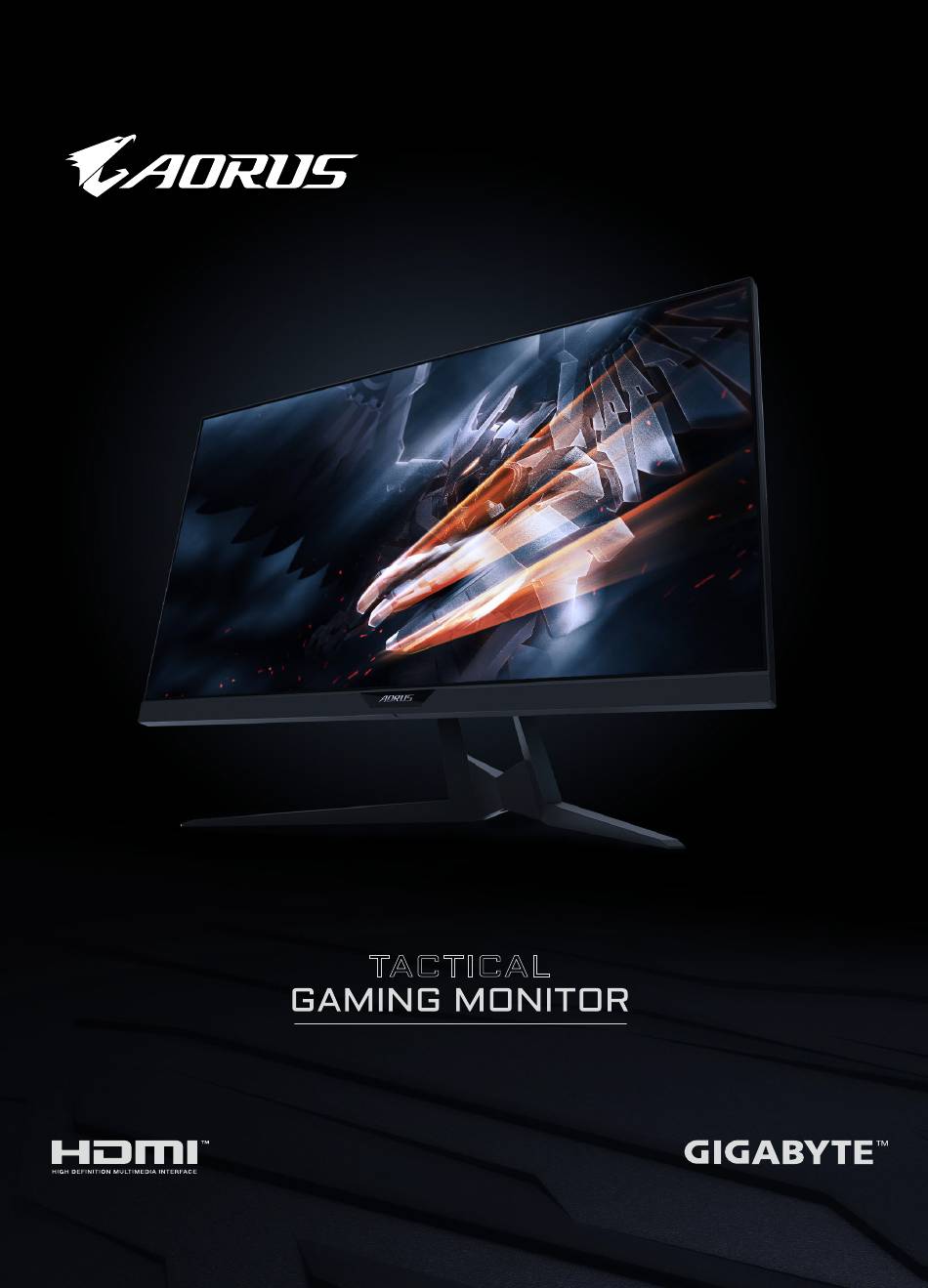

  • Page 1 AORUS KD25F TACTICAL USER GUIDE...
  • Page 2 GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission. • In order to assist in the use of this monitor, carefully read the User Guide.

  • Page 3: Safety Information

    Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: AORUS KD25F Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...

  • Page 4: Canadian Department Of Communications Statement

    European Union (EU) Community Waste Electrical & Electronic Equipment (WEEE) Directive Statement GIGABYTE will fulfill the national laws as interpreted from the 2012/19/EU WEEE (Waste Electrical and Electronic Equipment) (recast) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components.
  • Page 5 LCD Monitor User's Manual End of Life Directives-Recycling The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
  • Page 6 ○ : 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以 下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要 求。 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：液晶顯示器 型號（型式）：AORUS KD25F Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 六價鉻 多溴聯苯...

  • Page 7: Safety Precautions

    LCD Monitor User's Manual Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 8: Table Of Contents

    LCD Monitor User's Manual CONTENTS SAFETY INFORMATION ........................3 Regulatory Notices .......................3 Safety Precautions ........................7 INTRODUCTION ..........................10 Unpacking ..........................10 Package Contents .........................12 Product Overview .........................13 GETTING STARTED ..........................15 Installing the Monitor Base ....................15 Lift the monitor ........................17 Adjusting the Viewing Angle ....................18 Installing a Wall-Mount Bracket (Optional) ..............20 Making Connections ......................22 USING THE DEVICE ..........................23...
  • Page 9 LCD Monitor User's Manual Basic Care ..........................44 Notes on USB Charging .......................44 GIGABYTE Service Information ..................44 - 9 -...

  • Page 10: Introduction

    LCD Monitor User's Manual INTRODUCTION Unpacking Open the upper cover of the packaging box. Then observe the unpacking instruction attached on the inner cover. Making sure the box is in the correct orientation, carefully lay the box on the stable surfacepen.
  • Page 11 LCD Monitor User's Manual Remove the items from the upper EPS foam. Remove the upper EPS foam. Then you can remove the stand from the lower EPS foam. - 11 -...

  • Page 12: Package Contents

    LCD Monitor User's Manual Package Contents The following items come with your packaging box. If any of them is missing, please contact your local dealer. Monitor Monitor Base Power Cable Stand USB Cable DP Cable Multilingual Installation Guide Quick Start Guide Warranty Card HDMI Cable Note: Please keep the packaging box and packing materials for future transporta-...

  • Page 13: Product Overview

    LCD Monitor User's Manual Product Overview Front View Power LED Control button - 13 -...
  • Page 14 LCD Monitor User's Manual Rear View HDMI-1 HDMI-2 USB 3.0 AC Switch HDMI ports (x2) AC IN jack DisplayPort Kensington lock USB upstream port Headphone jack USB 3.0 ports (x2) Microphone jack - 14 -...

  • Page 15: Getting Started

    LCD Monitor User's Manual GETTING STARTED Installing the Stand Base Align the Stand base with the stand off underneath the stand. Then attach the base onto the stand. Tighten the screw to secure the monitor base in place. Note: You can either use a coin or a small flathead screwdriver to tighten the screw. - 15 -...
  • Page 16 LCD Monitor User's Manual Lift the assembled Stand & Base to an upright position and place it on a table. Then lower the stand plate to allow the safety plate to automatically release from its slot. Place the monitor on the package cushion or a flat surface, with screen facing down.

  • Page 17: Lift The Monitor

    LCD Monitor User's Manual Lift the monitor Take the monitor out of the box by holding the stand arm. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface. Remove the foam wrap from the monitor. Note: Consider keeping the box and packaging in storage for use in the future when you may need to transport the monitor.

  • Page 18: Adjusting The Viewing Angle

    LCD Monitor User's Manual Adjusting the Viewing Angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. Adjusting the Tilt Angle Tilt the screen forward or backward to the desired viewing angle (-5˚ to 21˚). 21°...
  • Page 19 LCD Monitor User's Manual Changing the Screen Orientation Raise the screen to the highest position (130mm). 130 mm Note: Before making the height adjustment, make sure you have removed the safety plate from the stand. Rotate the monitor (90˚ clockwise) to portrait orientation. - 19 -...

  • Page 20: Installing A Wall-Mount Bracket (Optional)

    LCD Monitor User's Manual Installing a Wall-Mount Bracket (Optional) Use only the 100 x 100 mm wall mount kit recommended by the manufacturer. Place the monitor on a flat surface, with the screen facing down. Note: We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.
  • Page 21 LCD Monitor User's Manual Attach the mounting bracket to the mounting holes at the rear of the monitor. Then use the screws to secure the bracket in place. 100 mm 100 mm Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit.

  • Page 22: Making Connections

    LCD Monitor User's Manual Making Connections HDMI-1 HDMI-2 USB 3.0 Keyboard Mouse & USB disk drive Computer Power outlet Computer Headphone Microphone Power cable DisplayPort cable Headphone cable USB (A-Male to B-Male) cable Microphone cable USB cable HDMI cable - 22 -...

  • Page 23: Using The Device

    LCD Monitor User's Manual USING THE DEVICE Turning the Power On/Off Make sure the power switch next to the AC power input jack is switched to ON. Power On Connect one end of the power cable to the AC IN jack at the rear of the monitor. Connect other end of the the power cable to a power outlet.

  • Page 24: User Comfort Recommendations

    LCD Monitor User's Manual User Comfort Recommendations The following are some tips for comfortable viewing of your monitor: • Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20” to 30”). • A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.

  • Page 25: Selecting The Input Source

    LCD Monitor User's Manual Selecting the Input Source Control Move the button right ) to enter the Input menu. Input Control Move the button center ) to select the desired input source. Then press the Control HDMI 1 HDMI2 DisplayPort Select Exit - 25 -...

  • Page 26: Operations

    LCD Monitor User's Manual OPERATIONS Quick Menu Hot Key Control By default, the button has been assigned with the specific function. Note: To change the preset hot key function, refer to the “Quick Switch” section on page 36. To access the hot key function, do the following: Control button up ( ) to enter the Black Equalizer • Move the...
  • Page 27 LCD Monitor User's Manual Control button down ( ) to enter the Picture Mode • Move the menu. Control Move the button center ) to select the desired option Picture Mode Control and press the Standard AORUS RTS/RPG Movie Reader Select Exit Control...

  • Page 28: Function Key Guide

    LCD Monitor User's Manual Function Key Guide • Press the Control button to display the Main menu. Settings SETTING Dashboard Game Assist DASHBOARD EXIT GAME ASSIST Exit Power Off POWER OFF Control Then use the button to select the desired function and configure the related settings.
  • Page 29 LCD Monitor User's Manual Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen. CPU temperature CPU frequency CPU fan Speed CPU usage Rate GPU temperature GPU frequency...
  • Page 30 LCD Monitor User's Manual • AORUS INFO: Configure the FPS (First Person Shooting) game related settings. √ Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF. √ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.

  • Page 31: Configure The Device Settings

    LCD Monitor User's Manual Configure the Device Settings When the Main menu appears on the screen, move the Control button up ( ) to enter the Settings menu. Note: Use the Control button to navigate through the menu and make adjustments. Exit Move/Adjust Enter/Confirm...
  • Page 32 LCD Monitor User's Manual Item Description Aim Stabilizer When this function is enabled, it reduces the motion blur in a fast moving games. Note: This function is not available under the following conditions: - when the frequency setting is lower than 100Hz. - when the FreeSync function is activated.
  • Page 33 LCD Monitor User's Manual Picture Configure the image related settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 640x480 Gamma 3 User Define Picture Mode Standard Gaming Standard Brightness Picture AORUS Contrast Display Color Vibrance PIP/PBP RTS/RPG Sharpness System Movie Gamma Save Settings Reader Color Temperature...
  • Page 34 LCD Monitor User's Manual Display Configure the display screen related settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 640x480 Gamma 3 Normal Picture Mode Standard Gaming Input HDMI 1 Picture HDMI RGB PC Range HDMI 2 DisplayPort Display Overscan PIP/PBP System Save Settings Reset All...
  • Page 35 LCD Monitor User's Manual PIP/PBP Configure the multi-picture related settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 640x480 Gamma 3 User Define Picture Mode Standard Gaming Picture Display PIP/PBP System Save Settings Reset All Exit Move/Adjust Enter/Confirm Item Description Disable the PIP/PBP function. Split the screen into 2 parts (main window and inset window).
  • Page 36 LCD Monitor User's Manual System Configure the system related settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 640x480 Gamma 3 User Define Picture Mode Standard Gaming Language Picture Mode 1 RGB LED Display Mode 2 Headphone PIP/PBP Mode 3 Audio Source System OSD Setting Save Settings...
  • Page 37 LCD Monitor User's Manual Item Description OSD Settings • OSD Lock: When this function is enabled, no OSD adjustment is allowed. (continue) Note: To disable the OSD lock function, press the Control key. When the message appears on the screen, select Yes to confirm. The button is locked, confirm to unlock OSD.
  • Page 38 LCD Monitor User's Manual Save Settings Save all data. Resolution Brightness Contrast Sharpness Gamma Color Temperature 640x480 Gamma 3 Normal Picture Mode Standard Gaming Setting1 Save Picture Setting2 Load Display Setting3 PIP/PBP System Save Settings Reset All Exit Move/Adjust Enter/Confirm Item Description Setting1...

  • Page 39: Reset All

    LCD Monitor User's Manual Reset All Restore the monitor to its factory default settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 640x480 Gamma 3 Normal Picture Mode Standard Gaming Picture Display PIP/PBP System Save Settings Reset All Exit Move/Adjust Enter/Confirm - 39 -...

  • Page 40: Appendices

    LCD Monitor User's Manual APPENDICES Specifications Item Specifications Panel Size 24.5-inch Aspect Ratio 16:9 Resolution 1920 x 1080 Refresh Rate 240Hz LED Life 30000 hours (min.) Pixel Pitch 0.2832 x 0.2802 Response Time 0.5ms(MPRT) Brightness 400 nits (typ.) / 320 nits (min.) Contrast Ratio 1000:1 (typ.) Color Depth...

  • Page 41: Supported Timing List

    LCD Monitor User's Manual Supported Timing List Timing List HDMI 2.0 DisplayPort 1.2 640x480@60Hz √ √ 640x480@75Hz √ √ 640x480@100Hz √ √ 640x480@120Hz √ √ 640x480@240Hz √ √ 720x400@70Hz √ √ 800x600@60Hz √ √ 800x600@75Hz √ √ 800x600@100Hz √ √ 800x600@120Hz √...
  • Page 42 LCD Monitor User's Manual 1440x900@240Hz √ √ 1440x1080@144Hz √ √ 1440x1080@240Hz √ √ 1600x900@60Hz √ √ 1600x900@240Hz √ √ 1600x1024@240Hz √ √ 1680x1050@60Hz √ √ 1680x1050@240Hz √ √ 1920x1080@60Hz √ √ 1920x1080@100Hz √ √ 1920x1080@120Hz √ √ 1920x1080@144Hz √ √ 1920x1080@240Hz √...

  • Page 43: Troubleshooting

    LCD Monitor User's Manual Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. No image appears • Make sure the monitor and the computer are properly on the screen...

  • Page 44: Basic Care

    PC, these devices cannot be charged using the USB cable. Vendor Device PID/VID Apple IPad PID_129A/VID_05AC Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8 Samsung GALAXY TabPro PID_6860/VID_04E8 GIGABYTE Service Information More service information, please visit GIGABYTE official website: https://www.gigabyte.com/ - 44 -...
