Instructions/Parts List

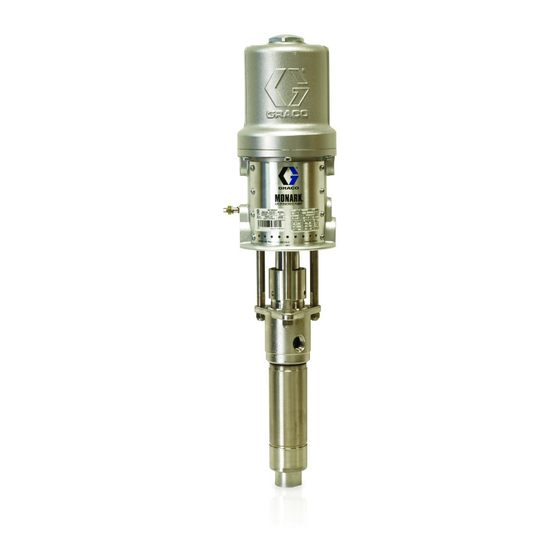

5:1 Ratio Monarkr
Sanitary Pump
Divorced Design
600 psi (4.1 MPa, 41 bar) Maximum Fluid Working Pressure
120 psi (0.8 MPa, 8 bar) Maximum Air Inlet Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See List of Models on page 2.
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
4
7
8
9
10
14
18
19
20
20
307056U
0333b
Advertisement
Table of Contents
Related Manuals for Graco Monark 207550
Summary of Contents for Graco Monark 207550
-
Page 1: Table Of Contents
........Graco Information ...... -
Page 2: Symbols
List of Models Part No. Maximum Fluid Maximum Pump Air (Series) Pump Type Pump Size Ratio Working Pressure Input Pressure 207550 (E) Double Ball 55 gal. (200 liter) 600 psi (4.1 MPa, 41 bar) 120 psi (0.8 MPa, 8 bar) Drum 903035 (A) Double Ball... - Page 3 D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment.
-
Page 4: Installation
NOTE: Reference numbers and letters in parentheses in the text refer to the callouts in the figures and the parts drawing. NOTE: Always use Genuine Graco Parts and Acces- sories, available from your Graco distributor. Refer to the Product Data Sheet for the pump, Form No. - Page 5 Installation Mounting the Pump WARNING Mount the pump to suit the type of installation planned. The bleed-type master air valve (D) is required in The pump dimensions are shown on page 18. your system to shut off and relieve air pressure that may be trapped in the air motor.
- Page 6 Installation Air Exhaust Muffler (may alternately be 3/8 npt Air Inlet M Bung-Mounted Sanitary Pump mounted remotely, using exhaust hose) G Air Line Drain Pipe and Valve Dispensing Valve Air Exhaust Hose 3/4 npt Exhaust Air Outlet 1- -1/2” Tube Size Flanged Fluid Outlet Sensing Device Air Line Filter/Regulator Dispensing Valve...
-
Page 7: Operation
Operation Pressure Relief Procedure Allow the pump to cycle slowly until all air is pushed out of the lines (the fluid will be flowing in a steady stream from the fluid outlet) and the pump is primed. WARNING With the air supply turned on, the pump will start when PRESSURIZED EQUIPMENT HAZARD the dispensing valve is opened, and stall against The system pressure must be manually relieved to... -
Page 8: Maintenance
Maintenance IMPORTANT NOTE: 4. Wash all the pump parts with an alkaline detergent at the manufacturer’s recommended temperature The following instructions show a basic procedure for and concentration, using either a brush or other cleaning a sanitary system. However, be sure to clean C.O.P. -
Page 9: Troubleshooting
Troubleshooting 1. Relieve the pressure. WARNING 2. Check all possible remedies in the Troubleshooting To reduce the risk of serious injury whenever you Chart before disassembling the pump. are instructed to relieve pressure, always follow the Pressure Relief Procedure on page 7. Problem Cause Solution... -
Page 10: Service
Service (Double Ball Pump) Disassembly Reassembly NOTE: Lubricate the o-rings, throat packings, and NOTE: Repair Kit 218741 is available. The parts piston seals with waterproof approved sanitary lubri- included in the kit are marked with an asterisk (for cant when reassembling. example, 8*). - Page 11 Service (Double Ball Pump) See Detail A. Detail A: Throat Packing See Detail B. Assembly See Detail C. Lips must face up. Lips must face down. Lubricate with sanitary lubricant. 0628 Detail B: Piston Valve Assembly 0629 Detail C: Intake Valve Assembly (all types shown) 3 (Ref) *{12...
- Page 12 Service (Priming Piston Pump) Disassembly Reassembly NOTE: Repair Kit 948147 is available. The parts NOTE: Lubricate the o-rings, throat packings, and included in the kit are marked with an asterisk (for piston seals with waterproof approved sanitary lubri- example, 8*). See page 17. Use all the parts in the kit cant when reassembling.
- Page 13 Service (Priming Piston Pump) Lips must face up. Lips must face down. Lubricate with sanitary lubricant. TI2214B Fig. 4 307056...
-
Page 14: Parts
Parts 207550, 903035, 954383, and 965520 Double Ball Pumps 2 (Ref) *{13 *{12 20{* *{12 15{* *{12 TI2216B 307056... - Page 15 Parts 207550, 903035, 954383, and 965520 Double Ball Pumps Part No. Description Part No. Description 207546 AIR MOTOR 625916 PIN, retaining, intake valve (903035 only) See 307043 for parts 207551 CYLINDER, pump 605752 BEARING, sleeve (207550, 903035) 167970 HOUSING, intake valve 902980 CYLINDER, pump (207550, 903035)
- Page 16 Parts 952793 Priming Piston Pump TI2214B 307056...
- Page 17 Parts 952793 Priming Piston Pump Part No. Description Part No. Description 207546 AIR MOTOR 167974 ROD, connecting See 307043 for parts 167975 HOUSING, retainer 902980 CYLINDER, pump 180918 HOUSING, packing 902983 ROD, displacement 169845 PIN, retaining 101946 PIN, cotter; 0.12” (3.2 mm) x 156082 O-RING;...
-
Page 18: Dimensions
Dimensions Model 207550 Shown 0333B Pump F (dia.) G (dia.) H (fluid out- in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) let tube size ) (air inlet) (exhaust) 207550 56.8 36.7 7.88 11 (280) 5.69 2.12 (54) 1--1/2 in. -
Page 19: Technical Data
Technical Data Category Data Maximum fluid working pressure 600 psi (41 bar) Maximum air input pressure 120 psi (8 bar) Ratio Pump cycles per gallon (3.8 liters) Fluid flow at 60 cycles per minute 2.3 gallons (8.7 liters) Air consumption approximately 8 scfm (0.224 m#/minute) per gallon (3.8 liters) at 100 psi (7 bar) air pressure Minimum air hose size... -
Page 20: Graco Information
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
