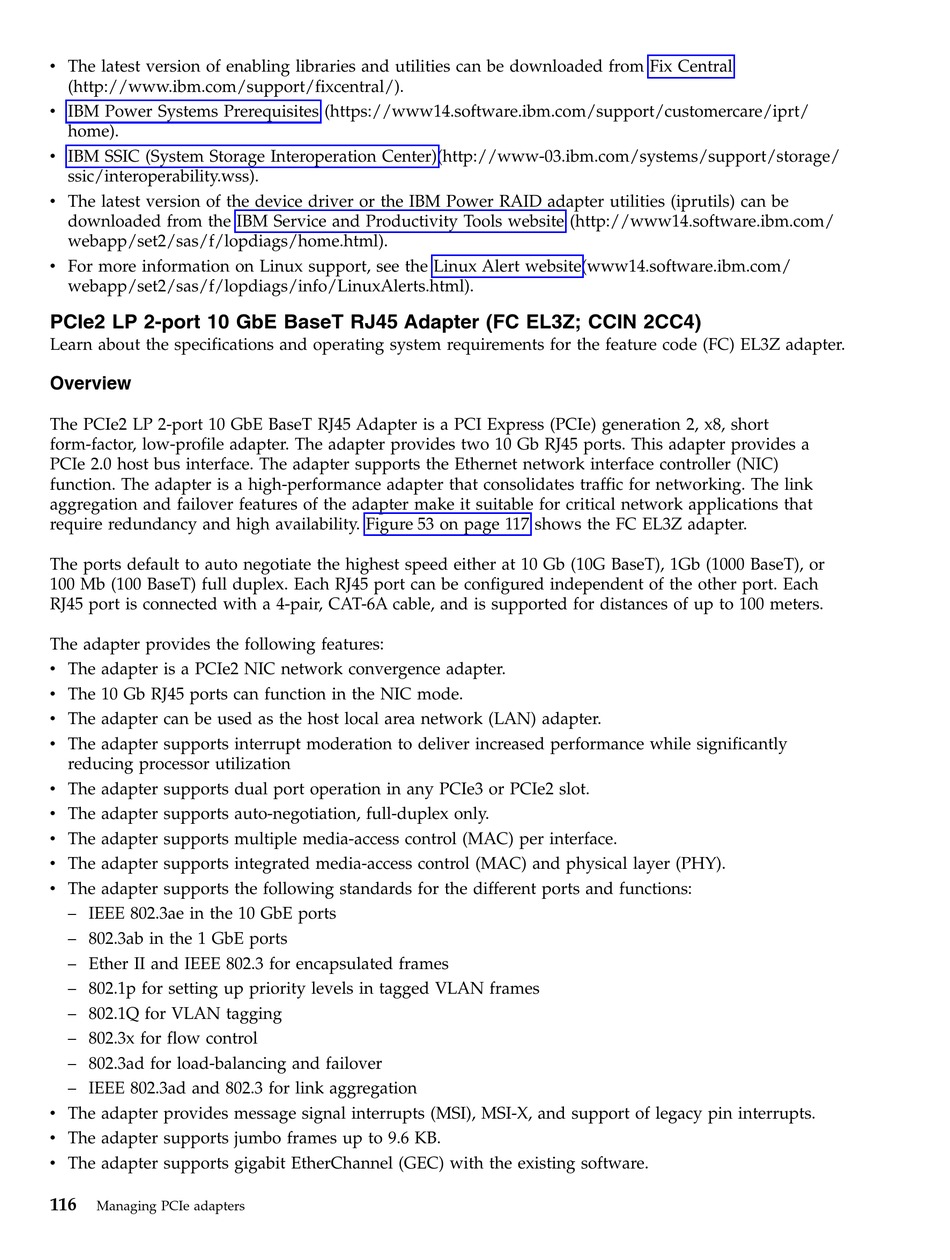

PCIe2 LP 2-port 10 GbE BaseT RJ45 Adapter (FC EL3Z; CCIN 2CC4)

Learn about the specifications and operating system requirements for the feature code (FC) EL3Z adapter.
Overview
The PCIe2 LP 2-port 10 GbE BaseT RJ45 Adapter is a PCI Express (PCIe) generation 2, x8, short
form-factor, low-profile adapter. The adapter provides two 10 Gb RJ45 ports. This adapter provides a
PCIe 2.0 host bus interface. The adapter supports the Ethernet network interface controller (NIC)
function. The adapter is a high-performance adapter that consolidates traffic for networking. The link
aggregation and failover features of the adapter make it suitable for critical network applications that
require redundancy and high availability. Figure 53 on page 117 shows the FC EL3Z adapter.
The ports default to auto negotiate the highest speed either at 10 Gb (10G BaseT), 1Gb (1000 BaseT), or
100 Mb (100 BaseT) full duplex. Each RJ45 port can be configured independent of the other port. Each
RJ45 port is connected with a 4-pair, CAT-6A cable, and is supported for distances of up to 100 meters.
The adapter provides the following features:
v The adapter is a PCIe2 NIC network convergence adapter.
v The 10 Gb RJ45 ports can function in the NIC mode.
v The adapter can be used as the host local area network (LAN) adapter.
v The adapter supports interrupt moderation to deliver increased performance while significantly
reducing processor utilization
v The adapter supports dual port operation in any PCIe3 or PCIe2 slot.
v The adapter supports auto-negotiation, full-duplex only.
v The adapter supports multiple media-access control (MAC) per interface.
v The adapter supports integrated media-access control (MAC) and physical layer (PHY).
v The adapter supports the following standards for the different ports and functions:
– IEEE 802.3ae in the 10 GbE ports
– 802.3ab in the 1 GbE ports
– Ether II and IEEE 802.3 for encapsulated frames
– 802.1p for setting up priority levels in tagged VLAN frames
– 802.1Q for VLAN tagging
– 802.3x for flow control
– 802.3ad for load-balancing and failover
– IEEE 802.3ad and 802.3 for link aggregation
v The adapter provides message signal interrupts (MSI), MSI-X, and support of legacy pin interrupts.
v The adapter supports jumbo frames up to 9.6 KB.
v The adapter supports gigabit EtherChannel (GEC) with the existing software.
