1.2.2 Mounting
Procedure
Before mounting the unit, lay cables, fabricate connectors and establish the ground system.
Then, mount the unit as follows.
Note:Do not install the communication unit on a bulkhead because of its weight.
1. Fix the arms at both sides of the equipment to the mounting location with four tapping
screws (5x20, supplied as installation materials). The tapping screws should be fastened
loosely.
2. Slide the equipment away, and then fasten tapping screws tightly.
MSD(9.6k)
PRINTER
HSD(56k/64k)
JUNCTION BOX
PRINTER
ANT DGPS

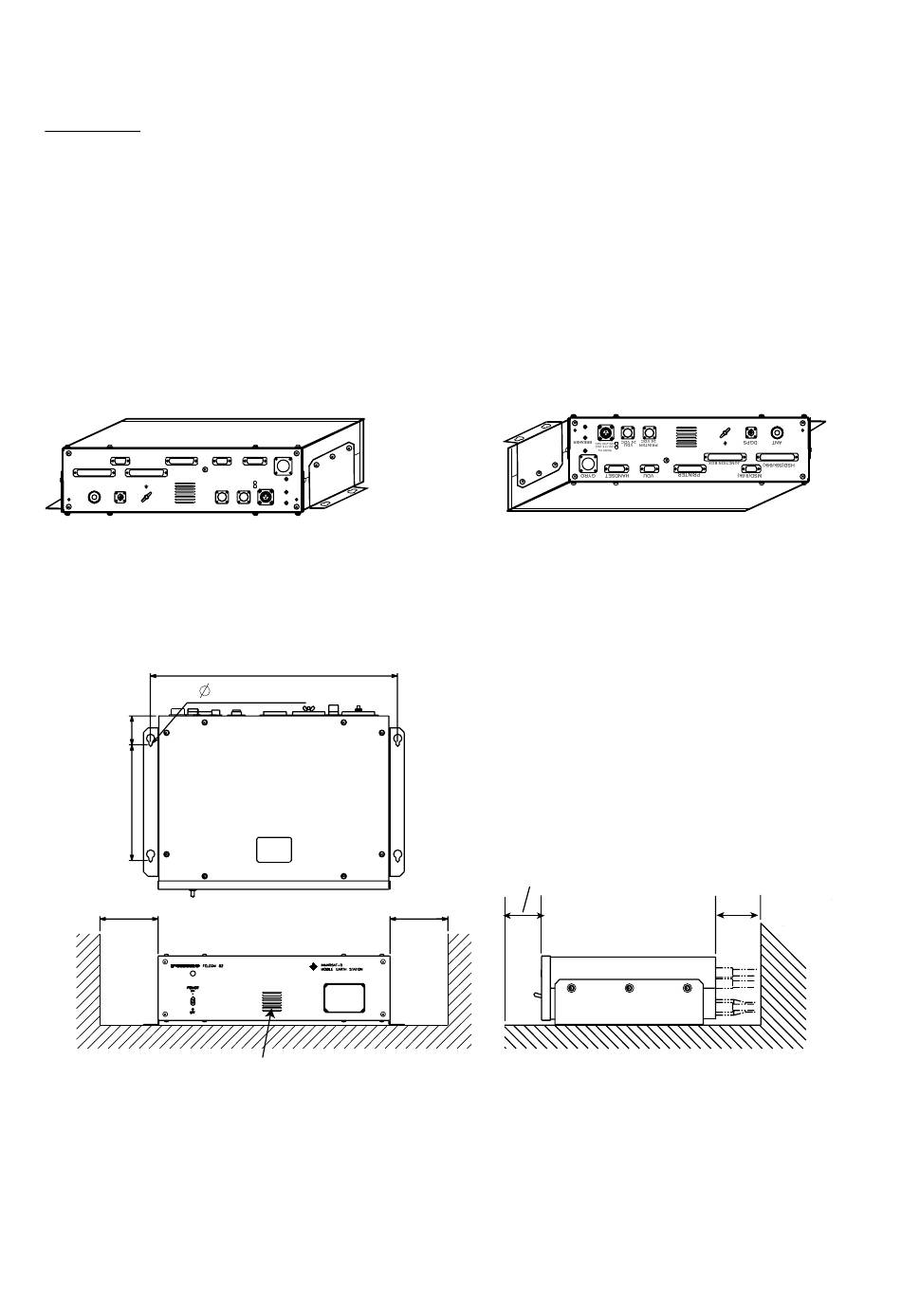

Table top mounting
4- 6 Fixing Hole
50
200±0.5
#100
VDU HANDSET GYRO
50/60 Hz
100-115 VAC
VDU
220-230 VAC
24 VDC 24 VDC BREAKER
426±0.5
Air vent
Mounting dimensions for the communication unit
Mounting on underside of table
#: Service Space
#150
(required for air vent)
#100
10
#150
