ILite rental display
Installation manual
R5976189/04
16/09/2005

Advertisement

Table of Contents
loading

Related Manuals for Barco ILite

Summary of Contents for Barco ILite

  • Page 1 ILite rental display Installation manual R5976189/04 16/09/2005...
  • Page 2 Barco nv Events Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: events@barco.com Visit us at the web: www.barco.com Printed in Belgium...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    10.5 Field replacement of an ILite tile mounted in a second generation rental structure ......
  • Page 6 Index........................105 R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 7: Safety

    Read this chapter attentively. It contains important information to prevent personal injury while installing an ILite rental display. Furthermore, it includes several cautions to prevent damage to the ILite tile. Ensure that you understand and follow all safety guide- lines, safety instructions and warnings mentioned in this chapter before installing the ILite rental display. After this chapter, additional “warnings”...

  • Page 8: Safety Guidelines

    Structural & mounting components should be kept dry, clean, lubricated (only if recommended), coated properly, and otherwise maintained in a manner consistent with part design. Barco products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the load handling capability of the part.

  • Page 9: Important Safety Instructions

    • Use only with systems or peripherals specified by the manufacturer, or sold with the apparatus. Use caution during lifting/moving or transporting to avoid damage by possible tipping. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 10: Important Warnings

    ESD and LED’s: LED components used in ILite devices are ESD (Electro-Static Discharge) sensitive. To prevent the possibility of destroying LED components do not touch either in operation or while switched off. Risk of electric shock / Risk of fire: To protect against risk of fire by overloading of power cables, MAXIMUM 6 TILES may be connected in parallel.

  • Page 11: Important Warnings Concerning Flight Cases

    1. Safety 1.4 Important warnings concerning flight cases Important warnings concerning stack and transport ILite rental flight cases for 6 rental tiles • Maximum stack two (2) ILite rental flight cases high. Never higher. • Surface on which flight case is standing must be level to ensure that the total load is evenly spread out among the four wheels.
  • Page 12 1. Safety R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 13: Installation Requirements

    2. Installation requirements 2. INSTALLATION REQUIREMENTS Overview • Installation requirements for the ILite rental display • System requirements for the control software R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 14: Installation Requirements For The Ilite Rental Display

    Do not underestimate the weight of a complete ILite rental display. Be sure that the floor or truss installation on which the ILite rental display has to be installed is capable of handling five (5) times the complete load of the display. Note that one ILite rental tile weights approximately 15 kg (or 75 kg per square meter display).

  • Page 15: System Requirements For The Control Software

    Hardware PC Pentium IV or equivalent, 2.4 GHz 512 Mb RAM 300 Mb hard disk free space SXGA resolution (1280 x 1024) with 32 Mb video memory Serial communication port • Software Windows XP Professional R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 16 2. Installation requirements R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 17: System Overview

    3. System overview 3. SYSTEM OVERVIEW About this chapter This chapter enumerates the fundamental elements of an ILite rental display system. Overview • Introduction R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 18: Introduction

    3.1 Introduction The fundamental elements of an ILite rental display system are: • ILite tiles. • ILite rental structures. • ILite rental feet, foot beams and stacker or ILite rental truss beams • Rental power box. • Digitizer. • Control software.

  • Page 19: Components Of An Ilite Rental Tile

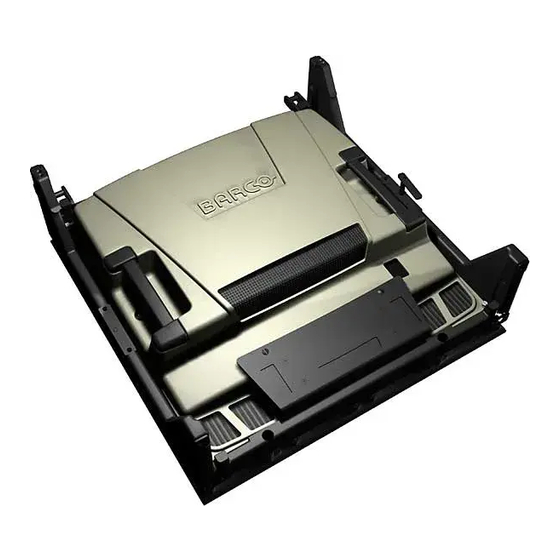

    General introduction The ILite rental tile has a rugged rental frame wherein an ILite tile fits. The frames can easily be attached with each other without tools. The same rental frames are used either for truss or base stand configuration. The following chapters describe and illustrate these two main components (ILite tile and rental frame) more in detail.

  • Page 20: Ilite Rental Frame

    The top of the ILite rental frame is equipped with two identical locking mechanism which ensure a fast and secure attachment between the upper and lower tile, no tools required. The rear right side of the ILite rental frame is equipped with a small handle which operates the side locking mechanism to secure the rental tile sideways with the neighboring tile.
  • Page 21 4. Components of an ILite rental tile Parts location of vertical locking mechanism Image 4-3 Positioning pin. Latch. Safety clamp. Tilt clip. Row lever. Latch receiver. G Safety clamp receiver. Parts location of horizontal locking mechanism Image 4-4 Receiver for side locking mechanism.
  • Page 22 4. Components of an ILite rental tile Handle for operating side locking mechanism. Side latch hook. Side positioning pin. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 23: Ilite Tile

    Functionality All tiles in an ILite display are connected in series via a data path. The physical location of a tile in the data path does not matter because within the ILite display all tiles are equal. But the data path must be created in a daisy chain matter. Each tile picks out a part of the video information of the data stream on the data path and process this information for displaying on its LED’s.
  • Page 24 4. Components of an ILite rental tile Image 4-8 Image 4-9 Image 4-7 Power split cable (R9851130). DVI-DVI data cable of 0,9 meter (R9851211). A : Power input (C14 socket). R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 25: Ilite Rental Peripherals And Accessories

    5. ILite rental peripherals and accessories 5. ILITE RENTAL PERIPHERALS AND ACCESSORIES About this chapter This chapter describes, or refer to another manual, all the peripherals and accessories, which can be used in the setup of an ILite rental display. Overview •...

  • Page 26: Ilite Rental Flight Case

    Dimensions of optimal stored ILite flight cases. Next to the rental flight case for six ILite rental tiles, there is also a flight case available for a single rental tile. This flight case can be very useful for chipping a single rental tile to factory for repair or maintenance purposes.
  • Page 27 5. ILite rental peripherals and accessories Parts location of the ILite rental flight case for six tiles Image 5-5 Carrying handle. Stacking dish. Cover locking clamp. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 28: Ilite Rental Base Stand Setup Accessories

    Two sizes of ILite rental feet are available. Namely the “ILite dual rental foot” and the “ILite triple rental foot”. The dual rental foot covers a width of two ILite tiles and the triple rental foot covers three tiles. The ILite rental foot has the same locking mechanism as the ILite rental frames.

  • Page 29: Ilite Rental Truss Setup Accessories

    ILite truss beams are required to set up an ILite rental display in a hanging configuration. Barco offers two sizes of ILite truss beams, namely the “ILite dual truss beam” and the “ILite triple truss beam”. The dual truss beam covers a width of two ILite tiles and the triple truss beam covers three tiles.

  • Page 30: Power Boxes

    General Depending on the size of the ILite display system, the power system has to be adapted. Therefore several sizes of power boxes are available. For small and medium size ILite display systems the “Mono Phase Power Box” is used. For larger ILite display systems there is a range of “Custom Power Boxes”.

  • Page 31: Digitizer

    5. ILite rental peripherals and accessories 5.5 Digitizer General The digitizer processes (image processing, conversion and conditioning) all source signals for digital distribution to every tile. The digitizer may be accessed directly or via the control software (e.g. Director toolset). This software is designed as a user interface to be used in conjunction with the digitizer and display, this can be used when connected to the digitizer through a serial RS232 connection.

  • Page 32: Fiberlink System

    The data signal coming out of the digitizer is transported from the digitizer to the display by a high-speed data link. To send such a high density stream of data over long distances, a fiber optic cable is required. Barco offers a complete system: a transmitter, a cable and a receiver.

  • Page 33: Control Software

    The control software is designed as a graphic user interface (GUI) and can be used to control and configure the digitizer as well as the Barco LED wall via a PC (e.g. Director toolset). For more information refer to the manual of the control software.
  • Page 34 5. ILite rental peripherals and accessories R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 35: Setup Process Of An Ilite Rental Display

    Floor mount or hanging ILite rental display The ILite rental tiles can be used in a floor mount or in a hanging rental configuration. These configurations are limited in height, maximum 12 tiles high in case of a floor mount (base stand) configuration and maximum 15 tiles high in case of a hanging (truss) configuration.

  • Page 36: Set Up A Floor Mounted Ilite Rental Display

    Installation of the rental feet upon the foot beams. See procedure "Install the ILite rental feet without stacker foot", page 39, for a display with a maximum height of 6 tiles or see procedure "Install the ILite rental feet with stacker foot", page 41, in case the display will be higher then 6 tiles.
  • Page 37 Image 6-3 6. The next stage is the power and data cabling of the ILite rental display. See chapter "Cabling of an ILite display", page 67. Warning: To protect against risk of fire by overloading of power cables, the amount of ILite rental tiles per power source cable is limited.

  • Page 38: Set Up A Hanging Ilite Rental Display

    60. Image 6-5 3. The next stage is the installation of the remaining ILite rental tiles row by row. See procedure "Install a row of ILite rental tiles into a hanging configuration", page 62. Warning: The maximum height of a hanging ILite rental display is 15 tiles high.
  • Page 39 7. Installation of the control software for the ILite rental display. See installation procedure described in the manual of the control software. 8. Energize the ILite rental display and start up the control software. For more information about showing content on the ILite display see manual of the control software.
  • Page 40 6. Setup process of an ILite rental display R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 41: Basic Setup Procedures

    This chapter contains all installation procedures necessary to set up an ILite rental display. These procedures describe, with detailed step by step actions and illustrations, how to install an ILite rental display in a floor mount or hanging configuration. Some of the procedures are redundant either for a floor mount or for a hanging configuration.

  • Page 42: Install An Adjustable Foot

    6. Adjust the height of the adjustable feet in order to make the cross beam spirit level. 7. Place supporting blocks underneath the beam every 50 centimeters. This to prevent that the beam bend. Caution: Never let the complete weight of the rental display rest on the adjustable foot. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 43: Install The Ilite Rental Feet Without Stacker Foot

    Install the optional adjustable feet before installing the rental feet. The adjustable feet will make it easier to level out the foot beams. The procedure below describes how to install two ILite dual rental feet upon foot beams. The same procedure is applicable for the ILite triple rental feet.
  • Page 44 7. Basic setup procedures X > y Image 7-2 5. Create as much foot assemblies as required for your ILite display. 6. Place the foot assemblies with the positioning plates (Q) and pins (P) against each other on their final position. Image 7-3 7.

  • Page 45: Install The Ilite Rental Feet With Stacker Foot

    • Shim plates. How to install the ILite rental feet with stacker foot ? 1. Place two foot beams (B) parallel on a flat surface per rental foot. 2. Slide the rental foot base rails (A) into the slots of the foot beams.
  • Page 46 5. Level out the foot beams. If necessary place every 50 centimeters shim plates underneath the foot beams. This to prevent that the beams bend. 6. Firmly attach the foot assemblies to the floor with fixings, or ballast, or both as required. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 47: Install The Ilite Rental Foot Alignment Tool

    One bolt (M12 x 25) per stacker foot. • Three bolts (M12 x 16) per stacker foot. How to install the ILite rental foot alignment tool ? 1. Place a rental foot spacer plate (F) upon two neighboring foot beams as illustrated. Image 7-6 2.
  • Page 48 5. Turn the adjustment plate (H) away from the remaining free mounting hole of the base rail and insert a long bolt (G) M12 x 25 into the mounting hole. 6. Turn the adjustment plate as far as possible towards the long bolt. Image 7-8 R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 49 7. Basic setup procedures The same procedure is applicable incase the rental feet were installed in combination with stacker feet. Image 7-9 R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 50: Align And Level The Ilite Rental Feet

    Image 7-11 3. Place a spirit level upon the positioning pins of the first ILite rental foot and level out the first ILite rental foot in longitudinal direction. There are 3 different possibilities to adjust the height of the rental foot: A : adjust the adjustable foot installed at the end of the foot beams.
  • Page 51 5. Align the top of the positioning pins of the neighboring ILite rental foot with the top of the positioning pins of the previous leveled ILite rental foot. Use a spirit level (or ruler) of at least 100 cm and ensure that the spirit level captures at least 6 positioning pins.
  • Page 52 7. Basic setup procedures Image 7-15 8. Repeat this procedure until you don’t need to adjust no more. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 53: Install The First Row Of Ilite Tiles Upon Ilite Rental Feet

    (6) tiles. How to install the first row of ILite tiles upon ILite rental feet ? 1. Place the first rental tile upon the rental feet at the most right side, seen from the rear, as illustrated. The positioning pins of the rental foot must fit into the positioning holes at the bottom of the rental tile.
  • Page 54 6. Repeat step 4 and 5 until the first row of rental tiles are placed and secured upon the rental feet. 7. Close all row levers of all rental feet. Note: While closing all row levers, the slightly tilt of the tiles described in step 2 will disappear. R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 55 After the first row of rental tiles is installed and secured upon the rental feet, you can continue with installing the next rows of rental tiles into this base stand configuration. See chapter "Install a row of ILite rental tiles into a base stand configuration", page 52.

  • Page 56: Install A Row Of Ilite Rental Tiles Into A Base Stand Configuration

    This procedure describes how to install a row of ILite rental tiles in order to build a flour mounted ILite display. The ILite rental feet and the first row of ILite tiles has to be installed upon the rental feet before starting with this procedure.
  • Page 57 5. Release the two latches, of the rental tile below, by sliding the tilt clip away from the latch. Ensure that each latch is completely hooked over the latch receiver. It’s now safe to release the ILite rental tile. Image 7-25 6.
  • Page 58 7. Repeat from step 2 until all tiles of this new row are placed. 8. Close all row levers of all rental tiles of the last installed row. Note: While closing all row levers, the slightly tilt of the tiles described in step 4 will disappear. Image 7-27 R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 59: Install An Ilite Stacker Profile

    ILite rental feet with stacker foot", page 41. This procedure describes how to install an ILite stacker profile upon a stacker foot after 4 rows of ILite rental tiles are built. The same procedure can be used to install a stacker profile upon the previous installed stacker profile after completing row 7 and row 10.
  • Page 60 Ensure that the stacker profile is captured by all 6 stacker mushrooms. Image 7-30 3. Secure the stacker profile by inserting a locking key at the bottom of the stacker profile. See image 7-29. 4. Insert a spring cotter into each pin of the locking key. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 61: Install The Ilite Truss Beam Upon Ilite Rental Tiles

    1. Connect the hoist eyebolt of the truss beam with the crane of the truss installation. Warning: Ensure that the truss installation is able to support the complete load of the ILite rental display, which you want to set 2. Place three rental tiles, in case of using a triple truss beam, or two rental tiles, in case of using a dual truss beam, next to each other underneath the truss installation.
  • Page 62 6. Close the safety clamps of all rental tiles as illustrated. Image 7-35 7. Release the latches of all rental tiles, by sliding the tilt clip away from the latch. Ensure that each latch is completely hooked over the latch receiver of the truss beam. R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 63 7. Basic setup procedures Image 7-36 8. Close all row levers of all rental tiles. Image 7-37 9. Lift up the truss beam with the rental tiles at shoulder height. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 64: Join Two Ilite Truss Beams Together

    7. Basic setup procedures 7.10 Join two ILite truss beams together First attach one row of ILite rental tiles with the ILite truss beams before joining ILite truss beams together. Necessary tools 10 mm Allen key. How to join two truss beams together ? 1.
  • Page 65 After all truss beams are joined with each other you can proceed with installing the remaining ILite rental tiles row by row. After installing one or two rows of ILite rental tiles, realize the data and power cabling for these installed rows, before lifting the rows further up. These rows are now easy accessible from the work floor.

  • Page 66: Install A Row Of Ilite Rental Tiles Into A Hanging Configuration

    7.11 Install a row of ILite rental tiles into a hanging configuration This procedure describes how to install a row of ILite rental tiles in order to build a trussed ILite display. The ILite rental truss beams has to be attached with the first row of ILite tiles before starting with this procedure.
  • Page 67 5. Release the two latches of the rental tile, by sliding the tilt clip away from the latch. Ensure that each latch is completely hooked over the latch receiver of the tile above. It’s now safe to release the ILite rental tile.
  • Page 68 7. Repeat from step 2 until all tiles of this new row are placed. 8. Close all row levers of all rental tiles of the last installed row. Note: While closing all row levers, the slightly tilt of the tiles described in step 4 will disappear. Image 7-49 R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 69: Secure A Hanging Ilite Rental Display

    1. Lift up the ILite rental display to the desired height. 2. Place a safety steel cable or chain (B) around the truss installation above the ILite display and around the safety rod of the truss beam. Use one safety steel cable or chain per safety rod.
  • Page 70 7. Basic setup procedures R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 71: Cabling Of An Ilite Display

    8. Cabling of an ILite display 8. CABLING OF AN ILITE DISPLAY Overview • ILite tile connectivity • Power cabling of an ILite display • Data cabling of an ILite display R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 72: Ilite Tile Connectivity

    The power input connector consist of a C14 socket type. Barco provides ILite power split cables, which subdivide power from the power source to the ILite tile. One power split cable is required per ILite tile. The power split cable has a C13 plug (B), which fits directly into the power port of the tile, a C19 plug (C) and a C20 plug (D).

  • Page 73: Power Cabling Of An Ilite Display

    Note: Depending on the type of used power box, a multi power cable in combination with a spider connector is inserted between the power box and the power source cable leading to the power split cable of the first ILite tile. See manual of the used power box to realize the cabling between power box and ILite display.
  • Page 74 Image 8-3 The example above shows the power cabling of an eight by eight ILite display. The rental power box (A) is connected via a multi power cable (B) with a spider connector (C). Each spider output cable leads to a column of 6 ILite tiles. The power connection between the tiles is realized with power split cables (D).

  • Page 75: Data Cabling Of An Ilite Display

    Short data linking cable between tiles. The example above shows the data cabling, seen from the rear, of an ILite display of eight tiles width and eight tiles high. The data path is realized in horizontal direction and starts in the lower left corner, seen from the rear. The settings in the control software refer to the display seen from the front.
  • Page 76 8. Cabling of an ILite display R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 77: Maintenance

    9. Maintenance 9. MAINTENANCE About this chapter This chapter contains some maintenance information about the ILite rental tile, which can be performed by the persons who do the installation. Overview • Cleaning the outside of the ILite display • Software update •...

  • Page 78: Cleaning The Outside Of The Ilite Display

    Do not use the vacuum cleaner to clean the display side (LED’s), because of ESD reason. 5. Clean the housing of the ILite display with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution.

  • Page 79: Software Update

    On the FPGA of the controller unit : firmware controller (B). On the FPGA of the LED driver (or second FPGA on the controller unit in case of ILite XP versions) : firmware driver (C). On the CPU of the controller unit : program and boot software (µP).

  • Page 80: Color Calibration

    To achieve color uniformity among all tiles of the same display the tiles has to be color calibrated. This is done in factory but due to service intervention like replacing ILite tiles in the display it’s recommended to re-calibrate the ILite display on site. Refer to the user guide of the Director toolset for more info about color calibration and calibration instructions.

  • Page 81: Servicing

    • Replacement of the ILite re-sync unit • Field replacement of an ILite tile mounted in a first generation rental structure • Field replacement of an ILite tile mounted in a second generation rental structure R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 82: Safety Instructions

    No other parts than Barco parts are allowed. • Both hands must be free for servicing ILite tiles in a LED-wall. Therefore the use of a ladder to access a tile is forbidden. Only the use of a scaffold or a Z-lift is allowed.

  • Page 83: Ilite Tile Diagnostic

    Status LED’s re-sync unit The re-sync unit of the ILite tile is provided with tree status LED’s. One green and two red LED’s. The LED’s are horizontally mounted with the green LED in the middle. The green LED light up indicating the SMPS is started and the re-sync unit is operating normally.

  • Page 84: Replacement Of The Ilite Re-Sync Unit

    10.3 Replacement of the ILite re-sync unit Necessary tools Slot screwdriver (100 x 4 mm). How to replace the re-sync unit of an ILite tile ? 1. Release the two captive screws of the re-sync unit (M) using a slot screwdriver. Image 10-2 2.

  • Page 85: Field Replacement Of An Ilite Tile Mounted In A First Generation Rental Structure

    If no, unplug the data cables from the data ports of the re-sync unit. 4. Remove the two nuts at the rear top and the two bolts at the rear bottom of the ILite rental tile as illustrated. Use a 10 mm nut driver.
  • Page 86 If possible, someone who is standing at the front of the LED-wall can handle over the tile to you. 7. Fasten the ILite tile with the rental frame. Use two nuts at the rear top and two bolts at the rear bottom. See image 10-3.

  • Page 87: Field Replacement Of An Ilite Tile Mounted In A Second Generation Rental Structure

    4. Remove the four nuts (Q) from the black fixation pins at the back of the ILite rental tile. Caution: Hold the ILite tile firmly by one of the carrying handles to prevent the tile falls out of the LED-wall. Image 10-5 5.
  • Page 88 7. Place a nut (Q) on each fixation pin of the tile as illustrated. Do not fasten the nuts yet. Leave roughly 1 mm space between nut and rental structure, so that the tile can float a little bit within the rental structure. Q (x4) Image 10-8 R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 89 10.Did you perform a “hot swap” in step 3 ? If yes, reinstall the re-sync unit. If no, reconnect the data cables with the data ports of the re-sync unit. 11. Plug the power cable into the power socket of the ILite tile. R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 90 10. Servicing R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 91: Dimensions

    A. Dimensions A. DIMENSIONS About this chapter This chapter contains mechanical drawings of the ILite rental tile and ILite accessories with the most important dimensions. Overview • Dimensions of an ILite rental tile • Dimensions of an ILite rental foot •...

  • Page 92: Dimensions Of An Ilite Rental Tile

    A. Dimensions A.1 Dimensions of an ILite rental tile Dimensions 150,05 452,3 146,8 Image A-1 Dimensions given in millimeters. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 93: Dimensions Of An Ilite Rental Foot

    A. Dimensions A.2 Dimensions of an ILite rental foot Dimensions of an dual rental foot 634,2 901,3 Image A-2 Dimensions given in millimeters. Dimensions of an triple rental foot 1082,2 1349,5 1152 Image A-3 Dimensions given in millimeters. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 94: Dimensions Of An Ilite Stacker System

    A. Dimensions A.3 Dimensions of an ILite stacker system Dimensions of an stacker foot 180,5 13,5 Image A-4 Dimensions given in millimeters. Dimensions of an stacker profile 1383,8 Image A-5 Dimensions given in millimeters. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 95: Dimensions Of An Ilite Truss Beam

    A. Dimensions A.4 Dimensions of an ILite truss beam Dimensions of an dual truss beam Image A-6 Dimensions given in millimeters. Dimensions of an triple truss beam 1344 Image A-7 Dimensions given in millimeters. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 96: Dimensions Of An Ilite Flight Case

    A. Dimensions A.5 Dimensions of an ILite flight case Dimensions of an flight case for 6 ILite rental tiles 1200 Image A-8 Dimensions given in millimeters. R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 97: Specifications

    • ILite 8 specifications • ILite 10 specifications • Weight of individual parts of an ILite rental display • Ballast values for a base stand ILite rental display • Ground pressure of a base stand ILite display R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 98: Ilite 6 Xp Specifications

    B. Specifications B.1 ILite 6 XP specifications Specifications Pixel pitch 6 mm Brightness 2500 NIT Calibrated Brightness 2000 NIT (calibrated at 6500°K) LED configuration 3-in-1 SMD Pixel density 25.920/m² (2410/ft²) 5.184/tile (72x72) Hor. viewing angle 145° + (min. 50% brightness) Vert.

  • Page 99: Ilite 8 Specifications

    LED configuration 3-in-1 SMD Pixel density 15.680/m² (1.458/ft²) 3.136/tile (56x56) Colors 68,7 billion Refresh rate 400 Hz (PAL/NTSC minimum) Humidity operating: 35 - 85% storage: 10 - 90% Certifications UL - CE - TUV - CEBEC R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 100: Ilite 10 Specifications

    LED configuration 3-in-1 SMD Pixel density 9.680/m² (900/ft²) 1.936/tile (44x44) Colors 68,7 billion Refresh rate 400 Hz (PAL/NTSC minimum) Humidity operating: 35 - 85% storage: 10 - 90% Certifications UL - CE - TUV - CEBEC R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 101: Weight Of Individual Parts Of An Ilite Rental Display

    B. Specifications B.4 Weight of individual parts of an ILite rental display Weight of individual parts ILite tile without rental frame: 4,8 kg. 14,3 kg. ILite tile with rental frame: Dual truss beam: 17,7 kg. Triple truss beam: 24,5 kg.

  • Page 102: Ballast Values For A Base Stand Ilite Rental Display

    For more information consult the “Ballast calculator” tool, available on Barco’s web site. The ballast values are given per ILite rental foot mounted upon two foot beams. Ballast must be placed upon the last 30 cm of the foot beams.
  • Page 103 B. Specifications Position ILite display upon foot beams for minimum ballast Dual ILite rental foot Height Used foot beam Beam length in front of display Minimum ballast (kg) Tiles 2,4 meter > 0,64 meter (maximum 1,2 meter) 1,2 meter > 0,59 meter (maximum 0,6 meter) 1,2 meter >...

  • Page 104: Ground Pressure Of A Base Stand Ilite Display

    For more information consult the “Ballast calculator” tool, available on Barco’s web site. The ballast values are given per ILite rental foot mounted upon two foot beams. Ballast must be placed upon the last 30 cm of the foot beams.
  • Page 105 1,2 meter foot beams 2,4 meter foot beams 4 meter foot beams Height kg/cm² N/mm² kg/cm² N/mm² kg/cm² N/mm² Tiles 0.4411 0.0432 0.1711 0.0167 0.0919 0.0090 0.4991 0.0489 0.1913 0.0187 0.1021 0.0100 0.5602 0.0549 0.2123 0.0208 0.1125 0.0110 R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 106 B. Specifications R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 107: Order Info

    C. Order info C. ORDER INFO About this chapter This chapter contains the order numbers of all available ILite spare parts. Overview • Spare part order info R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 108: Spare Part Order Info

    Flight case for 1 ILite rental tile (empty). R9850790 Flight case for 6 ILite rental tiles (empty). R9855520 Calibration tool for second generation ILite rental structures. R9855521 10 shim plates of 0,4 mm for field replacement of an ILite tile (second generation). R5976189 ILITE RENTAL DISPLAY 16/09/2005...

  • Page 109: Index

    6–7 Truss configuration Flight case Servicing 77–79 Install 38–39, 41, 43, 49, 52, 57, 62 Diagnostic Adjustable foot Safety Alignment tool Set up 32, 34 First row Floor mount Rental feet 39, 41 Hanging display R5976189 ILITE RENTAL DISPLAY 16/09/2005...
  • Page 110 System requirements Accessories Specifications 93–96 Secure ILite 10 Truss beam 57, 60, 91 ILite 6XP Dimensions ILite 8 Install Stacker foot Join together Dimensions Stacker profile 55, 90 Dimensions Install Weight System overview Tile 79, 81 R5976189 ILITE RENTAL DISPLAY 16/09/2005...
