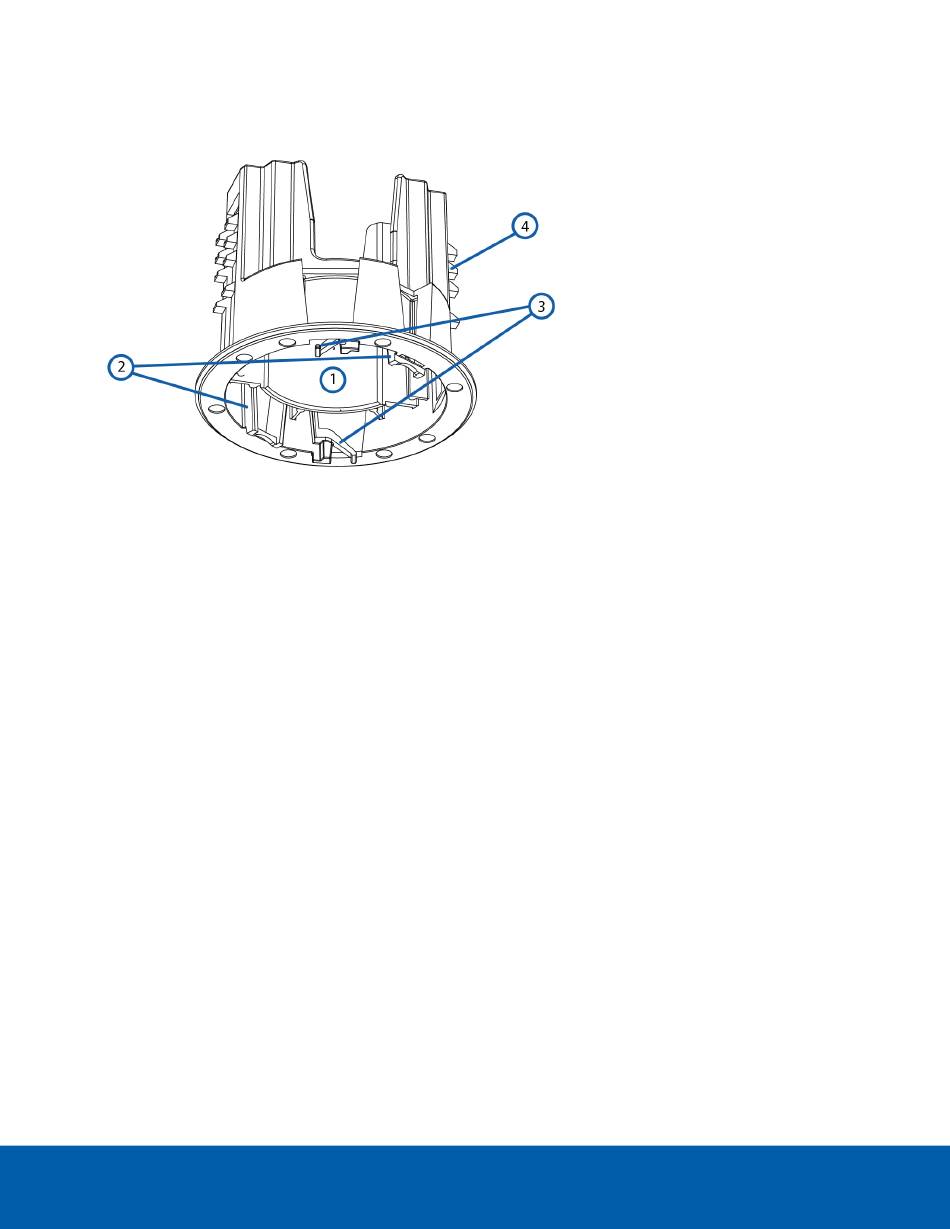

In-ceiling Mounting Adapter View
1. Cable entry hole
An entry hole for the cables required for camera operation.
2. Camera attachment slots
Slots that the camera housing clips are inserted into to attach the camera body to the ceiling
mounting adapter.
3. Bezel attachment clips
Clips to hold the bezel in place.
4. Mounting clamps (not shown)
Metal springs with plastic tabs that extend outward to hold the in-ceiling mounting adapter in place.
In-ceiling Mounting Adapter View
7
