Installing The Camera Base To The Mounting Adapter - Motorola Avigilon H4M-MT-DCIL Installation Manual

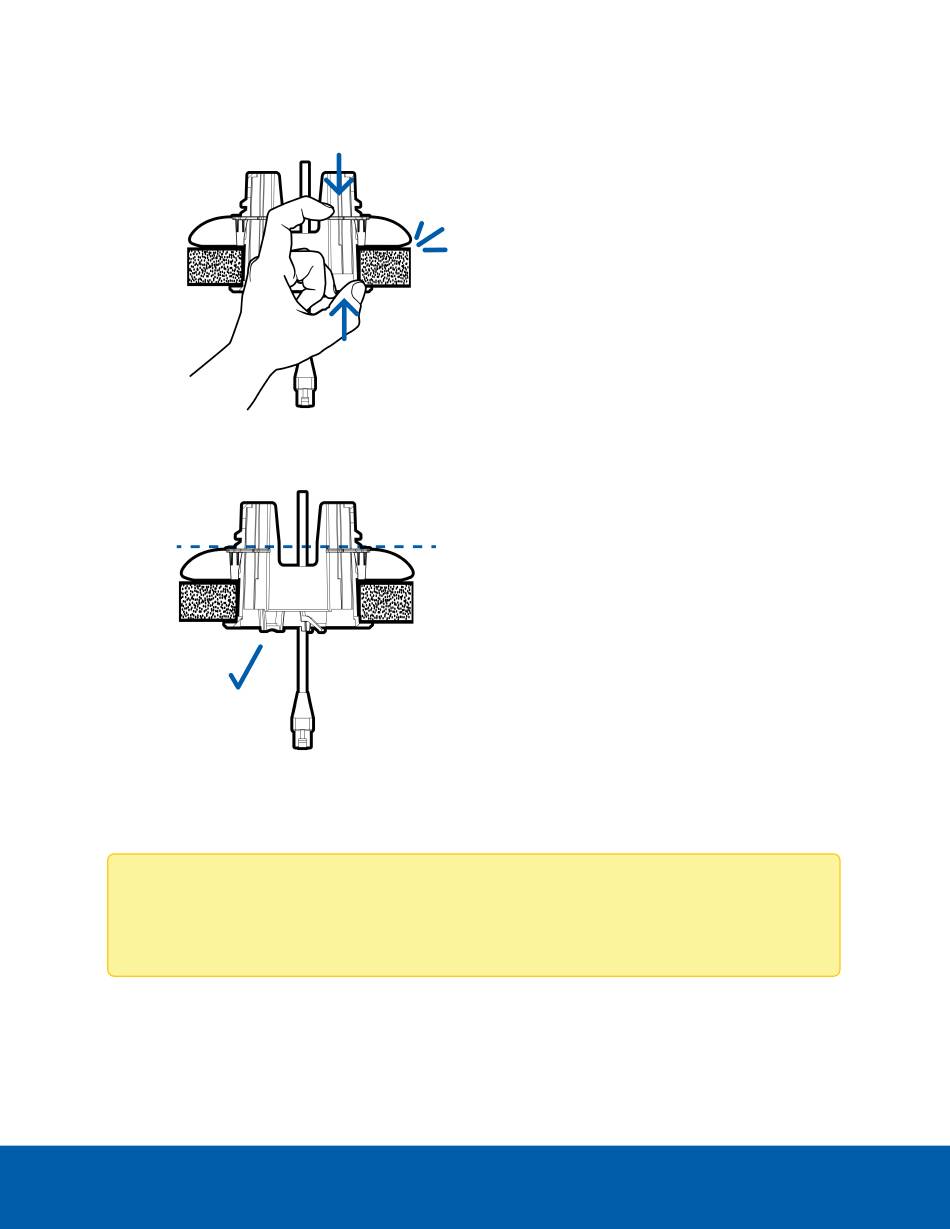

5. With your thumb on the outside edge of the mounting adapter and your forefinger on one of the
orange clamp handles, pinch the clamp down until the clamp is secured.
6. Repeat the previous step on the other side. Make sure both clamps are level and horizontal.

Installing the Camera Base to the Mounting Adapter

Note: Be careful not to scratch or touch the dome bubble. The resulting marks or fingerprints may
affect the overall image quality. Keep the protective covers on the outside of the dome bubble
until the installation is complete.
After you install the mounting adapter, mount the camera base to the adapter, using the following steps:
1. Connect the Ethernet port attached to the camera to the Ethernet cable that was pulled through the
Installing the Camera Base to the Mounting Adapter 13
