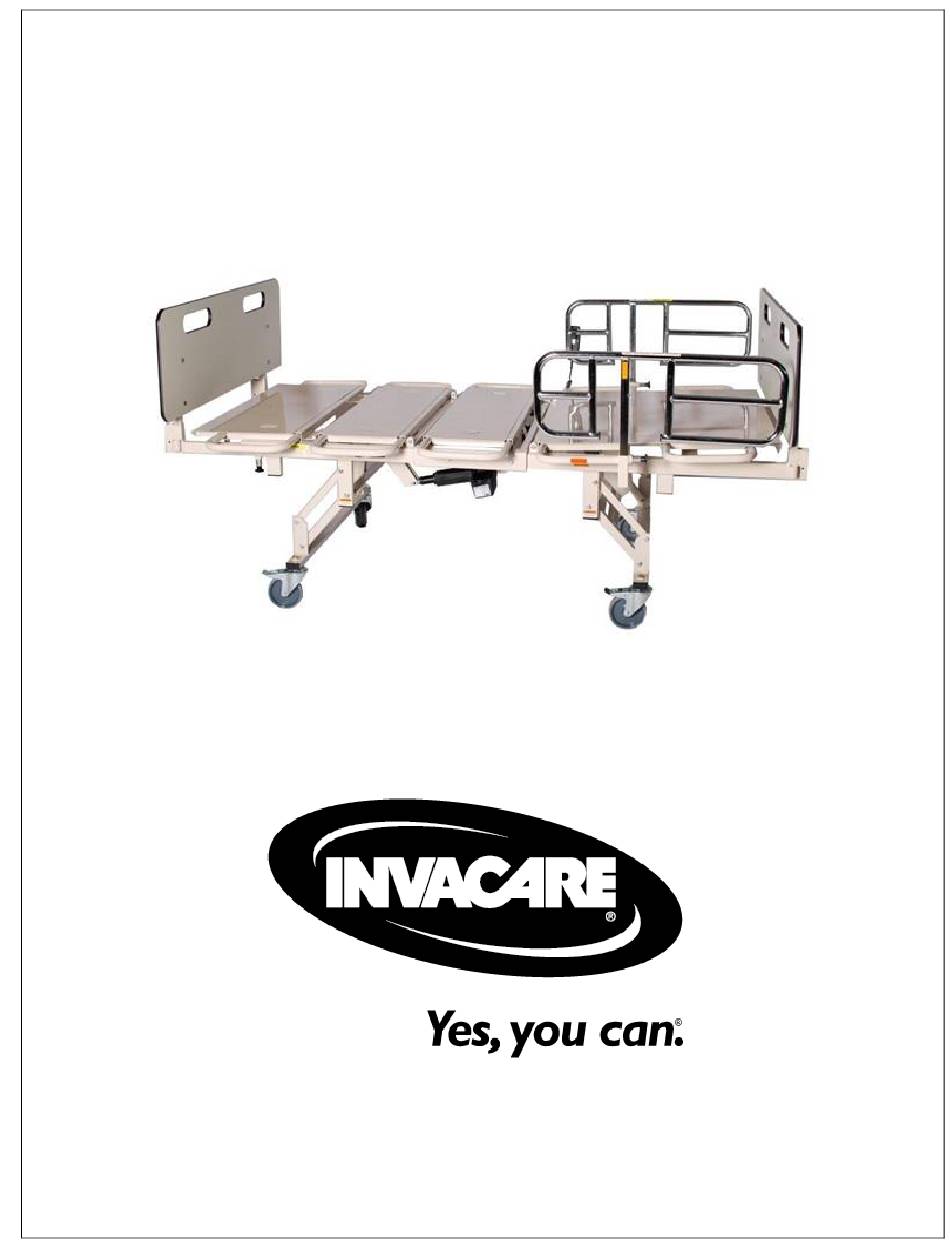

Invacare® Bariatric Bed
Model BAR750
User Manual
This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read
and saved for future reference.
©2018 Invacare Corporation
All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are
identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
Making Life's Experiences Possible is a registered trademark in the U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Invacare BAR750

Summary of Contents for Invacare BAR750

  • Page 1 ©2018 Invacare Corporation All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.

  • Page 2: Table Of Contents

    BAR750 Contents Parts Locator ........................ 2 Safety Notes ......................... 3 Signal Words ..................................3 General Guidelines ................................4 Disposal ................................... 11 Intended Use ......................12 Unpacking and Setup Instructions ................13 Receiving..................................13 Unpacking ..................................13 Inspecting ..................................14 Assembling the Bed ..............................14 Assembly Instructions ....................

  • Page 3: Parts Locator

    BAR750 Parts Locator Parts Locations Label Locations The same labels are located on the opposite side of the bed.

  • Page 4: Safety Notes

    Risk of Injury or Damage Patients that weigh less than 350 pounds have an increased risk of entrapment. To avoid injury or damage from entrapment: Patients that weigh less than 350 pounds should not use the – BAR750 Bariatric Bed.

  • Page 5: General Guidelines

    DANGER! Risk of Death, Injury or Damage Bed accessories designed by other manufacturers have NOT been tested by Invacare. Use of non-Invacare bed accessories may result in injury or death. Use ONLY Invacare rails, mattresses, bed extenders and other –...
  • Page 6 BAR750 DANGER! Risk of Death, Injury or Damage To reduce the risk of shock: Unplug from the outlet before servicing. – Close supervision is necessary when the product is used by, or – near children and/or disabled persons. Use this product only for its intended use as described in these –...
  • Page 7 BAR750 WARNING! Risk of Injury or Damage To avoid injury or damage when operating/moving bed: ALWAYS ensure that the individual utilizing the bed is – positioned properly within the confines of the bed. DO NOT let any extremities protrude over the side or between the bed rails when performing these functions.
  • Page 8 Risk of Death, Injury or Damage Patient entrapment from the use of bed side rails may cause injury or death. To avoid patient entrapment: The Invacare mattress MUST fit firmly against the bed frame – AND bed side rails to prevent patient entrapment. Follow the manufacturer’s instructions.
  • Page 9 DANGER! Risk of Injury or Adverse Health Consequences Fall hazards exist due to the use of non-Invacare mattresses. Non- Invacare mattresses are potentially incompatible with Invacare beds. To avoid injury, ensure that only Invacare mattresses are used –...
  • Page 10 Patient entrapment from the use of bed side rails may cause injury – or death. The Invacare mattress MUST fit firmly against the bed frame AND bed side rails to prevent patient entrapment. Follow the manufacturer’s instructions. Monitor patient frequently. Read and understand the User Manual prior to using this equipment.
  • Page 11 DO NOT, under any circumstances, cut or remove the round grounding prong from any plug used with or for Invacare products. Junction box MUST be securely connected to the bed with –...

  • Page 12: Disposal

    (landfills) that are not appropriate according to legislation. Please be environmentally responsible and recycle this product through your recycling facility at its end of life. Never disassemble your Bariatric bed. If problems are found, contact INVACARE customer service at 1-800-333-6900 or your local INVACARE provider.

  • Page 13: Intended Use

    BAR750 Intended Use Intended Use To provide mattress support system for articulation of the head and foot sections to provide different positions for the patient. Indications for Use Indicated to provide mattress system for use in home care and long term facilities.

  • Page 14: Unpacking And Setup Instructions

    Make sure to have the truck driver sign the copy acknowledging the count. 4. If shortage occurs, IMMEDIATELY contact Invacare Customer Service department at (800) 333-6900. Unpacking...

  • Page 15: Inspecting

    Inspecting DANGER! Risk of Injury or Damage To avoid injury or damage, inspect the following and contact a qualified technician or Invacare if any of the following issues are present: Pendant covering is cracked or damaged. – Power cord or plug have cuts or damage.
  • Page 16 BAR750 2. Grasp cross bar on head-end section of bed (section packed on top). (see photo 2) Photo 2 3. Pull section and flip section over until wheels touch floor as shown. (see photo 3) Photo 3 4. Grasp back-rest of head-end section and rotate until that section rests on frame portion already on floor.
  • Page 17 BAR750 5. Locate 2 Clevis pins (1 each side of bed) on backrest of head-end section which connect shipping brace to bed. Remove rue ring from clevis pin. Remove clevis pin from bed and packing brace. Repeat for other side (2 total).
  • Page 18 BAR750 8. Remove shipping brace from foot-end bed section. Lift up on frame before pulling shipping brace out. (see photo 8) Photo 8 9. Slide head-end section into foot-end section until side clevis pin holes line up. (see photo 9) Photo 9 10.
  • Page 19 BAR750 11. Insert clevis pin into each side frame hole. Place pin into frame from outside. Secure clevis pin using rue ring on inside of frame. (see photo 11) Photo 11 12. Lift back rest and attach the hi/lo actuator to the bed leg with clevis pin and hairpin clip.
  • Page 20 BAR750 14. Attach the back rest actuator to the back rest with clevis pin and hairpin clip. (see photo 14) Photo 14 15. Grasp the bed from the length extensions and lift the bed up out of the cardboard blocks. Walk the bed off of the pallet and gently set it down on the floor.

  • Page 21: Assembly Instructions

    BAR750 Assembly Instructions 1. The Control Module is located under the bed. The handset plugs into the control module; make sure it is securely fastened. If it becomes necessary to unplug the handset remove plastic retainer strip then gently remove the plug from the control module (page 28).

  • Page 22: Storing The Bed

    If bed is not being assembled immediately, retain the cartons and packaging for storage until ready for assembly. Store the Invacare bed in a dry area. If problems are found, contact Invacare customer service at 800-333-6900 or your Invacare provider.

  • Page 23: Operation

    If any problems arise during the test, recheck all electrical connections and mechanical hook ups and then retest. If the product is not working properly, contact a qualified technician or Invacare for repair. WARNING! Risk of Injury or Damage...
  • Page 24 Pendant malfunction may cause injury or damage. Unplug bed from electrical outlet and contact qualified technician or – Invacare for repair if any malfunction is detected. Entire Bed 1. To raise the entire bed, press the Bed Up button E.

  • Page 25: Steering The Bed

    These bed rails are intended to prevent an individual from – inadvertently rolling out of bed. Do not use for restraint purposes. Use ONLY Invacare rails with Invacare products. – DO NOT use the bed rails as push handles when moving the –...
  • Page 26 Risk of Death, Injury or Adverse Health Consequences Fall hazard exists due to incorrect installation of bed rails. To avoid injury, ensure that the Invacare bed rails are installed – correctly and securely attached to the bed while entering or exiting.
  • Page 27 Risk of Death, Injury or Damage Patient entrapment from the use of bed side rails may cause injury or death. To avoid patient entrapment: The Invacare mattress MUST fit firmly against the bed frame – AND bed side rails to prevent patient entrapment. Follow the manufacturer’s instructions.
  • Page 28 BAR750 Bed Length Extension 1. Pull down release knob A located under the foot end section of the bed. 2. Pull the length extender B out 8” and release the pull knob. Slide the extender in and out slightly until the release knob A locks into place. An audible click will be heard.

  • Page 29: Maintenance

    BAR750 Maintenance Bottom view of bed LINEAR ACTUATORS The bed is equipped with 24V DC Linear Actuators Designed with built in travel limit switches. Each actuator is equipped with quick release pivot pins (3/8” x 2”) on both ends. If disassembled retain pivot pins and hairpin clip.

  • Page 30: Service Life

    Hand Pendants – Casters (tread wear, brake levers) – Invacare reserves the right to ask for any item back that has an alleged defect in workmanship. See the Warranty that shipped with the product for specific warranty information. Cleaning the Bed...

  • Page 31: Maintenance And Cleaning Checklist

    2. Wipe down the bed with disinfectant. Allow it to dry completely. Maintenance and Cleaning Checklist Invacare recommends the following maintenance/cleaning procedures be conducted initially, between users, or as needed. This form is provided as a guide to help with documentation.
  • Page 32 BAR750 Mechanical Inspection and Maintenance Inspect all bed components (i.e. rails, clevis pins, hitch pins, etc.) for damage or excessive  wear and replace as necessary. Visually examine all welds for cracks.  Inspect the head and foot spring sections for bending, warping or damage.

  • Page 33: Troubleshooting

    BAR750 Troubleshooting Troubleshooting: Electrical SYMPTOM PROBABLE CAUSE SOLUTION Bed section does not move. End of stroke reached. Operate opposite button. Ensure power cord is plugged into power No power to unit. source. Ensure Pendant correctly connected to junction box under the bed.

  • Page 34: Specifications

    BAR750 Specifications BAR750 Bariatric Bed Specifications MAXIMUM OVERALL WIDTH: 51 inches (129.4 cm) DECK HEIGHTS: 15 inches (38.1 cm) low position 29 inches (73.7 cm) high position (MEASURED FROM FLOOR) DECK WIDTH EXTENDER: 39 inches (99 cm) (MEASURED TO INSIDE OF SIDE RAILS) 42 inches (106.6 cm)

  • Page 35: Warranty

    Invacare warrants all welds of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five years from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.
  • Page 36 One Invacare Way 570 Matheson Blvd E. Unit 8 Gendron, Inc. Elyria, Ohio USA Mississauga Ontario 520 W. Mulberry St. – Suite 100 44035 L4Z 4G4 Canada Bryan, OH 43506 800-333-6900 800-668-5324 60101899-A 2018-11-29 Making Life’s Experiences Possible® Product Distributed by Invacare...
