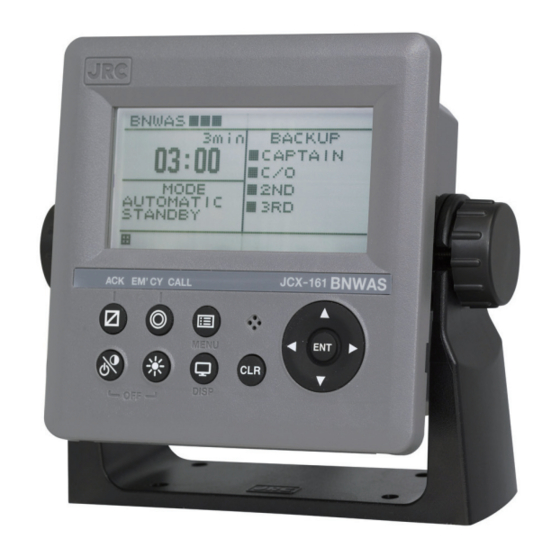

JCX-161 Operational Card
Dormant
Operation
mode
Operation key
period
A dormant period is reset.
An emergency call is generated by pushing for 2 seconds.
A menu screen is displayed.
The contrast of LCD is adjusted.
The brightness of LCD/Operation key is adjusted.
A countdown screen is displayed.
Operation is canceled.
Cursor is moved at the time of menu operation.
Processing is finalized at the time of menu operation.
Control Number : 7ZPNA4319 (First Edition 2013.04)
Backup
Officer
Operation key
Advertisement
Related Manuals for JRC JCX-161
Summary of Contents for JRC JCX-161
- Page 1 Control Number : 7ZPNA4319 (First Edition 2013.04) JCX-161 Operational Card Dormant period Backup Officer Operation mode Operation key Operation key A dormant period is reset. An emergency call is generated by pushing for 2 seconds. A menu screen is displayed.
- Page 2 Operation of Officer of the Watch (OOW) Reset operation - Before a dormant period is finished, push the button for reset of key or the reset button unit, and reset a dormant period. - Any other key press will also cause reset. Alarm state Since alarm is generated when the icon is displayed on the LCD lower part, press a...
- Page 3 Operation of Duty Officer Password The input of a password is required to carry out change of the operation mode or various time, and a backup officer's setting variation. - Press a key, display a menu screen and choose [SET VALUE]. - Since a password input screen is displayed, enter 4 figures of passwords by up and down arrow key, and press a key.
- Page 4 WATCH ALARM Operation 1．Operation sequence of displays and alarms At the end of a dormant period, the WATCH ALARM initiates in order of visual indication, first stage bridge audible alarm, second stage remote audible alarm, and third stage remote audible alarm. The alarm continues until it is reset.
