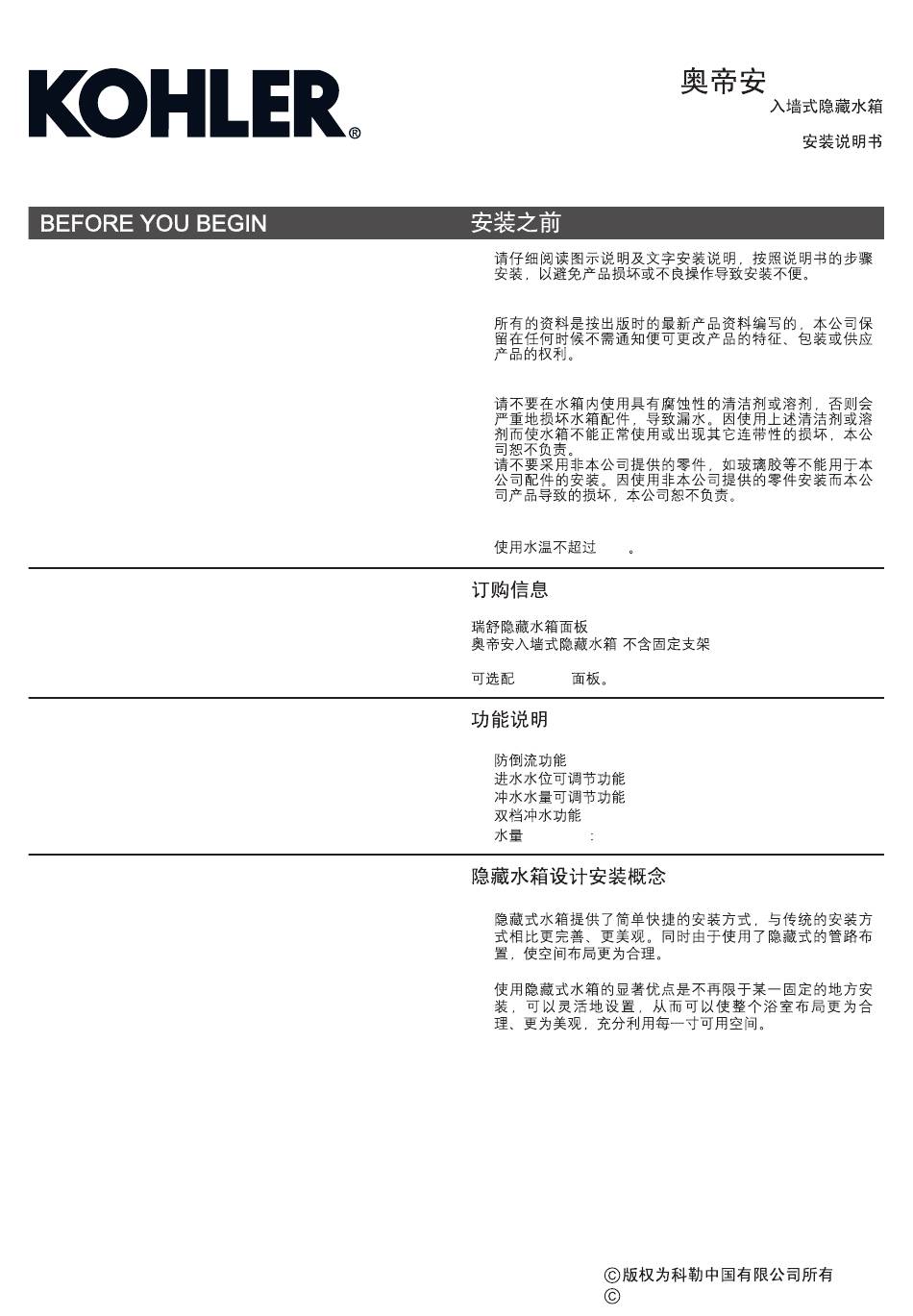

Read installation guide in illustration and word file
carefully, and install the tank according to instructions in
the guide to avoid product damage and installation
inconvenience caused by inappropriate operation.
·
All data contained is based upon the last product
information available at the time of publication. Kohler
Company reserves the right to implement changes of
product characteristics, packaging and availability at any
time without further notice.
·
Do not apply erosive cleanser and solvent in the tank,
which will damage tank spares and result in leakage in the
tank. Kohler will not be responsible for any damage
related to above mentioned cleanser or solvent.
·
Do not apply spares that are not provided by Kohler, and
please note that glass adhesive tape shall not be applied
to the installation of Kohler spares. Kohler will not be
responsible for any damage related to installation with
spares not provided by Kohler.
· Water temperature must not exceed 27 C.
Ordering Information
RATIO In-Wall Tank Faceplate ...................................K-6283T
ODEON In-Wall Tank(Without Iron Rack) ..................K-6286T
Can match with K-8854T faceplate.
Function Explanation
·
Anti flow-backwards
·
Adjustment of inlet water level
·
Adjustment of flushing volume
·
Single/double gear flushing
Water usage (K-6286T): 3/6L
Design And Installation Concept Of In-wall Tank
·
Installation of in-wall tank is much easier and nice-looking
comparative to that of traditional tank. Meanwhile, the
space layout will be more reasonable due to the
application of in-wall tank pipes and connectors.
·
The most remarkable advantage of in-wall tank is that the
installation will never be limited to certain area, and can
be installed wherever as you wish, which will make the
bathroom layout more reasonable and nice-looking, and
make good use of every inch of the bathroom space.
1206284-T01-A
·
·
·
·
·
o
·
·
·
·
·
·
-1-
INSTALLATION INSTRUCTIONS
o
27
C
.......................................................K-6283T
(
K-8854T
(K-6286T) 3/6L
Copyright Kohler China Ltd., 2012
ODEON
IN-WALL TANK
K-6283T/K-6286T
)........................K-6286T
, 2012
Advertisement
Related Manuals for Kohler ODEON K-6286T
Summary of Contents for Kohler ODEON K-6286T
- Page 1 · · Do not apply spares that are not provided by Kohler, and please note that glass adhesive tape shall not be applied to the installation of Kohler spares. Kohler will not be responsible for any damage related to installation with spares not provided by Kohler.
- Page 2 Easy maintenance and servicing · · Clean, garbage free, and space saving ROUGHING-IN Reference Value UNIT: mm 15-55 Adhesive Agglutination Adhesive 75~235 Cutting Range 1105-1185 Recommended Installation Height Finished Floor Kohler reserves the right to change marked dimensions without prior notice. 1206284-T01-A...
-
Page 3: Installation
INSTALLATION 1. Mark on the wall for appropriate position for fixing bracket, and drill four holes with diameter of 12mm and depth of 12mm 70-76mm 70-76mm with churn drilling as shown in illustration, and fill in the holes with bulge screw and tighten the screw to set the fixing bracket. - Page 4 3. Install the rectangular shield in the block screen of the tank, and tighten the screw to fix the rectangular shield to the Block Shield tank. Rectangular Shield Screw 4. Fix the leak-proof gasket to syphon as shown in illustration, and adjust the syphon to appropriate position to be fixed to the infall of bowl.
- Page 5 6. When fixing the adjustable board to block shield, the locknut should be put directly on positong of the sign of " OPEN . " Remark: Stir pole shall remain level. Block Shield OPEN Locknut Adjustable Board Stir Pole 7. Fix the adjustable board on the wall by tightening the locknut as shown in the illustration.
- Page 6 9. In-wall tank toilet is ready to be put into use. Long Flush Button Short Flush Button Finished Installation Illustration MAINTENANCE AND CONTROL PROCEDURES MAINTENANCE AND CONTROL PROCEDURES . Hold the cover with both hands and push upward to take down the cover.
- Page 7 . Tighten the locknut to the marked position of OPEN to " " take out the adjustable board. OPEN Locknut . Pin the indentation on block screen with screwdriver to take out the block screen. Block Screen D. Wash Filtration Net Close corner valve first, then loosen and take out the tighten nut, and wash the waste on filtration net with clean water.
- Page 8 E. Adjust The Control Pole Of Drainage Valve Pin the pole first to take out the control button as shown in the illustration. Then take out the fixing frame with both hands. Pole Control Button Fixing Frame Fixing Frame . Pull out reversed lock on the fixing frame as shown in the illustration, and adjust the height of the control poles to ensure the leak-proof of drainage valve.
- Page 9 G. Adjust Drainage Valve Control Pole Drainage volume and overflow level of the tank can be adjusted by drainage valve: 1) Heavy drainage adjustment: Open adjustment switch to open the small hole. 2) Slight drainage adjustment: adjust the height of floating box and the water level of slight drainage will be at the bottom of the floating box.
-
Page 10: Troubleshooting Procedures
TROUBLE SHOOTING PROCEDURES TROUBLE SHOOTING PROCEDURES Symptoms Probable Causes Recommended Action The inlet valve is closed Open inlet valve (refer to page 7) No water fills in via inlet Floating box of inlet valve is blocked by tank wall Adjust floating box to appropriate position valve Floating box of inlet valve is block by waste Wash the floating box with clean water...
