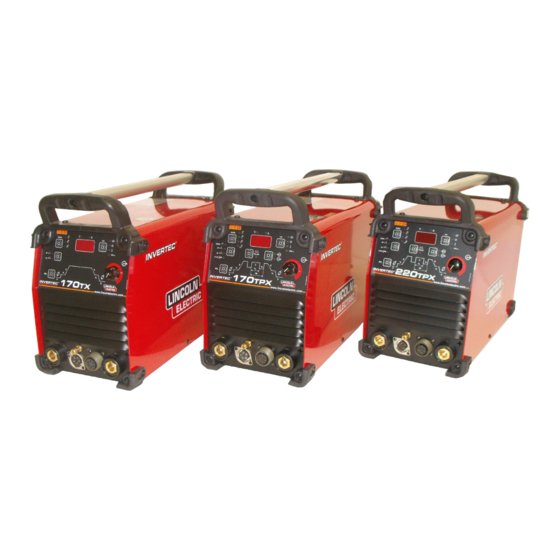

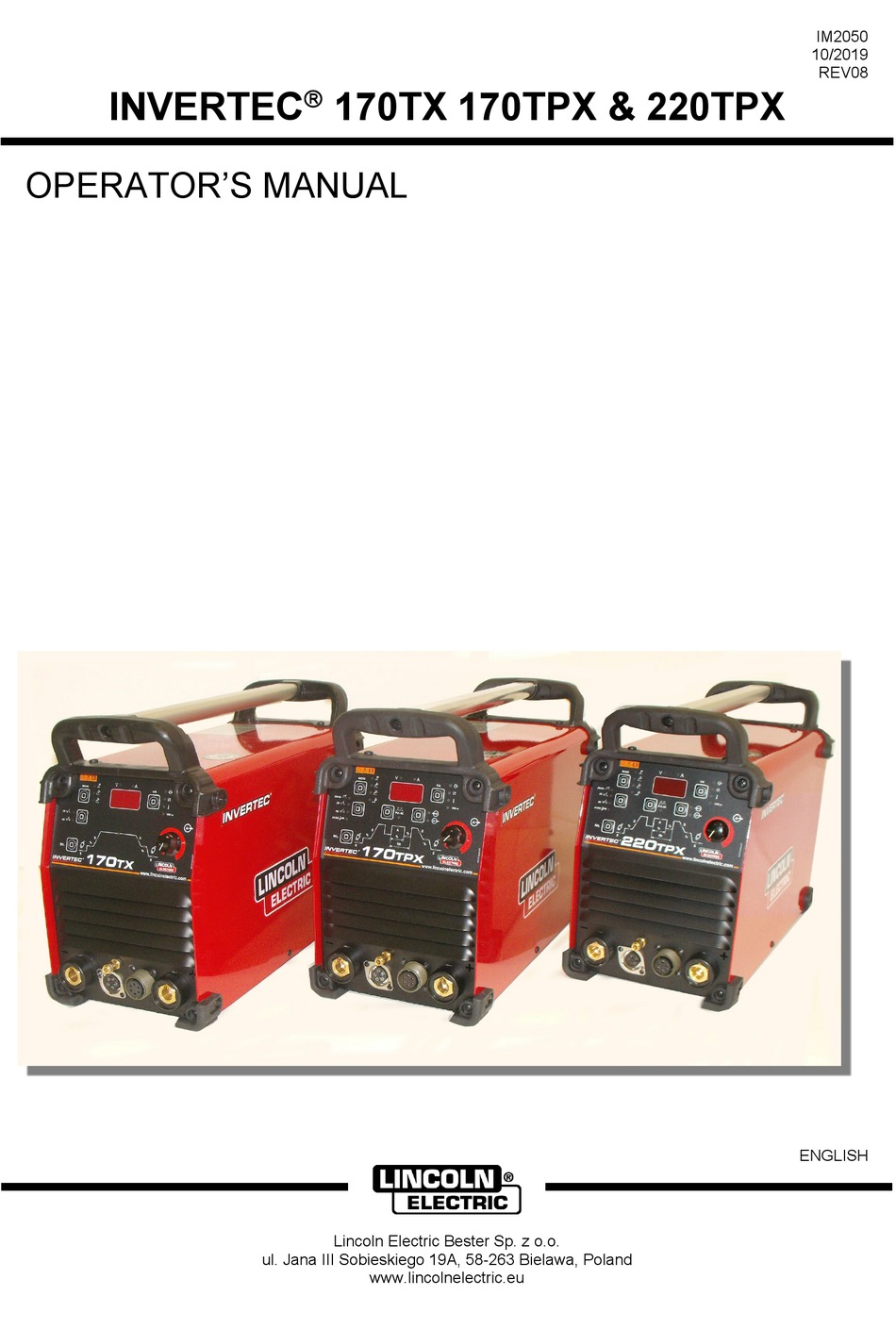

- Page 1 IM2050 10/2019 REV08 INVERTEC 170TX 170TPX & 220TPX OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code &... -
Page 3: Technical Specifications (170Tx/Tpx) Ce Model
Technical Specifications (170TX/TPX) CE model NAME INDEX INVERTEC 170TX CE K12054-1 INVERTEC 170TPX CE K12055-1 INPUT Input Voltage U EMC Class Frequency 230Vac ± 15% 50/60 Hz Input Line Input Power at Rated Cycle Input Amperes I cosφ 1max 100% (Stick) 3.2KW... -
Page 4: Technical Specifications (170Tpx) Aus Models
Technical Specifications (170TPX) AUS models NAME INDEX INVERTEC 170TPX AUS K12055-2 INPUT Input Voltage U EMC Class Frequency 230Vac ± 15% 50/60 Hz Input Line Input Power at Rated Cycle Input Amperes I cosφ 1max 100% (Stick) 3.2KW 100% (TIG) 2.5KW 30% Stick 30% Stick... -
Page 5: Technical Specifications (220Tpx) Ce And Aus Model
Technical Specifications (220TPX) CE and AUS model NAME INDEX INVERTEC 220TPX CE K12057-1 INVERTEC 220TPX AUS K12057-2 INPUT Input Voltage U EMC Class Frequency 115 - 230Vac ± 15% 50/60 Hz Input Line Input Power at Rated Cycle Input Amperes I cosφ... -
Page 6: Electromagnetic Compatibility (Emc) For 170Tx/Tpx
Lincoln Electric. This equipment does not comply with IEC 61000-3-12. If it is connected to a public low- voltage system, it is responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the equipment may be connected. -
Page 7: Electromagnetic Compatibility (Emc) For 220Tpx
Lincoln Electric. This equipment is compliant with EN 61000-3-12 and EN 61000-3-11 if the public low voltage system impedance at the point of common coupling is lower than 0,322 Ω. It is the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if necessary, that the system impedance complies with the impedance restrictions. -
Page 8: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 9 CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or transport gas cylinders with the protection cap removed.
-
Page 10: Installation And Operator Instructions
Installation and Operator Instructions General Description It is important to check these conditions because many engine driven generators produce high voltage spikes. Invertec 170TX/TPX and 220TPX are constant current, Operation of this machine with engine driven generators continous control arc welding power sources for stick not conforming to these conditions is not recommended and tig process. - Page 11 Connect the torch cable to the (-) Controls and Operational Features terminal of the machine and the work Machine Start-Up: clamp to the (+) terminal. Insert the When the machine is turned ON an auto-test is connector with the key lining up with executed: during this test all the LEDs turn ON in the keyway and rotate approximately sequence;...
- Page 12 Remote LED: Thermal LED: This indicator will turn on when a Remote command is This indicator will turn on when the machine is connected to the machine via the remote control overheated and the output has been disabled. This connector. normally occurs when the duty cycle of the machine has been exceeded.
- Page 13 Each trigger mode is detailed in the Operating instruction Output Current Knob: section. SEL Pushbutton: It is used to set the Output Current used during welding. The SELect pusbutton is used to scroll the TIG welding This knob is also a multi-purpose command: see the parameters.
- Page 14 Lift TIG (GTAW welding) Operating Instruction To select Lift TIG welding: Action Visualization Stick (SMAW) Welding To select Stick welding: Action Visualization Press MODE several times until the LED above lights up When the mode pusbutton is in the Lift TIG position, the stick welding functions are disabled and the machine is Press MODE several times until the LED above lights up ready for Lift TIG welding.
- Page 15 See “Setup menu” section for options enabling / POSTFLOW disabling. In the TIG welding modes, this function controls the shielding gas Postflow time. In Stick welding mode, Tig Welding Sequences (only model 220TPX- this is not used. 170TPX) During welding the Sel pushbutton is enabled for the At each pressure of the SEL following functions: pusbutton the LEDs lights up in the...
- Page 16 During welding the Sel pushbutton is not enabled. The new parameter value is automatically saved. TIG Trigger Sequences TIG welding can be done in either the 2-step or 4-step mode. The specific sequences of operation for the trigger modes are explained below. Legenda of the symbols used: Torch Pushbutton Output Current...
- Page 17 4-Step Trigger Sequence This sequence operation, 4-step with restart disabled, is To select 4-Step sequence: the default setting from the factory. Action Visualization 4-Step Trigger Sequence with Restart Option To select 4-Step with restart sequence: Press several times until the LED above lights up Action Visualization With the 4-step trigger mode and a TIG welding mode...
- Page 18 As shown here, again after a (5A/s) ramp. If press for more then 5 ses the TIG torch trigger is increase/decrease with a ramp of (10A/s). quickly pressed and The current ramp will end when the UP/DOWN button released from step 3A, it is previously pressed is released.
- Page 19 ON again. If the error remains, a maintenance is required. Please contact the nearest 01 99 technical service center or Lincoln Electric and report the error code displayed on the meter of the Front Panel. Select the desired option: on the left display is shown...
- Page 20 Turn OFF then ON the Mains Switch to products. We respond to our customers based on the best restart the machine. information in our possession at that time. Lincoln Electric Fan fault is not in a position to warrant or guarantee such advice, The cooling fan is blocked or faulty.
- Page 21 List of parameters and Factory stored programs List of parameters and Factory Configuration program: Displayed value Selectable Value Range Parameter Factory Configuration Preflow 0.3s 0 - 5s (step 0.1s) Current selected value (s) Lift TIG 2-step: 22A Not adjustable Lift TIG 4-step: 30% Current selected value Start Current HF TIG 2-step: 30%...
-
Page 22: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 23: Suggested Accessories
Suggested Accessories KIT-200A-25-3M Cable Kit 200A - 25 mm - 3m KIT-200A-35-5M Cable Kit 200A -35mm KIT-250A-35-5M Cable Kit 250A -35mm GRD-200A-35-zM Ground cable 200A -35mm z = 5 or 10m K10513-17-z TIG torch LT 17 G -140A z = 4m or 8m Ergo K10529-17-z TIG torch LTP 17 G -140A z = 4m or 8m Ergo K10529-17-8F...
