Ryobi OPP1850 Original Instructions Manual

Cordless pole pruner
Hide thumbs
Table of Contents

Advertisement

Quick Links

ORIGINAL INSTRUCTIONS
Cordless Pole
Pruner
OPP1850

Advertisement

Table of Contents
loading

Related Manuals for Ryobi OPP1850

Summary of Contents for Ryobi OPP1850

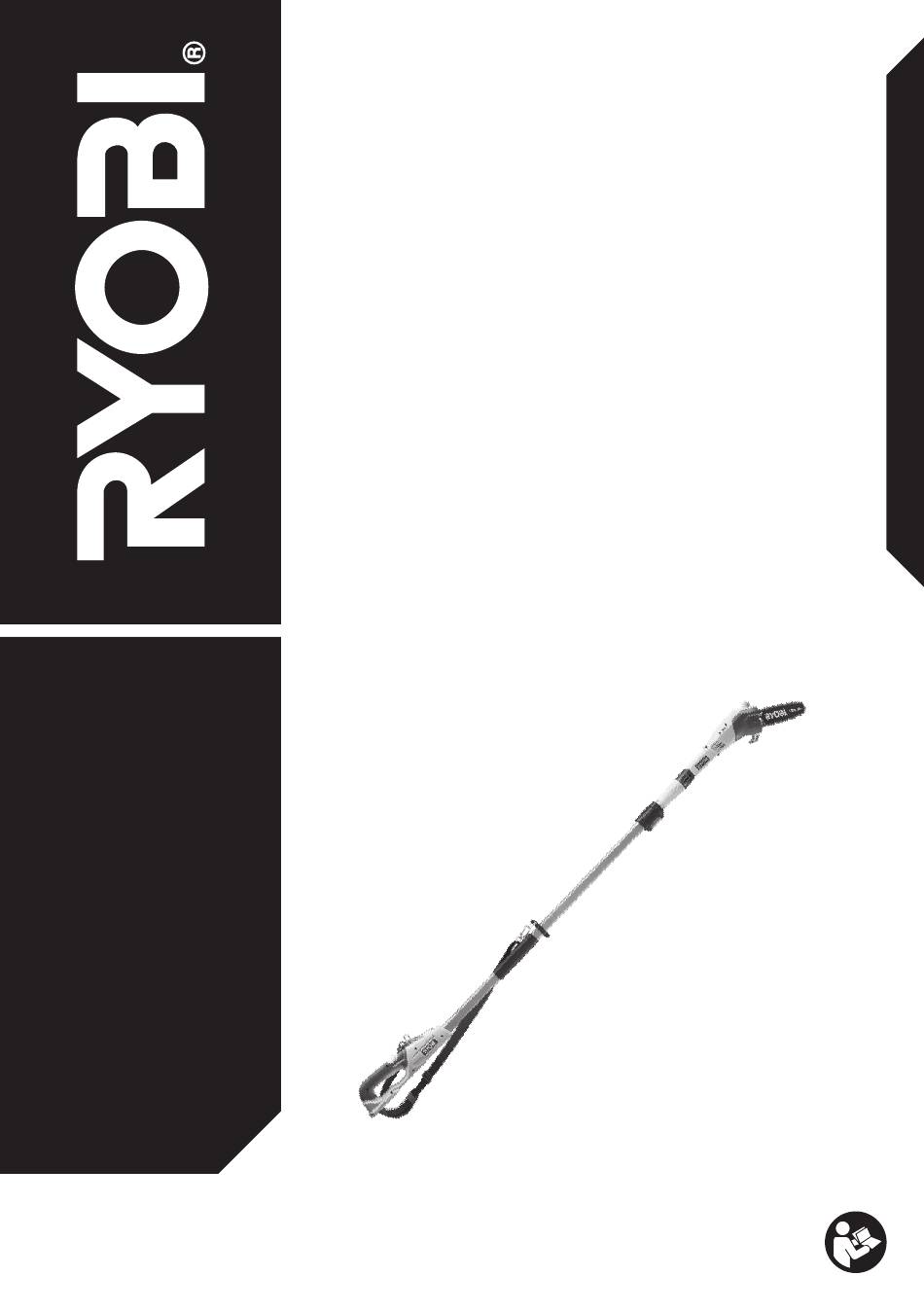

  • Page 1 ORIGINAL INSTRUCTIONS Cordless Pole Pruner OPP1850...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 3: Intended Use

    Safety, performance, and dependability have been given suitable for outdoor use reduces the risk of electric shock. top priority in the design of your cordless pole pruner. If operating a power tool in a damp location is ■ unavoidable, use a residual current device (RCD) INTENDED USE protected supply.

  • Page 4: Pruner Safety Warnings

    ■ Maintain power tools. Check for misalignment or ADDITIONAL GENERAL SAFETY WARNINGS binding of moving parts, breakage of parts and any ■ Some regions have regulations that restrict the use of other condition that may affect the power tool’s the product. Check with your local authority for advice. operation.

  • Page 5: Personal Protective Equipment

    ■ Ensure all guards, handles are properly fitted, and are injury. Kickback is the result of tool misuse and/or in good condition. incorrect operating procedures or conditions and can be avoided by taking the following precautions: ■ Do not start using the product until you have a clear ●...

  • Page 6: Transportation And Storage

    ■ Gloves WARNING ■ Footwear The saw chain is very sharp. To prevent personal injury, ADDITIONAL BATTERY SAFETY WARNINGS exercise extreme caution when cleaning, fitting, or removing the chain scabbard. Always wear protective gloves when performing maintenance on the chain. WARNING To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your...

  • Page 7: Risk Reduction

    ■ injury caused by kickback or sudden and unforeseen movement of the guide bar Beware of thrown or flying objects. Keep ■ injury caused by ejected parts of the saw chain all bystanders at least 15 m away. ■ injury caused by thrown-off parts of the workpiece Wear non-slip, heavy-duty protective (wood chips and splinters) gloves when handling the pole pruner...

  • Page 8: Operation

    Note Warning OPERATION ■ Study the condition of the tree and branches before starting work. If there are signs of damage, rot or decay, do not attempt to prune yourself. Damaged or rotten branches are highly unstable. Seek the services of a professional tree surgeon.
  • Page 9 WHAT’S IN THE BOX...

  • Page 10: Know Your Product

    KNOW YOUR PRODUCT 1. Chain 6. Chain cover 11. Throttle trigger 16. Bar bolt 2. Bar 7. Telescoping collar 12. Front handle 3. Pruner attachment 8. Strap hanger 13. Chain oiler tank cap 4. Shaft coupling 9. Lock out trigger 14.
  • Page 11 GETTING STARTED GETTING STARTED GETTING STARTED Release the telescoping collar to adjust the shaft. Once the Attach the shoulder strap hanger. Loosen and remove the oil cap. Add bar and chain lubricant in the bar lube reservoir for Always wear safety goggles or safety glasses with side Install the shaft to the pruner attachment through the shields when operating the product.
  • Page 13 Know your product OVERVIEW Operating the pruner Replacing the chain bar p.12 p.15 Cleaning the product Adjusting the chain Storing the product 3-4 mm p.18 p.14 p.19...
  • Page 14 OPERATION ≤60˚ ≥15m (50’) OPERATING THE PRUNER WARNING: DANGER! Risk of electrocution! Do not operate within 10 m of overhead electrical power lines. Position the product at an angle of 60° or less, depending on the specific situation. Keep bystanders at least 15 m away. WARNING: Ensure that the chain and bar oil has been added to the reservoir before use.
  • Page 15 OPERATION cut. NOTE: Make a shallow first cut (1/4 of limb diameter) on the underside of the limb close to the main limb or trunk. Then, make a second cut from the top side of the limb outboard from the first cut. Lastly, make a final cut close to trunk.

  • Page 16: Adjusting The Chain

    MAINTENANCE 3-4 mm ADJUSTING THE CHAIN 1. Turn off the product and then remove the battery pack. 2. Using the allen key wrench, loosen the bar bolt of the drive case. 3. Lift the tip of the bar up to check for sag. Release the tip of the bar, and turn the chain tensioning screw 1/2 turn clockwise.
  • Page 17 MAINTENANCE REPLACING THE CHAIN BAR 1. Turn off the product and then remove the battery pack. 2. Using the allen key wrench, remove the bar bolt from the drivecase cover. 3. Remove the drivecase cover, and chain bar. NOTE: Prepare the chainbar. Make sure the chain follows the correct direction as shown.
  • Page 18 MAINTENANCE 4. Place the chainbar into the bar stud so the chain tensioning pin fits into the chain tensioning pin hole. Fit the chain over the sprocket and into the bar groove. The cutters on the top of the bar should face toward the bar tip, in the direction of the chain rotation.
  • Page 19 MAINTENANCE NOTE: Hold the tip of the bar up and tighten the bar bolt securely. The chain tension is correct when the gap is about 3-4 mm. NOTE: If the chain is too tight, it will not rotate. Loosen the bar bolt slightly and turn chain tensioning screw 1/4 turn counterclockwise.

  • Page 20: Cleaning The Product

    MAINTENANCE CLEANING THE PRODUCT 1. Turn off the product and then remove the battery pack. Allow it to cool down before cleaning. 2. Clean all foreign materials from the product using a soft brush or cloth. WARNING: Keep away from corrosive agents such as garden chemicals and de- icing salts.

  • Page 21: Storing The Product

    STORAGE STORING THE PRODUCT 1. Turn off the product and then remove the battery pack. Allow it to cool down, and make sure the product is clean before storing. 2. Cover the cutting blade with the scabbard. 3. Release the telescoping collar to retract the upper shaft.
  • Page 22 STORAGE 5. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. Do not store outdoors.

  • Page 23: Product Specifications

    PRODUCT SPECIFICATIONS CHAIN AND BAR INFORMATION Cordless pole pruner Manufacturer TRILINK Model OPP1850 Saw chain model CL14333XPB Voltage 18 V Guide bar model M1430833-104IHL No load chain speed 5.5 m/s NOTE: Chain must be fitted with bar from the same manufacturer according to above combinations.
  • Page 26 Techtronic Industries (Australia) Pty. Ltd. 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia RYOBI is a trademark of Ryobi Limited, Techtronic Industries New Zealand Ltd. and is used under license. 2 Landing Drive, Mangere TRILINK is a registered trademark of Auckland, 2022, New Zealand Trilink Saw Chain, LLC.
