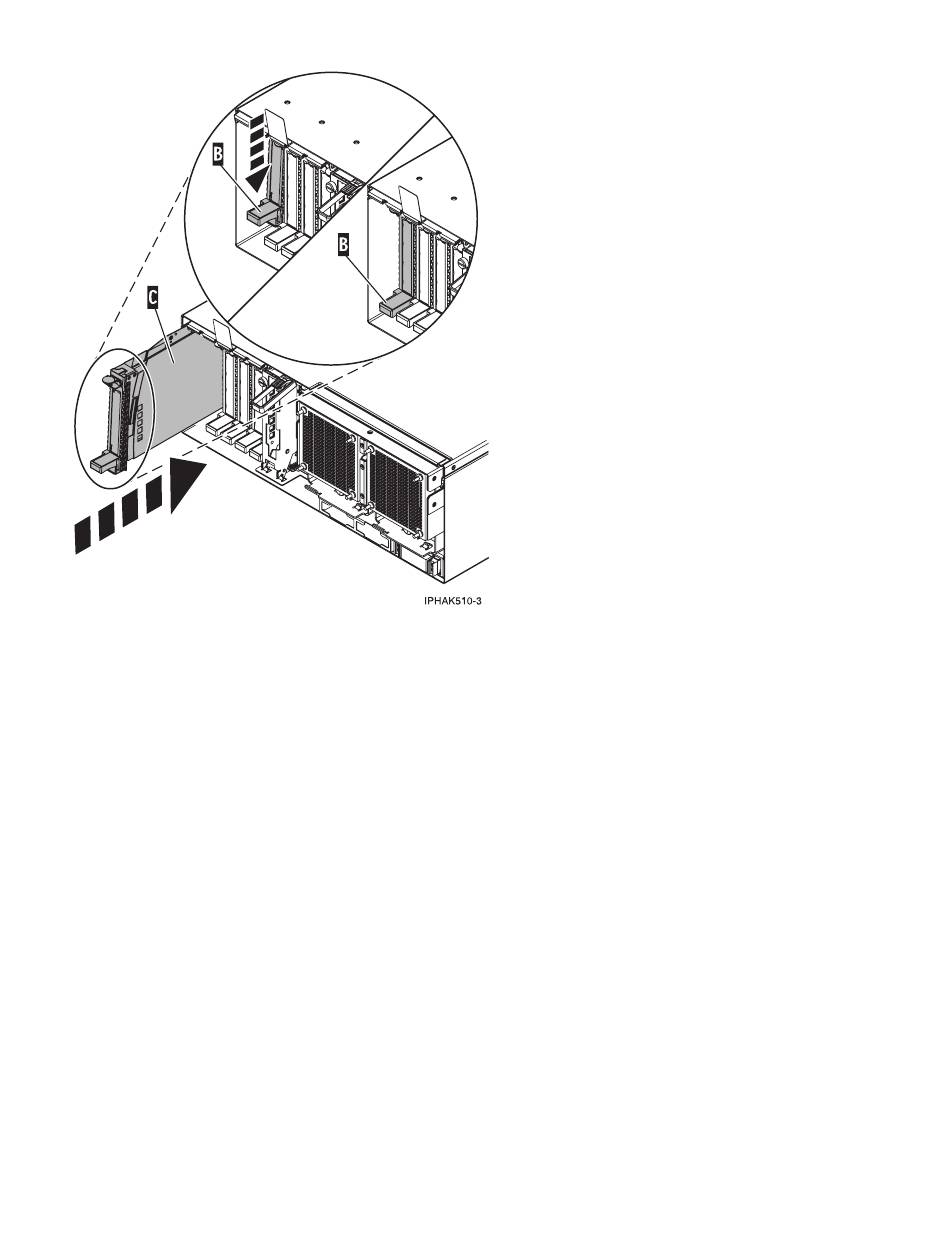

Figure 70. PCI adapter cassette removed from the system unit
27. Connect the adapter cables.
28. Lower the PCI adapter EMC shield (A) into the closed position, close the shield latch, then close the
rear rack door.
135
Common service procedures
