Summary of Contents for Homelite HBLT25CD

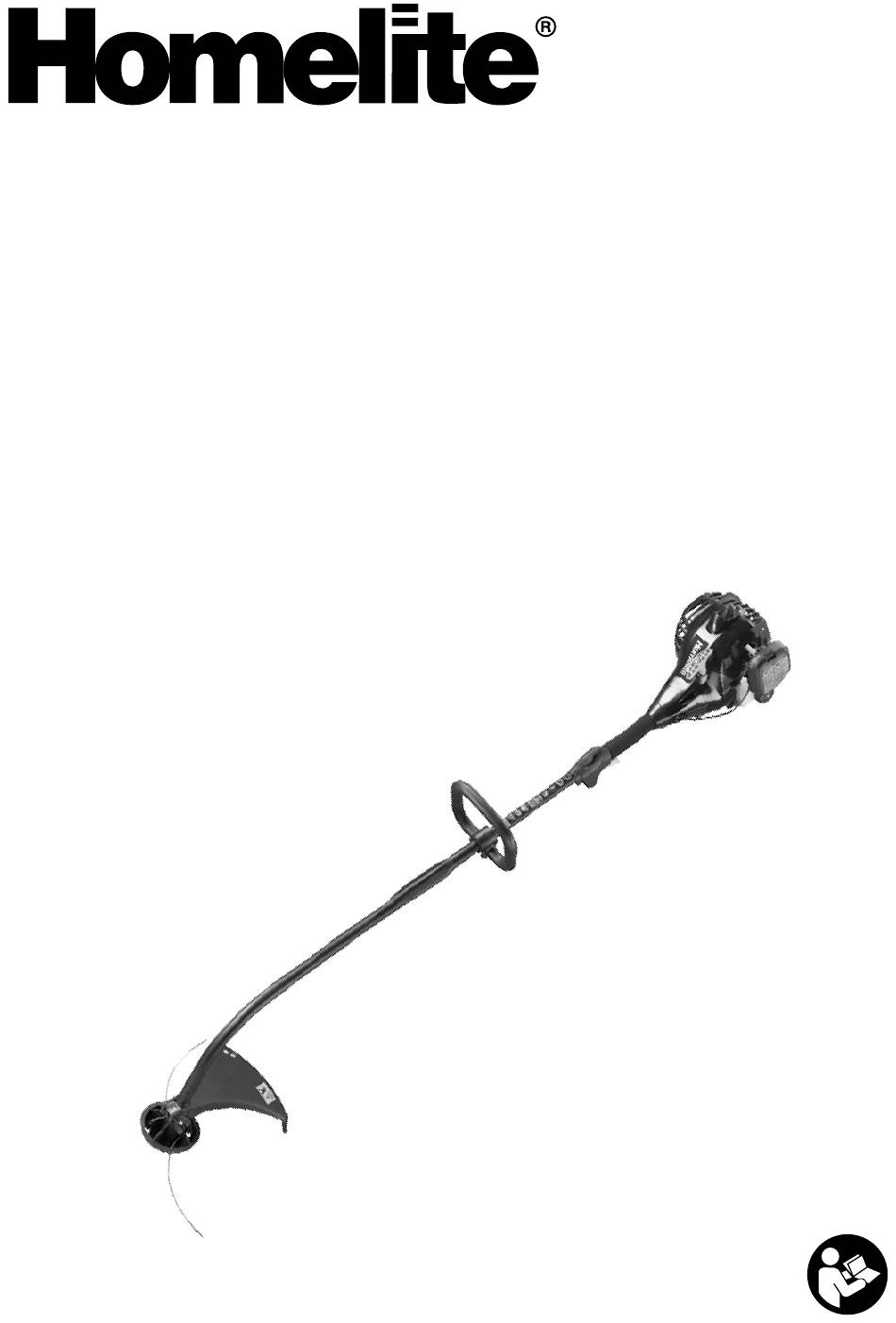

  • Page 1 HBLT25CD...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modifications.

  • Page 3: Intended Use

    | English Original instructions Safety, performance, and dependability have been given objects such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the top priority in the design of your grass trimmer. string head. ■...

  • Page 4: Grass Trimmer Safety Warnings

    Remember to properly replace and tighten the Never use cutting means or attachments, which are not fuel cap. specified by HOMELITE in this manual. This includes ■ Run the engine until it stops, this will remove all fuel the use of metal multi-piece pivoting chains and flail- that could become stale and leave varnish and gum in blades.

  • Page 5: Residual Risk

    | English Original instructions ■ Any part that is damaged should be properly repaired or Wear eye, hearing, and head protection replaced by an authorised service centre. when operating the product. ■ Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure the product is in a safe working condition.
  • Page 6 | English Original instructions WARNING Wait for 10 seconds. If any parts are damaged or missing, do not operate the product until the parts are replaced. Failure to heed this Regulatory Compliance Mark (RCM). warning could result in serious personal injury. Product meets applicable regulatory requirements.

  • Page 7: Operation

    | English Original instructions CONNECTING THE POWER HEAD SHAFT AND TRIM- ■ Loosen the fuel cap slowly to release pressure and to MER SHAFT keep fuel from escaping around the cap. ■ Carefully pour the fuel mixture into the tank. Avoid spillage.
  • Page 8 | English Original instructions is lying on a flat and bare surface. becomes wrapped around the PRO-CUT I head, stop the engine, wait for all moving parts to stop, and remove the Starting a cold engine: MAINTENANCE grass. 1. Ensure the switch is in the "I" (ON) position. 2.

  • Page 9: Checking The Fuel Cap

    Replace the fuel cap if necessary. SPARK ARRESTOR HOMELITE line trimmer (HBLT25CNB) is fitted with a spark arrestor. Please note that it is suggested that the spark arrestor should only be cleaned by a recognized...
  • Page 10 0.5m...
  • Page 11 1. Ignition module 8. Muffler shield 15. Strap hanger 2. Choke lever 9. Air filter 16. Primer bulb 3. Air box cover 10. Grass deflector 17. Switch 4. Fuel cap 11. Trimmer head 18. Starter grip 5. Rear handle 12. String line 19.
  • Page 12 50 : 1 / 2% (50 : 1) Always wear safety goggles or safety glasses with side shields Use synthetic 2-stroke lubricant only. Do not use automotive when operating the product. Failure to do so could result in objects lubricant or 2-stroke outboard lubricant. Mix 2% synthetic 2-stroke being thrown into your eyes resulting in possible serious injury.
  • Page 13 Install the line. Place the middle of the line under the hook/notch inside the spool. Install the D-handle. Loosen the fuel cap. Remove the fuel cap. Carefully pour fuel mixture into the tank. Avoid spillage. Immediately replace fuel cap and hand tighten.
  • Page 14 p.16 p.17 p.21 p.15 p.20 p.23 p.19 p.25 p.26...
  • Page 15 STARTING A COLD ENGINE 1. Lay the product on the ground. Press the primer bulb 10 times. NOTE: After the 7th press, the fuel should be visible in the primer bulb. If not, continue pressing until the fuel is visible. 2.

  • Page 16: Starting A Warm Engine

    STARTING A WARM ENGINE 1. Lay the product on the ground. Ensure the switch is “I” (ON) position. Press the primer bulb 10 times. 2. Set the choke lever to position. 3. Pull the starter grip until the engine starts. Do not pull the starter grip for more than 6 times.

  • Page 17: Operating The Trimmer

    OPERATING THE TRIMMER NOTE: Hold the product with the right hand on the trigger handle and the left hand on the left handle. WARNING: Do not cut in a dangerous cutting area. Avoid trees and shrubs. Tree bark, wood mouldings, cladding, and fence posts can easily be damaged by the line.
  • Page 18 NOTE: The small blade fitted to the cutting attachment guard is designed to trim the new extended line to the correct length for safe and optimum performance. It is very sharp; do not touch it, particularly when cleaning the product. NOTE: Cut tall grass from the top down.
  • Page 19 REPLACING THE PRO CUT I STRING HEAD 1. Turn off the product. 2. Loosen the spool retainer by turning it clockwise and then remove the string head. 3. Take a new PRO-CUT I string head and a 0.5 m length of 2.4 mm diameter monofilament pre-cut line.
  • Page 20 REPLACING THE SPARK PLUG 1. Turn off the product. 2. Twist and pull the rubber protect boot of ignition module, and then remove the old spark plug. 3. Install the new spark plug, tighten by turning it in a clockwise direction or at least 4 turns after finger tight.

  • Page 21: Cleaning The Filter

    CLEANING THE FILTER 1. Turn off the product. 2. Remove the air filter cover and the air filter. 3. Clean the air filter with warm, soapy water. 4. Rinse, and let the air filter dry completely.
  • Page 22 5. Put two drops of lubricant into the air filter. Replace the air filter (fits only one way), and then replace the air filter cover. NOTE: The air filter should be replaced annually for best performance.
  • Page 23 CLEANING THE MUFFLER 1. Turn off the product. 2. Loose the 4 screws and remove the rear housing. 3. Remove the muffler screws counterclockwise, and then remove the muffler cover, muffler and gasket from the cylinder. 4. Use the brush to clean the exhaust hole of the cylinder and intake hole of the muffler.
  • Page 24 5. Place the gasket, muffler, muffler cover and bolts back to its position. Tighten the screws by turning it clockwise. 6. Place the rear housing back to its position. Tighten the screws by turning them clockwise.

  • Page 25: Cleaning The Product

    CLEANING THE PRODUCT 1. Turn off the product, and allow it to cool down before cleaning. 2. Clean all foreign material from the product. WARNING: Keep away from corrosive agents such as garden chemicals and deicing salts. WARNING: The small blade fitted to the cutting attachment guard is designed to trim the new extended line to the correct length for safe and optimum performance.

  • Page 26: Storing The Product

    STORING THE PRODUCT 1. Turn off the product, and allow it to cool down before storing the product. NOTE: Make sure to clean the product before storing. 2. Drain all fuel from tank into a container approved for petrol. Remember to properly replace and tighten the fuel cap.
  • Page 27 NOTE: If a cutting blade is fitted, cover it with the blade protector. 4. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and deicing salts. Do not store outdoors.

  • Page 28: Maintenance Schedule

    MAINTENANCE SCHEDULE After first Every 3 Every 6 Every year Every 25 Before month or months or months or or after 300 hours of each use 20 hours of 50 hours of 100 hours of hours or operation operation operation operation operation Check if fastener is...

  • Page 29: Troubleshooting

    TROUBLESHOOTING Problem Possible cause Solution No fuel. Push primer bulb until the bulb is full of fuel. If the bulb does not fill, the primary fuel delivery system is blocked. If the primer bulb fills, the engine may be flooded. (See next item.) Flooded engine.

  • Page 30: Product Specifications

    PRODUCT SPECIFICATIONS REPLACEMENT PARTS Grass trimmer Parts Accessory Part number number Model HBLT25CD String head 308895001 Weight Spare string line 528721006 - Without fuel, cutting attachment Grass defelector and harness 4.30 Kg 308744009 308043002 -Without fuel and harness, with Spool retainer cutting attachment 4.4 Kg...
  • Page 32 Imported by: Techtronic Industries Australia Pty. Ltd. 31 Gilby Road, Mount Waverly, VIC 3149, Melbourne, Australia Techtronic Industries NZ Limited 2 Landing Drive, Mangere, Auckland, 2022 , New Zealand xxxxxxxxxxxxxxxxxx...

This manual is also suitable for:

Hblt25cnb
