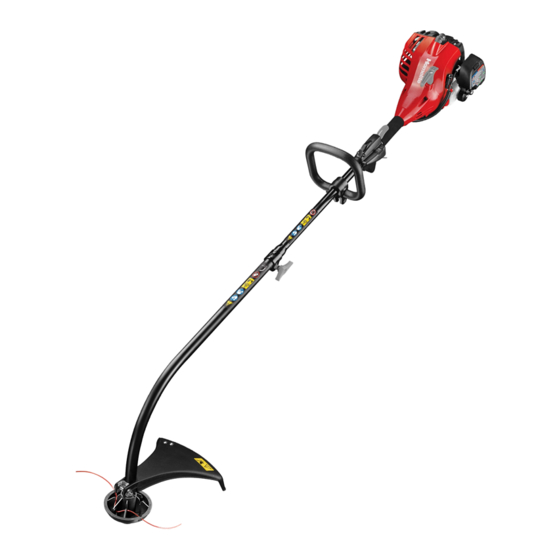

- Page 1 HLT25CDSNC TWO-STROKE PETROL LINE TRIMMER ORIGINAL INSTRUCTIONS Important! It is essential you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modifications.
- Page 2 GENERAL SAFETY WARNINGS ■ Dangerous Environments. To avoid falling, do not use the product in damp or wet locations. ■ Controlling Product. During carburetor WARNING adjustments, the cutting attachment may spin. Therefore, you should wear protective equipment Read and understand all instructions. Failure to follow and observe all safety instructions when adjusting all instructions may result in serious personal injury as the carburetor.
- Page 3 SYMBOLS Important: Some of the following symbols may be used on the product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME EXPLANATION Indicates danger, warning or caution. It means attention. Your safety Safety alert is involved.
- Page 4 Set the choke lever to “Full” position (choke on). Set the choke lever to “Half” position. Place the engine switch to the “I” (On) position. PRIME - Press the primer bulb 10 times slowly. Pull the starter rope to start. Squeeze the throttle trigger to start / run.
- Page 5 SPECIFICATIONS 2. Upper shaft 3. Guide recess Weight without fuel 4.50 kg 4. Button and trimmer head 5. Knob Weight without fuel 4.72 kg 6. Lower shaft with trimmer head 7. PRO-CUT I - Fixed line head Fuel tank volume 250 ml 8.
- Page 6 shaft (item 2). ■ Do not discard the packing material until you have ■ Loosen the knob (item 5) by turning it counter carefully inspected and satisfactorily operated the clockwise. product. ■ Align the button (item 4) on the lower shaft ( item 6 ) PACKING LIST with the guide recess (item 3) on the upper shaft.
- Page 7 immediately with clean water. If irritation is still present, see a doctor immediately. ■ Clean up spilled petrol immediately. Mixing the fuel ■ The product is powered by a 2-stroke engine and requires pre-mixing petrol and 2-stroke oil. Store pre- WARNING mix unleaded petrol and 2-stroke engine oil in a clean container approved for petrol.
- Page 8 2. Press the primer bulb approximately 10 times. WARNING 3. Ensure the choke lever is set to Run position Always wear safety goggles or safety glasses with side 4. Hold down the throttle lock out button and squeeze shields during product operation. If operation is dusty, and hold in the throttle trigger.
- Page 9 Replace the fuel cap if necessary. SPARK ARRESTOR See figure 8. Homelite line trimmer (HLT25CDSNC) is fitted with a spark arrestor, please note it is suggested that the spark arrester should only be cleaned by a recognized service agent.
- Page 10 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION 1. Switch set to the O (OFF) position. 1. Set switch to the I (ON) position. 2. No spark. 2. Remove the spark plug. Reattach the spark plug cap and lay the spark plug on the metal cylinder. Pull the starter cord and watch for a spark at the spark plug tip.
- Page 12 Techtronic Industries Australia Pty. Ltd. 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited 2 Landing Drive, Mangere Auckland, 2022, New Zealand 961481016-02...
