- Page 1 BUILT-IN OVEN OB76S & OB76D touchscreen models INSTALLATION GUIDE NZ AU...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! To avoid hazard, follow these instructions carefully before installing or using this appliance. Electric Shock Hazard Please make this information available to the person installing the appliance Failure to follow this advice may result in — doing so could reduce your installation costs. -
Page 4: Parts Supplied
PARTS SUPPLIED Screws Spacers Long Trim (1) Single oven models (2) Single oven models (2) To be fitted in Double oven models (4) Double oven models (4) a flush installation. PRIOR TO INSTALLATION the benchtop and oven cavity are square and level, and are the required dimensions. the installation will comply with all clearance requirements and applicable standards and regulations. -
Page 5: Product Dimensions - Single Ovens

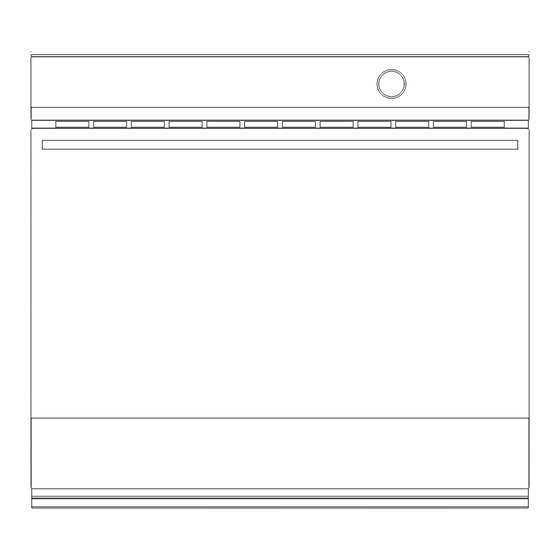

PRODUCT DIMENSIONS — SINGLE OVENS FRONT PROFILE OB76SD PRODUCT DIMENSIONS A Overall height of product B Overall width of product C Overall depth of product (excl. handle and dials) D Depth of oven front and control panel (excl. handle and dials) E Depth of chassis (does not include oven front) F Height of chassis G Depth of door (open) (measured from front of door) H Overall width of chassis... - Page 6 CABINETRY DIMENSIONS — SINGLE OVENS PROUD INSTALL 16-20mm spacer Electrical Supply 42mm min 2mm PROFILE PLAN FLUSH INSTALL OB76SD CABINETRY DIMENSIONS A Minimum inside width of cavity 16-20mm B Overall width of cabinetry C Minimum inside height of cavity spacer 42mm D Overall height of cabinetry E Minimum inside depth of cavity Proud install Flush install...
-
Page 7: Product Dimensions - Double Ovens
PRODUCT DIMENSIONS — DOUBLE OVENS FRONT PROFILE OB76DD PRODUCT DIMENSIONS A Overall height of product 1232 B Overall width of product C Overall depth of product (excl. handle and dials) D Depth of oven front and control panel (excl. handle and dials) E Depth of chassis (does not include oven front) F Height of chassis 1218... - Page 8 CABINETRY DIMENSIONS — DOUBLE OVENS PROUD INSTALL 16-20mm Electrical spacer Supply 42mm min 2mm FLUSH INSTALL PROFILE PLAN OB76DD CABINETRY DIMENSIONS 16-20mm A Minimum inside width of cavity spacer B Overall width of cabinetry 42mm C Minimum inside height of cavity 1224 D Overall height of cabinetry 1236 E Minimum inside depth of cavity...
-
Page 9: Unpacking The Oven
UNPACKING THE OVEN Single model shown for illustration purposes only IMPORTANT! When you remove the oven from the carton be careful not to damage the lower trim. The trim is important for both ventilation and to ensure the door opens fully without obstruction. Ensure you remove the Long Trim from the packaging. - Page 10 REMOVING AND REFITTING THE DOOR(S) IMPORTANT! Take care, the oven door is heavy. Do not lift the oven door by its handle. Doing so may damage the door. Ensure the oven and the door are cool before you begin to remove the door. Before removing the door, ensure there is a large enough clear, protected surface in the kitchen to rest the door on.
- Page 11 ELECTRICAL CONNECTION TO JUNCTION BOX Nameplate location Junction box locations This oven must be earthed. MODEL MAX POWER VOLTAGE OB76SD 4.25 kW 50 Hz 220 - 240 V~ junction box OB76DD 8.50 kW 50 Hz 220 - 240 V~ location for undercounter installation junction box...
-
Page 12: Secure The Oven To The Cabinetry
SECURE THE OVEN TO THE CABINETRY IMPORTANT! Do not lift the oven by the door handle. Do not over-tighten the screws. Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this removal. - Page 13 FLUSH INSTALLATION ONLY — REPLACE THE LOWER TRIM WITH THE SUPPLIED LONG TRIM Unscrew and remove Replace with the the installed lower trim supplied long trim...
-
Page 14: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER TEST OPERATION: Ensure the oven is level and securely fitted to the cabinetry. Turn the power to the oven on. The display should light up and show 24hr. Set the clock following the instructions in the ‘Quickstart Guide’. Check the lower trim is undamaged. - Page 16 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2019. All rights reserved. The product specifications in this document apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this document correctly describes the product currently available.
