Fisher & Paykel OB76 Series Installation Instructions Manual

Installation instructions
Aerotech oven
OB76 models
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website
www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

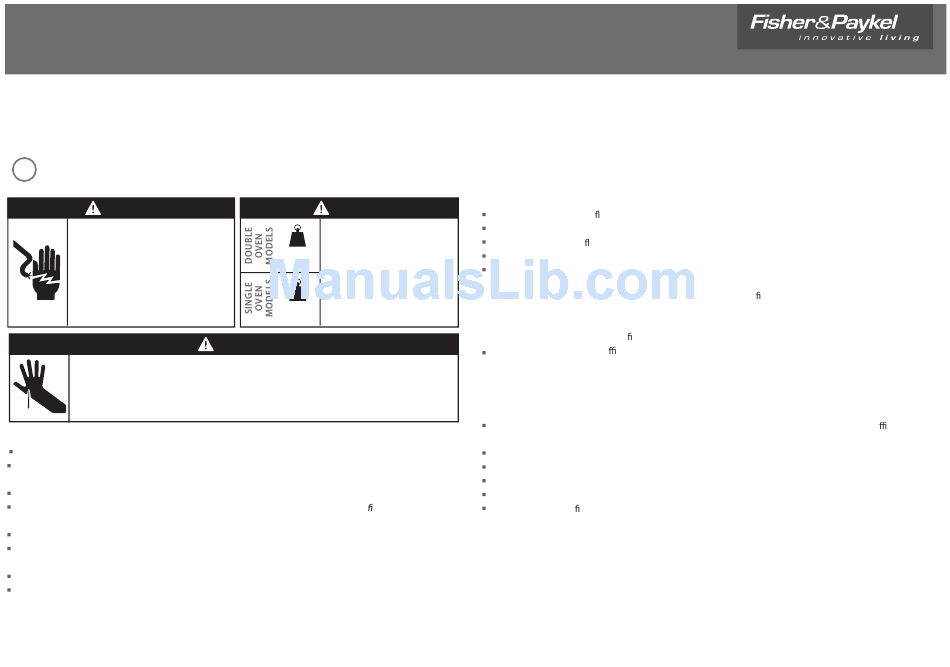

SAFETY AND WARNINGS

1
WARNING!
Electrical hazard
Always disconnect the oven from
the mains electricity supply
before carrying out any
maintenance operations or
repairs.
Failure to do so may result in
electrical shock or death.
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Important safety precautions!
To avoid hazard, follow these instructions carefully before installing or using this product.
Please make this information available to the person installing the product as it could reduce your
installation costs.
This oven is to be installed and connected to the electricity supply only by an authorised person.
If the installation requires alterations to the domestic electrical system, call a quali ed electrician. The
electrician should also check that the socket cable section is suitable for the electricity drawn by the oven.
The oven must be earthed.
To connect the oven to the mains, do not use adapters, reducers or branching devices as they can cause
overheating and burning.
Installation must comply with your local building and electricity regulations.
Failure to install the oven correctly could invalidate any warranty or liability claims.
WARNING!
Very Heavy
Do not attempt to lift this
409 lb
product unassisted.
186 kg
Lifting unassisted may
cause serious injury.
242 lb
110 kg
WARNING!
Before you install the oven, please make sure that
The oven will rest on a at surface that can support its weight.
The benchtop and oven cavity are square and level, and are the required dimensions.
The height from the oor suits the user.
The oven door can open fully without obstruction.
a suitable disconnection switch is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations. A means of disconnection with at least a 3 mm air gap
contact separation in all poles must be incorporated into the xed wiring in accordance with the wiring
rules, unless the local wiring rules allow for the following variation:
A means of disconnection from the supply having and air gap separation in all active ( phase) conductors
must be incorporated into the xed wiring.
the electrician provides su cient free length of power supply cable to reach from the bottom rear of the
cavity to at least 1.5 metres in front of the bottom edge of the opening. The cable may enter the cavity
from the side, top or bottom, but top entry must be at the rear of the cavity.
When you install the oven
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing di cult. Fisher &
Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
Use the supplied screws and spacers to secure the oven to the cabinetry. Do not over-tighten the screws.
Do not stand on the door, or place heavy objects on it.
Do not lift the oven by the door handle.
Take extra care not to damage the lower trim of the oven.
Use easy-to-clean nishes for the wall surfaces surrounding the oven, so that cooking fume staining
resulting from using the oven is easy to remove.
NZ AU
