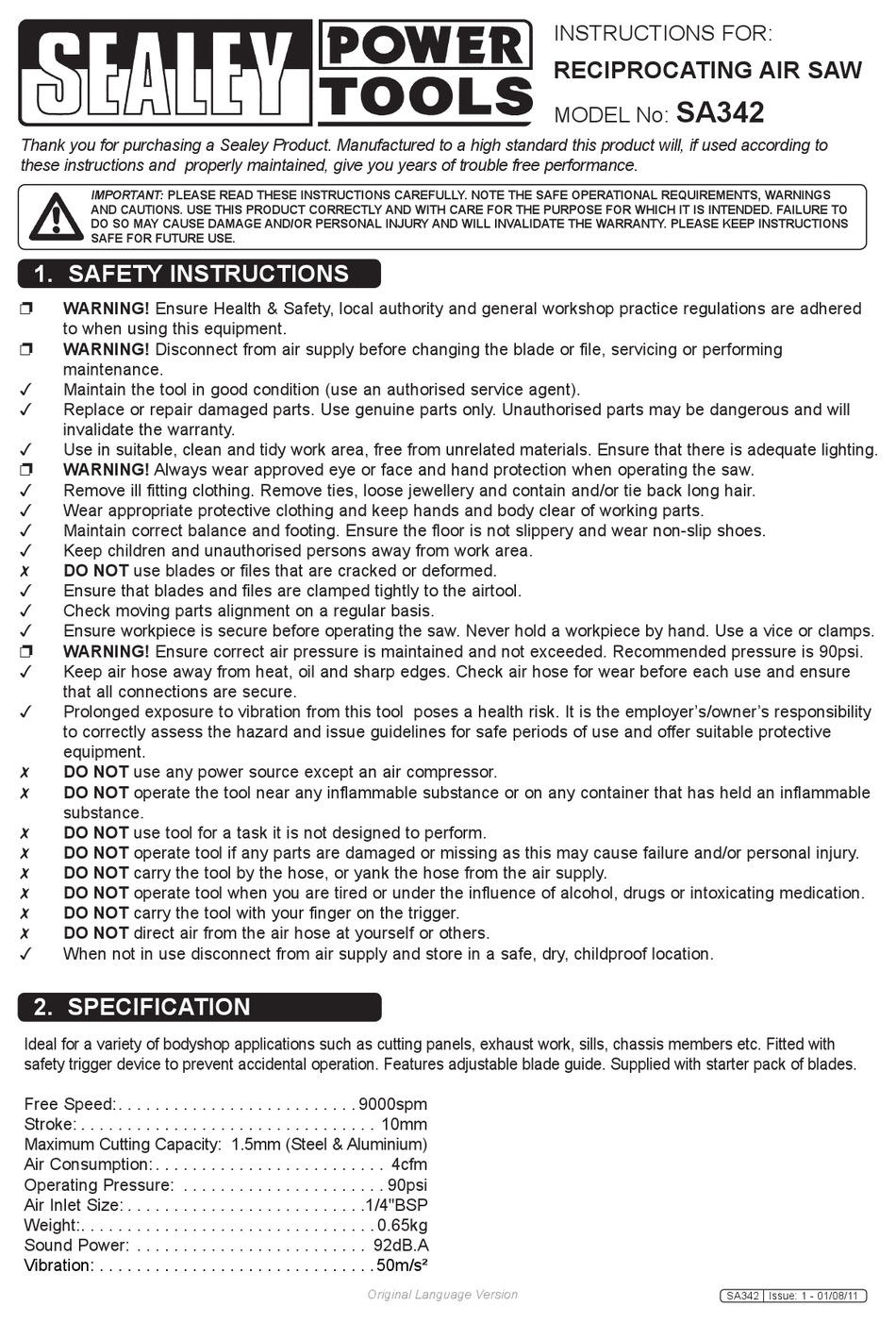

Sealey SA342 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to
these instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: PLease reaD tHese instructions carefuLLy. note tHe safe oPerationaL reQuireMents, warninGs
anD cautions. use tHis ProDuct correctLy anD witH care for tHe PurPose for wHicH it is intenDeD. faiLure to
Do so May cause DaMaGe anD/or PersonaL inJury anD wiLL inVaLiDate tHe warranty. PLease KeeP instructions
safe for future use.
1. safety instructions
warninG! ensure Health & safety, local authority and general workshop practice regulations are adhered

to when using this equipment.
warninG! disconnect from air supply before changing the blade or file, servicing or performing

maintenance.
maintain the tool in good condition (use an authorised service agent).

replace or repair damaged parts. use genuine parts only. unauthorised parts may be dangerous and will

invalidate the warranty.
use in suitable, clean and tidy work area, free from unrelated materials. ensure that there is adequate lighting.

warninG! Always wear approved eye or face and hand protection when operating the saw.

remove ill fitting clothing. remove ties, loose jewellery and contain and/or tie back long hair.

Wear appropriate protective clothing and keep hands and body clear of working parts.

maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.

Keep children and unauthorised persons away from work area.

Do not use blades or files that are cracked or deformed.

ensure that blades and files are clamped tightly to the airtool.

check moving parts alignment on a regular basis.

ensure workpiece is secure before operating the saw. never hold a workpiece by hand. use a vice or clamps.

warninG! ensure correct air pressure is maintained and not exceeded. recommended pressure is 90psi.

Keep air hose away from heat, oil and sharp edges. check air hose for wear before each use and ensure

that all connections are secure.
Prolonged exposure to vibration from this tool poses a health risk. it is the employer's/owner's responsibility

to correctly assess the hazard and issue guidelines for safe periods of use and offer suitable protective
equipment.
Do not use any power source except an air compressor.

Do not operate the tool near any inflammable substance or on any container that has held an inflammable

substance.
Do not use tool for a task it is not designed to perform.

Do not operate tool if any parts are damaged or missing as this may cause failure and/or personal injury.

Do not carry the tool by the hose, or yank the hose from the air supply.

Do not operate tool when you are tired or under the influence of alcohol, drugs or intoxicating medication.

Do not carry the tool with your finger on the trigger.

Do not direct air from the air hose at yourself or others.

When not in use disconnect from air supply and store in a safe, dry, childproof location.

2. sPecification
ideal for a variety of bodyshop applications such as cutting panels, exhaust work, sills, chassis members etc. fitted with
safety trigger device to prevent accidental operation. features adjustable blade guide. supplied with starter pack of blades.
free speed:. . . . . . . . . . . . . . . . . . . . . . . . . . 9000spm
stroke: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mm
maximum cutting capacity: 1.5mm (steel & Aluminium)
Air consumption: . . . . . . . . . . . . . . . . . . . . . . . . . 4cfm
operating Pressure: . . . . . . . . . . . . . . . . . . . . . . 90psi
Air inlet size: . . . . . . . . . . . . . . . . . . . . . . . . . .1/4"BsP
Weight:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.65kg
sound Power: . . . . . . . . . . . . . . . . . . . . . . . . . 92dB.A
Vibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50m/s²
Original Language Version
instructions for:
reciProcatinG air saw
sa342
model no:
sA342 issue: 1 - 01/08/11
