Electrical Trip

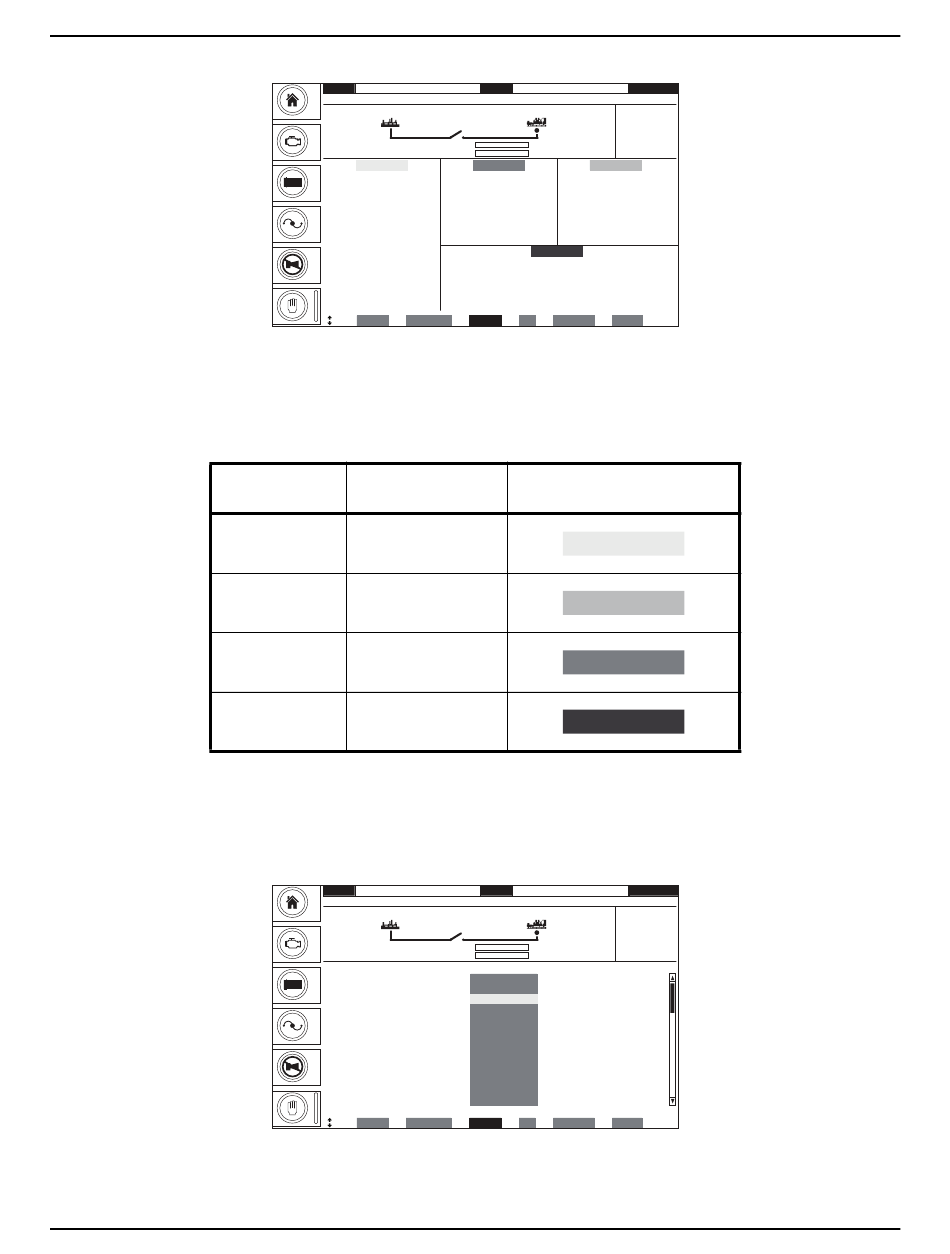

The second page of the Alarms tab shows the event log with a list of events including normal operation events and
alarm notifications with the most recent events at the top of the list. All indexed events include the date and time of
the event, hours of runtime on the engine when it occurred, along with the event name or alarm type and details.
33722 D
SITE
Return Delay
Warning
GEN
+ -
V
1/2 Engine Generator
Figure 2-14. Alarms Tab Screen
Color -
Alarm Type
Background/Text
Warning Yellow/Black
Purple/Black
Shutdown Red/Black
ECU Code Blue/White
SITE
Return Delay
Index Date Time
1 01/01/1970 00:00:01
GEN
2 02/06/1970 11:45:55
3 01/01/1970 00:00:00
4 01/01/1970 00:00:00
5 01/01/1970 00:00:00
+ -
V
6 01/01/1970 00:00:00
7 01/01/1970 00:00:00
8 01/01/1970 00:00:00
9 01/01/1970 00:00:00
10 01/01/1970 00:00:00
11 01/01/1970 00:00:00
12 01/01/1970 00:00:00
13 01/01/1970 00:00:00
2/2 Engine Generator
Figure 2-15. Alarms Tab Screen - Second Page
