MAINTENANCE SCREENS

All of the data inputs from the engine, generator, inputs/outputs, schedule and Power Zone™ controller are visible
on the maintenance screens.
The information displayed on the maintenance screens can be used to identify, diagnose and troubleshoot unit
shutdown conditions and poor unit performance. The maintenance screens can be accessed from any Operator
screen by pressing any directional arrow (▲, ►, ▼, ◄).
The bottom of the screens have a list of available tabs, with the currently displayed tab highlighted in blue. The tabs
can be selected by using the ▲ or ▼ buttons. To the left of the tabs, the current/available pages are displayed. The
pages within a tab can be viewed by using the ▲ and ▼ buttons. Whenever a new tab is selected, the current page
will always be page 1.

Generator Summary

The Generator Summary can be found at the top of all maintenance screens and provides an overview of the system.
SITE

Engine Tab

The Engine tab contains maintenance and instrumentation data gathered from the engine itself. Above the engine
analogue meters is a row of alarm icons. Each icon can be one of three colors: grey (inactive), yellow (warning) or
red (shutdown). The alarm icons are as follows from left to right: water in fuel, emission filter, engine air inlet
temperature, charge alternator, oil pressure, fuel level, battery voltage, coolant temperature, and ECU lamp.
Note: The content may change depending upon the selected engine and the features supported by the engine.
33722 D
Voltage Adjust
- Press , voltage will begin flashing
- Use and
- Press to confirm new voltage. Numbers will stop flashing
GEN
480
+ -
V
277

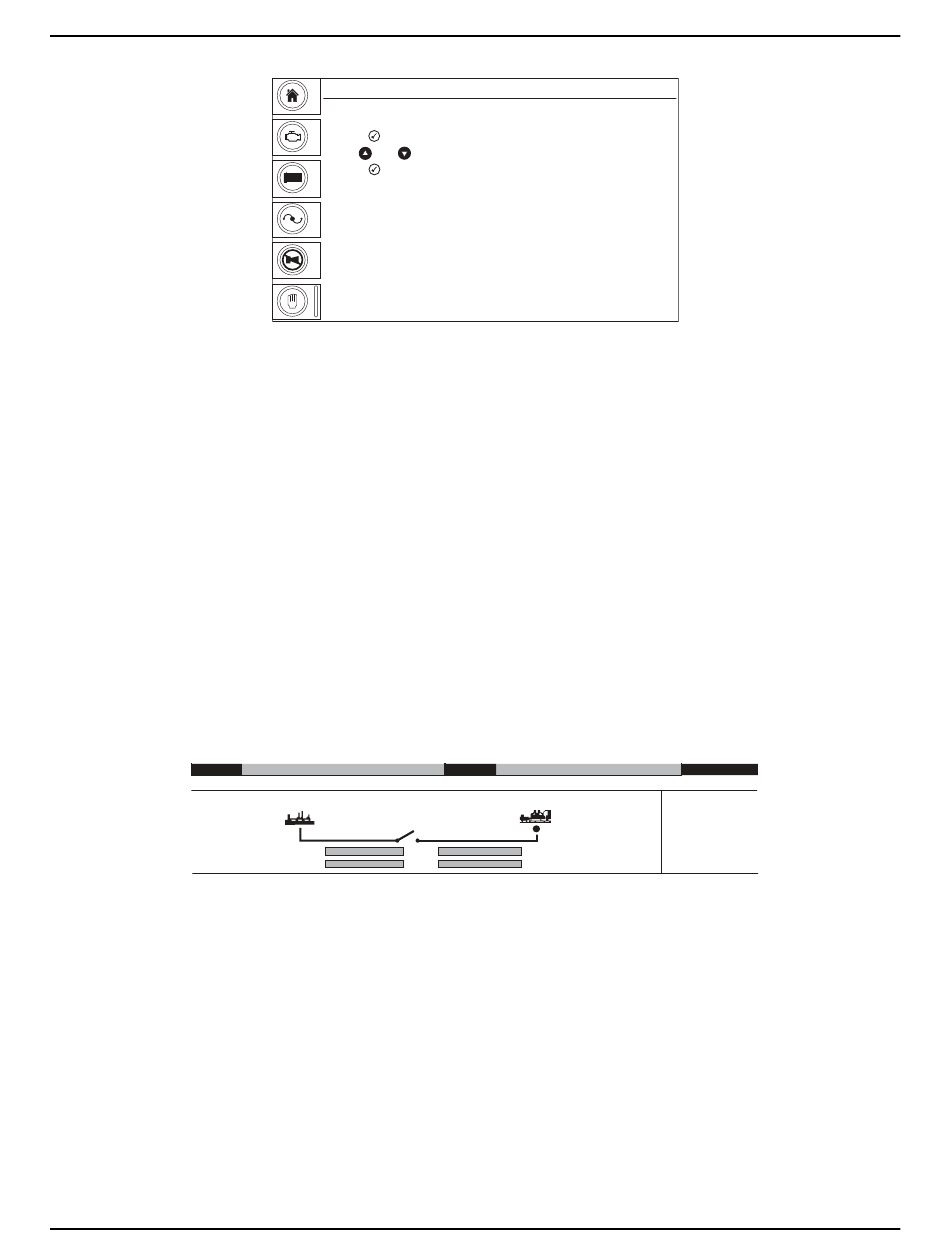

Figure 2-10. Voltage Adjust Screen
MSC ID. 1
Generator Available
Total
0.0
kW
0.0
Hz
0.0
kVAr
0.0
%
kVAr
0.0
%
Figure 2-11. Generator Summary Screen
MMG130DI4/175DI4/205DI4 Operating Manual
Manual Mode
arrows to adjust voltage
V
L-N Average
V
L-L Average
GENSET
Alternative Config 1
60.0
Hz
kW
0.0
%
0.0
%
General Information
00396
8721-A1\8710
20:51
Total Energy Generator
0.0
7.5
kW
kWh+
0.0
kVA
0.0
8.0
kVAr kVAh
----
0.9
pf kVArh
02109
