INSTRUCTIONS:
IMPORTANT: Please also refer to the instructions that came with your product.

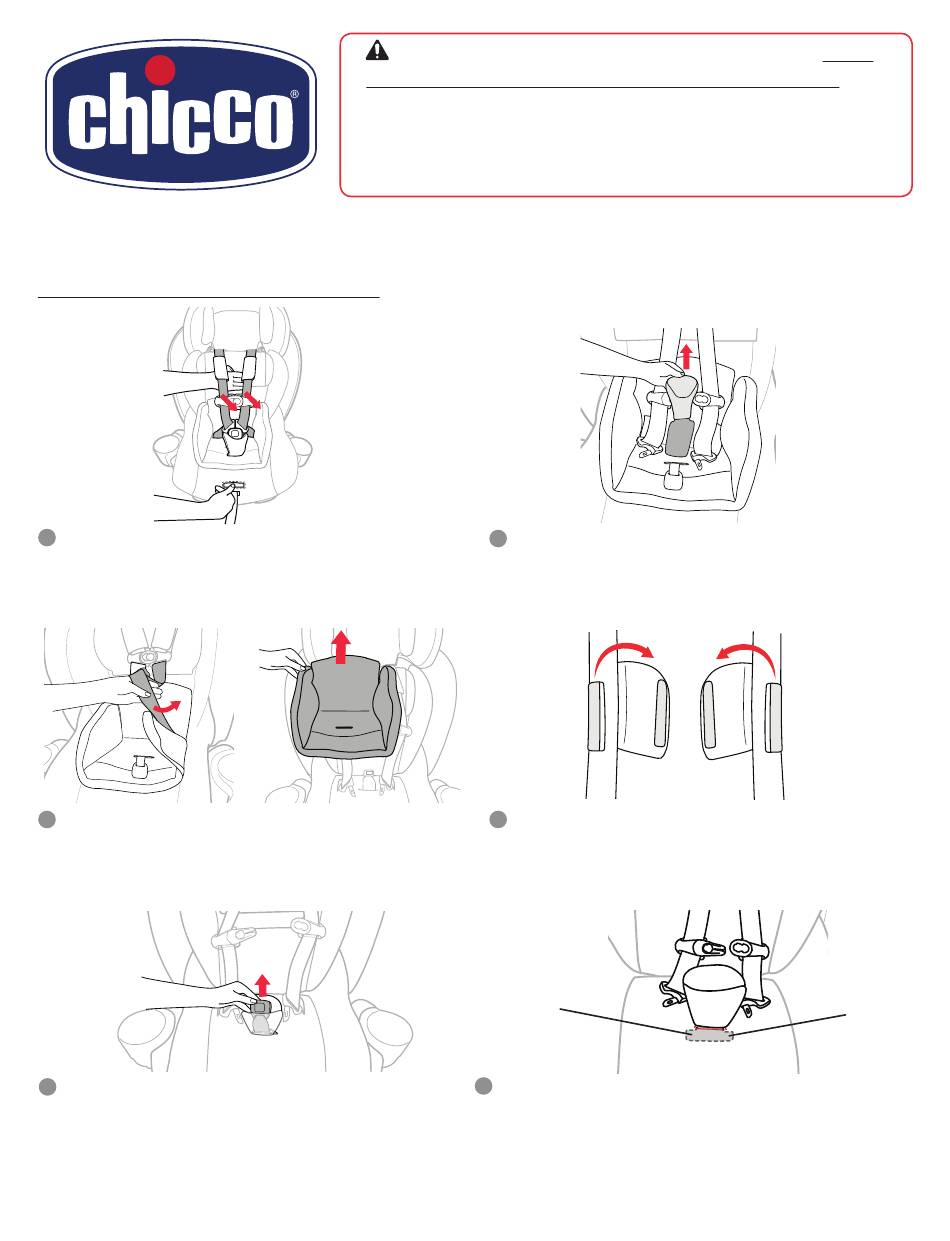

SOFTGOODS REMOVAL Stage 1:
Completely loosen Harness by pressing Harness
1
Release Button on the front of the Child Restraint and
pulling out on both of the Harness Straps. Then unbuckle
the Chest Clip and Harness Buckle.
Remove the Stage 1 Positioner by pulling the
3
Shoulder Straps out through the side openings on the pad
and thread the Harness Buckle through the slot in the pad.
Remove the Stage 1 Positioner from the Child Restraint.
If desired, Reattach the Crotch Strap Pad and
5
Shoulder Pads for Stage 2 use. Pull the Harness Buckle
forward and insert the Crotch Strap Pad tongue down into
the same opening as the Harness Buckle. The Crotch Strap
Pad tongue will be behind the Harness Buckle. Thread the
Harness Buckle up into the Crotch Strap Pad.
WARNING: Avoid serious injury or death to your child. Never
use your Fit 4 Child Restraint without the softgoods in place. You
must read and understand the Softgoods Removal instructions and
the instructions in the User Guide. If you do not understand these
instructions, DO NOT attempt to remove the softgoods, STOP
and call Chicco at 1-877-424-4226.
Fit 4 Softgoods Removal/Installation
6
Fabric Notches are positioned below the slot in the top layer
of padding. Note: The Crotch Strap Pad may be used in stages
1, 2, and 3.
1
Remove the Crotch Strap Pad by pulling the Crotch
2
Strap Pad up and off the Harness Buckle, as shown.
If desired, Unhook the Hook and Loop Tab on the
4
outside of the Shoulder Pad to remove the pad. Repeat for
the other Shoulder Pad. Note: The Shoulder Pads may be
used in Stages 1, 2, and 3.
Fabric
Notch
Be sure to adjust the Crotch Strap Pad so that the
SS0020E_01
Fabric
Notch
