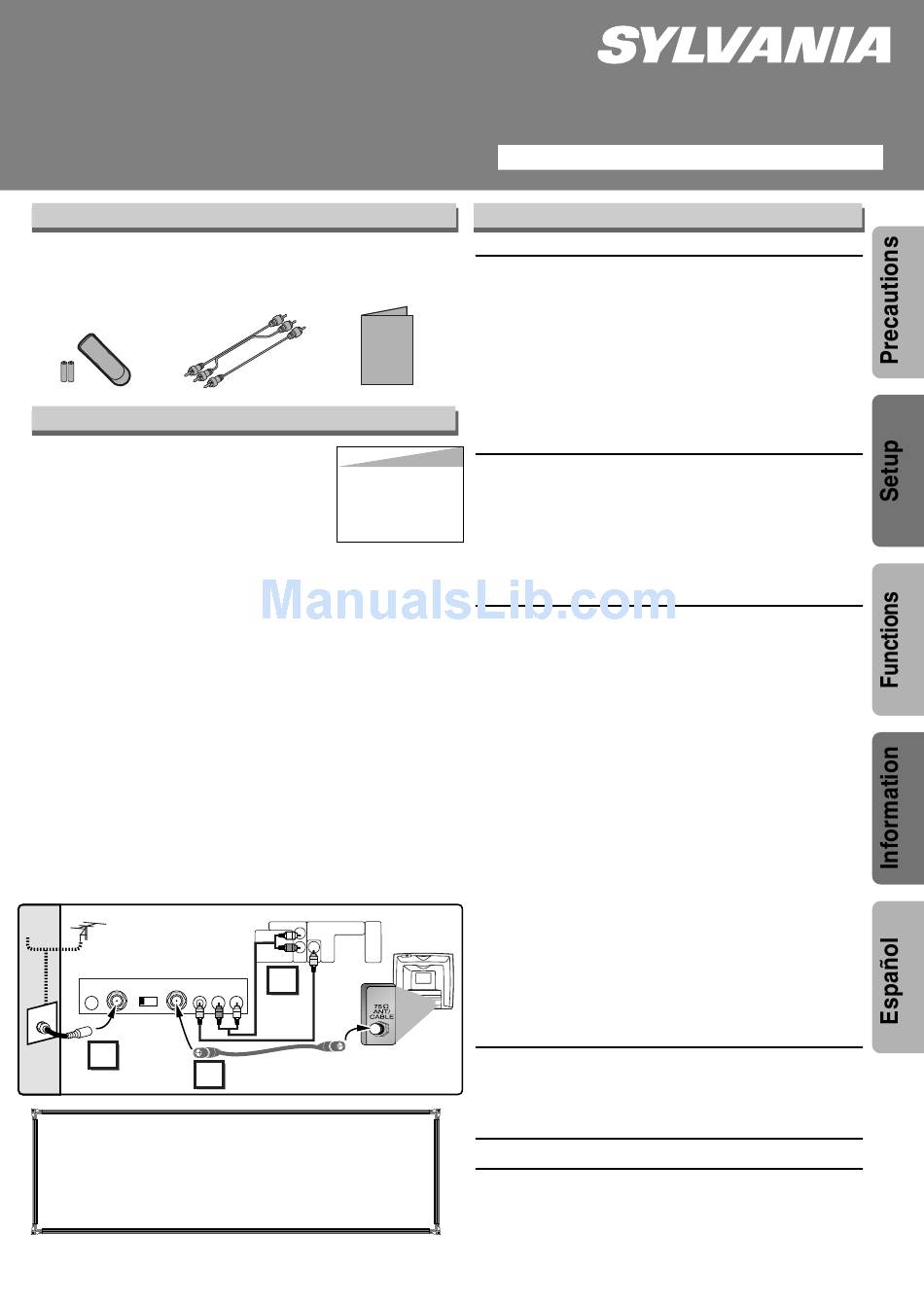

Owner's Manual
Please read before using this equipment.
DVD/CD Player
DVL120E
Supplied Accessory
• Remote control
• Audio/Video
(NB002UD/NB052
cables
UD) with two AA
(WPZ0102TM015/
batteries
WPZ0102LTE01)
Before Using Your DVD player
If your TV has AUDIO/VIDEO input jacks, see
the section "Connections" on pages 6-7. If not,
it is still possible to connect this DVD player to
your TV by using a STEREO AUDIO/VIDEO
RF Modulator (commercially available.) In this
case, follow the instructions below.
1) Connect the AUDIO/VIDEO output jacks of
this DVD player to the AUDIO/VIDEO input
jacks of your RF Modulator by audio and
video cables.
2) The antenna input jack of your TV may
have been already occupied. If so, discon-
nect the RF cable from your TV, and then
connect the RF cable to your RF Modulator
(usually marked "ANT IN".)
3) Connect your RF modulator to your TV by
another RF cable.
4) Set your RF modulator's channel 3/4 switch
to either 3 or 4, whichever the TV channel
is least used in your area. If your RF modu-
lator has a Modulator/Antenna switch, set it
according to your RF modulator's manual.
5) Turn on your TV and choose the same
channel as you set the RF modulator's
channel 3/4 switch to.
For more details, follow the instructions
supplied with the RF Modulator.
Antenna
Cable
Signal
Stereo Audio/Video RF Modulator
(commercially available)
AC 120V
ANT IN
CHANNEL
TO TV
VIDEO
3
4
2
If you need additional operating assistance after
reading this owner's manual or to order replace-
ment accessories, please call
TOLL FREE : 1-800-968-3429
or visit our web site at http://www.funai-corp.com
• Owner's Manual
(0VMN04009)
Owner's Manual
Hint
Hint
The quality of pic-
•
ture may become
poor if this DVD
player is connected
to an RF Modulator.
(Back of DVD player)
AUDIO OUT
L
Y
C
R
/P
R
COMPONENT
VIDEO OUT
DIGITAL AUDIO OUT
COAXIAL
R
VIDEO
C
B
/P
B
S-VIDEO
OUT
OUT
1
AUDIO
R
L
Audio/Video
Cables
(Supplied)
Antenna in jack
RF Cable (Not supplied)
3
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
