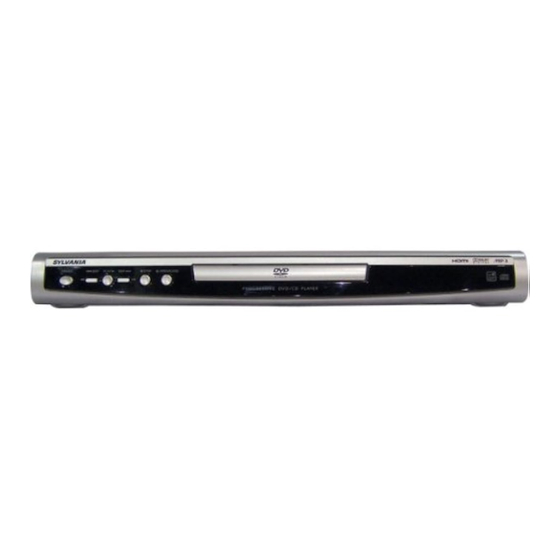

Dvd/cd player
Hide thumbs Also See for DVL1000G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
Owner's Manual
Please read before using this unit.
DVD/CD Player
DVL1000G
Supplied Accessories
Remote control
Audio/Video cables
(NB082UD) with
(WPZ0102TM015/
two AA batteries
WPZ0102LTE01/
WPZ0102CAB01)
Connection to RF Modulator
If your TV has AUDIO/VIDEO input jacks, see the section
"Connections" on page 6. If not, it is still possible to
connect this unit to your TV by using a STEREO AUDIO/
VIDEO RF modulator (commercially available). In this
case, follow the instructions below.
1) Connect the AUDIO/VIDEO output jacks of this unit to the
AUDIO/VIDEO input jacks of your RF modulator by
Audio / Video cables.
2) The antenna input jack of your TV may have been already
occupied. If so, disconnect the RF cable from your TV and
then connect the RF cable to your RF modulator (usually
marked "ANT IN").
3) Connect your RF modulator to your TV by another RF
cable.
4) Set your RF modulator's channel 3/4 switch to either 3 or
4, whichever the TV channel is least used in your area. If
your RF modulator has a modulator/antenna switch, set it
according to your RF modulator's manual.
5) Turn on your TV and choose the same channel as you set
the RF modulator's channel 3/4 switch to.
For more details, follow the instructions supplied with the
RF modulator.
If your TV does not have AUDIO / VIDEO input jack.
Antenna
Cable
Signal
STEREO AUDIO / VIDEO RF Modulator
(commercially available)
AC 120V
ANT IN
CHANNEL
TO TV
VIDEO
AUDIO
3
4
R
2
3
Hint
• The quality of picture may become poor if the unit is connected to
an RF modulator.
If you need additional operating assistance
after reading this owner's manual, please call
TOLL FREE : 1-800-968-3429
or visit our web site at
http://www.SylvaniaConsumerElectronics.com
Owner's Manual
(1VMN22602)
Owner's Manual
(Back of this unit)
L
Y
C
R
/P
R
COMPONENT VIDEO OUT
COAXIAL
R
AUDIO
VIDEO
DIGITAL
S-VIDEO
C
B
/P
B
HDMI OUT
OUT
OUT
AUDIO OUT
OUT
(Back of TV)
1
L
Audio/Video
Cables
(Supplied)
RF Cable (Not supplied)
Antenna in jack
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Table of Contents

Precautions
Laser Safety ....................................................................2
■ Important Safeguards ...................................................3
Location and Handling .....................................................4
Warning of Dew Formation ..............................................4
About Copyright ...............................................................4
Notice for Progressive Scan Outputs ..............................4
Symbols Used in This Manual .........................................4
Maintenance ....................................................................4
■ About the Media.............................................................5
Playable Media ................................................................5
Unplayable Media ............................................................5
■ Connections ...................................................................6
Connection to a TV ..........................................................6
Connection to an Audio System ......................................8
Rear Terminals ................................................................8
Front Panel Display .........................................................9
HDMI Setup .....................................................................9
■ About the Remote Control ...........................................10
Remote Control ..............................................................10
■ Playback ........................................................................11
■ MP3/WMA Playback ......................................................12
■ Search Functions .........................................................12
Using Track Search ........................................................12
Using Title / Chapter Search ..........................................12
Using Time Search .........................................................12
■ On-Screen Display ........................................................13
■ Marker Setup .................................................................14
Repeat Playback ............................................................15
Repeat A-B Playback .....................................................15
Random Playback ..........................................................15
Programmed Playback ...................................................15
■ Special Settings ............................................................16
Subtitle Language ...........................................................16
Audio Language .............................................................16
Camera Angles ...............................................................16
Black Level Setting .........................................................16
Stereo Sound Mode........................................................16
Virtual Surround ..............................................................16
■ DVD Setup .....................................................................17
LANGUAGE Setting .......................................................17
DISPLAY Setting ............................................................18
AUDIO Setting ................................................................19
PARENTAL Setting ........................................................20
OTHERS Setting ............................................................20
■ Troubleshooting Guide ................................................21
■ Specifications ...............................................................22
■ Language Code List .....................................................22
■ Limited Warranty ..........................................................22
■ Español ..........................................................................23
■ Quick Use Guide ...........................................Back Cover

Advertisement

Table of Contents
loading

Related Manuals for Sylvania DVL1000G

Summary of Contents for Sylvania DVL1000G

  • Page 1: Table Of Contents

    Owner’s Manual Please read before using this unit. DVD/CD Player DVL1000G Supplied Accessories Remote control Audio/Video cables (NB082UD) with (WPZ0102TM015/ two AA batteries WPZ0102LTE01/ WPZ0102CAB01) Connection to RF Modulator If your TV has AUDIO/VIDEO input jacks, see the section “Connections” on page 6. If not, it is still possible to connect this unit to your TV by using a STEREO AUDIO/ VIDEO RF modulator (commercially available).

  • Page 2: Laser Safety

    WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS 1) Read Instructions - All the safety and operating instructions should be read before the product is operated. 2) Retain Instructions - The safety and operating instructions should be retained for future reference. 3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

  • Page 4: Location And Handling

    Location and Handling • Do not stand this unit up vertically. Install this unit in a horizontal and stable position. Do not place anything directly on top of this unit. Do not place this unit directly on top of the TV. •...

  • Page 5: About The Media

    About the Media Playable Media Playable Mark (logo) discs DVD-Video *1, 2, 4, 6 DVD-R DVD-RW *1, 3, 4, 5, 6, 7, 9, 10 DVD+R DVD+RW *1, 3, 4, 5, 6, 8, 9, 10 Audio CD *4, 6 CD-R CD-RW *4, 5, 6, 9, 10 is a trademark of DVD Format/Logo Licensing Corporation.

  • Page 6: Setup

    Connections If your TV has AUDIO/VIDEO input jacks, see the following instructions. If not, see the section “Connection to RF Modulator” on the front page. Connection to a TV Basic Audio AUDIO IN Audio cable (supplied) This unit AUDIO VIDEO AUDIO AUDIO OUT (Analog)

  • Page 7: Connection To A Tv With An Hdmi Compatible Port

    Connection to a TV with an HDMI Compatible Port A simple 1-cable connection with a device having an HDMI (High-Definition Multimedia Interface) connector allows digital transfer of the digital images of DVD-Video and other sources, DVD-Video, and the multi-channel sound of DVD-Audio. To HDMI Input Connector A display equipment with an HDMI compatible port...

  • Page 8: Connection To An Audio System

    Connection to an Audio System Playing 2 channel audio Stereo system AUDIO Audio cable (supplied) This unit AUDIO OUT (Analog) Hint • Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers. Rear Terminals AUDIO OUT jacks Connect the supplied audio cables here through the audio in jacks of a...

  • Page 9: Front Panel Display

    Front Panel Display POWER SKIP PLAY SKIP STOP OPEN/CLOSE Displays a type of the disc which is inserted on the tray. • DVD: DVD disc Lights up when the • CD: Audio CD, MP3, WMA A-B repeat function is on. Lights up when the repeat function is on.

  • Page 10: About The Remote Control

    About the Remote Control Remote Control POWER OPEN/CLOSE SEARCH DISPLAY MODE AUDIO SUBTITLE ANGLE REPEAT CLEAR HDMI PAUSE SKIP SLOW PLAY STOP SETUP TOP MENU MENU MODE ENTER ZOOM RETURN Installing the Batteries for the Remote Control Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

  • Page 11: Functions

    Operations described in this section are mainly based on the remote control use. Some operations can be carried out on main unit. Playback Before: Turn on the TV, amplifier and any other equipments which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel. 1 Press [POWER] to turn on the DVD/CD Player.

  • Page 12: Mp3/Wma Playback

    MP3/WMA Playback MP3/WMA is a method of compressing files. You can copy MP3/WMA files on CD-R/RWs from the computer and play the files on this unit. Insert an MP3/WMA-format disc, then the file list will automatically appear on the TV screen.

  • Page 13: On-Screen Display

    On-Screen Display You can check the information about the current disc by pressing [DISPLAY] on the remote control. Angle icon appears only when avail- able on the DVD. Current playback status 11/16 0:00:00 - 0:03:30 Remaining time of the current chapter Elapsed time of the current chapter CH(Chapter): Current chapter number / Total chapters...

  • Page 14: Marker Setup

    Marker Setup This feature allows you to assign a spe- cific point on a disc to be called back later. To set a marker PLAY SEARCH Press repeatedly until the MODE marker display appears. ENTER ENTER ENTER ENTER To return to the marker later SEARCH MODE...

  • Page 15: Repeat / Random / Programmed Playback

    Repeat / Random / Programmed Playback Repeat Playback Repeat function is available only during playback. PLAY REPEAT <Example : DVD> Each time you press [REPEAT], repeat function changes as example below. (repeat off) CHAPTER (current chapter repeat) TITLE (current title repeat) (repeat off) TRACK (current track repeat)

  • Page 16: Special Settings

    Special Settings Subtitle Language This unit allows you to select a subtitle language (if available) during DVD playback. PLAY 1.ENG/6 SUBTITLE Each time you press [SUBTITLE], subtitle language changes as example below. (no subtitles) (English subtitles) (French subtitles) To set subtitle ON/OFF PLAY 1.ENG/6 SUBTITLE...

  • Page 17: Dvd Setup

    DVD Setup QUICK SETUP Menu You can select the “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE” or “DOLBY DIGITAL” from the QUICK SETUP menu quickly. SETUP STOP <SETUP MENU> Confirm that “QUICK” is selected. QUICK SETUP PLAYER MENU ENGLISH TV ASPECT 4:3 LETTER BOX PROGRESSIVE DOLBY DIGITAL BITSTREAM...

  • Page 18: Display Setting

    DISPLAY Setting You can change the display functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17. Select the desired item. TV ASPECT: (Default: 4:3 LETTER BOX) See Hint on the right. ENTER TV ASPECT STILL MODE PROGRESSIVE PROGRESSIVE MODE FORMAT...

  • Page 19: Audio Setting

    AUDIO Setting Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD discs. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17. Select the desired item. DRC (Dynamic Range Control): (Default: ON) Set to “ON”...

  • Page 20: Parental Setting

    PARENTAL Setting Parental Control limits the disc viewing that exceed your settings. (An incorrect password will not be acceptable.) This feature prevents your children from viewing inappropriate materials. Parental Levels Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set.

  • Page 21: Reset To The Default Setting (Except For Parental Setting)

    Reset to the Default Setting (Except for PARENTAL Setting) SETUP STOP <SETUP MENU> QUICK SETUP PLAYER MENU ENGLISH TV ASPECT 4:3 LETTER BOX PROGRESSIVE DOLBY DIGITAL BITSTREAM Troubleshooting Guide If the unit does not perform properly when operated as instructed in this Owner’s Manual, check the unit consulting the following checklist. Problem No power No sound or picture...

  • Page 22: Specifications

    Specifications Output signal format: NTSC color Power source: 120 V AC +/- 10%, 60 Hz +/- 0.5% Power consumption: 12 W (standby: 0.8 W) Language Code List Language Code Language French [FRE] Abkhazian 4748 Frisian Afar 4747 Galician Afrikaans 4752 Georgian Albanian 6563...

  • Page 23: Español

    Español Conexiones Si su televisor tiene entradas de AUDIO/VIDEO vea la sección “Connection to a TV” en la página 6 en el Manual de Manejo. En caso contra- rio, vea la sección “Connection to RF Modulator” en la página del frente en el Manual de Manejo.

  • Page 24: Quick Use Guide

    Quick Use Guide Connections If your TV has AUDIO/VIDEO input jacks, see the section “Connection to a TV” on page 6 of the Owner’s Manual. If not, see the section “Connection to RF Modulator” on the front page of the Owner’s Manual.
