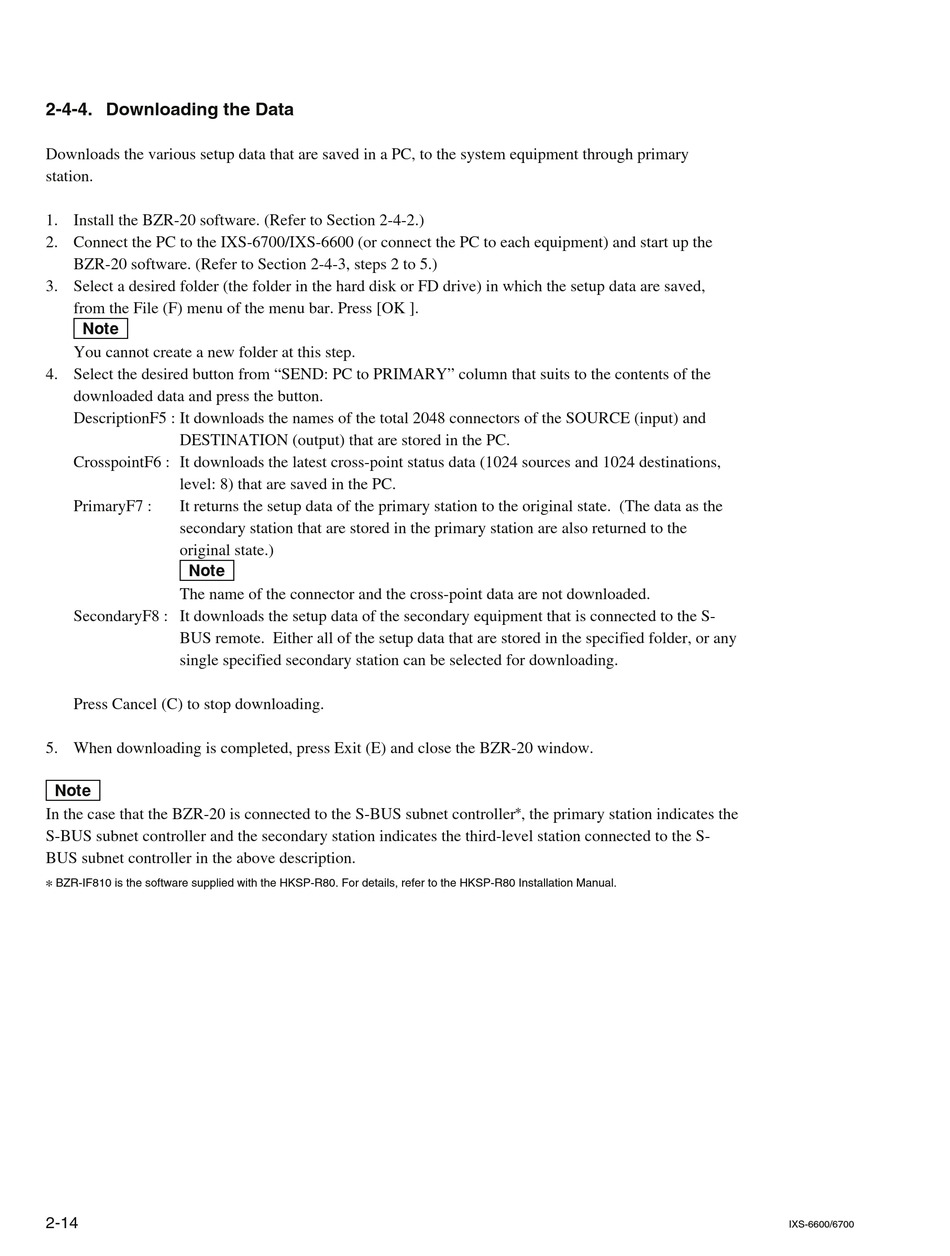

2-4-4. Downloading the Data
Downloads the various setup data that are saved in a PC, to the system equipment through primary
station.
1. Install the BZR-20 software. (Refer to Section 2-4-2.)
2. Connect the PC to the IXS-6700/IXS-6600 (or connect the PC to each equipment) and start up the
BZR-20 software. (Refer to Section 2-4-3, steps 2 to 5.)
3. Select a desired folder (the folder in the hard disk or FD drive) in which the setup data are saved,
from the File (F) menu of the menu bar. Press [OK ].
n
You cannot create a new folder at this step.
4. Select the desired button from "SEND: PC to PRIMARY" column that suits to the contents of the
downloaded data and press the button.
DescriptionF5 : It downloads the names of the total 2048 connectors of the SOURCE (input) and
DESTINATION (output) that are stored in the PC.
CrosspointF6 : It downloads the latest cross-point status data (1024 sources and 1024 destinations,
level: 8) that are saved in the PC.
PrimaryF7 :
It returns the setup data of the primary station to the original state. (The data as the
secondary station that are stored in the primary station are also returned to the
original state.)
n
The name of the connector and the cross-point data are not downloaded.
SecondaryF8 : It downloads the setup data of the secondary equipment that is connected to the S-
BUS remote. Either all of the setup data that are stored in the specified folder, or any
single specified secondary station can be selected for downloading.
Press Cancel (C) to stop downloading.
5. When downloading is completed, press Exit (E) and close the BZR-20 window.
n
In the case that the BZR-20 is connected to the S-BUS subnet controller
S-BUS subnet controller and the secondary station indicates the third-level station connected to the S-
BUS subnet controller in the above description.
* BZR-IF810 is the software supplied with the HKSP-R80. For details, refer to the HKSP-R80 Installation Manual.
2-14
*
, the primary station indicates the
IXS-6600/6700
