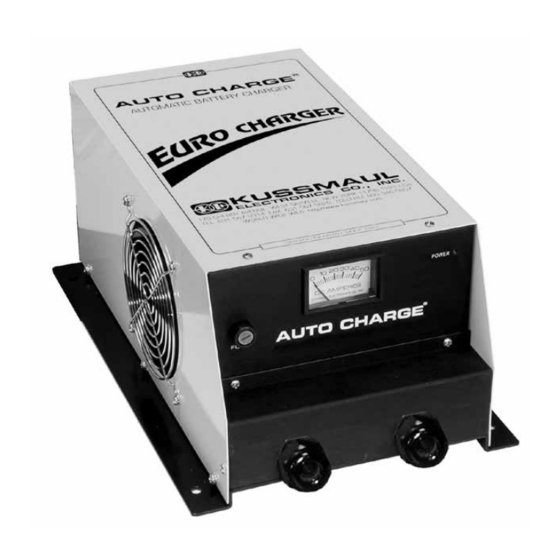

EURO CHARGER I VHO
AUTOMATIC BATTERY CHARGER
This charger is designed for vehicles with dual electrical systems,
File: IM_091-162-XX
Rev: REV B
Revised By: PS
Date: 5-24-26
170 Cherry Avenue
West Sayville, NY 11796
www.kussmaul.com
INSTRUCTION MANUAL
MODEL #:
NOTE :
Each battery is individually charged
3 YEAR WARRANTY
#091-162-XX
scan using your mobile
device for more information
Ph: 800-346-0857
Fax: 631-567-5826
sales@kussmaul.com
Advertisement
Table of Contents
Related Manuals for KUSSMAUL EURO CHARGER I VHO
Summary of Contents for KUSSMAUL EURO CHARGER I VHO
- Page 1 INSTRUCTION MANUAL EURO CHARGER I VHO AUTOMATIC BATTERY CHARGER MODEL #: #091-162-XX NOTE : This charger is designed for vehicles with dual electrical systems, Each battery is individually charged File: IM_091-162-XX Rev: REV B scan using your mobile Revised By: PS...
-
Page 2: Important Safety Instructions
4. CAUTION: (230 VAC applications only): If AC input is provide from a source consisting of two HOT or LINE leads (phase-to-phase 230 VAC input voltage); an external fuse or circuit breaker must be used to protect both hot leads. 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com... - Page 3 • Input voltage, switch selectable, 115 volt or 230 volt. • Output voltage regulated, eliminates overcharging battery. • Output, current limited to protect charger from overloading. • Optional charge indicator. 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com...
-
Page 4: Wiring Specifications
091-TERFER812 091-TERFEB612 None * Consult factory if length of wire to battery is longer than 20 feet ** Supplied with wire terminal hardware for 10 foot installation 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com... -
Page 5: Installation Wiring Diagram
(White 14AWG) LINE (Black 14AWG) AC CONNECTIONS TO THE CHARGER SHALLCOMPLY WITH UL RECOMMENDATIONS, NEC, or NFPA STANDARDS 80 Amp Waterproof Circuit Breaker For model 091-162-12 Kussmaul Part #: 090-0080-0 40 Amp For model 091-162-24 use Kussmaul Part #: 090-0040-0... -
Page 6: Specifications
SPECIFICATIONS Input Power: 230/115 Volts, 50/60 Hz, 5/10 Amperes Input Fuse: 15 Ampere @ 115V; 10 Ampere @ 230V Output Current: Amperes Max (-12) @ 40 Amperes; (-24) @ 20 Amps Float Voltage: (-12) = 13.25 Volts; (-24) = 26.5 Volts Remote Sensing: Electronic, sense wires not required Torque: DC output connector: 20 in. -
Page 7: Optional Accessories
• Protects high amperage circuits • Latch arms resets breaker after overload • Cannot be held in ON position if short remains on circuit • Waterproof - Ideal for truck applications 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com... -
Page 8: Installation Record
VEHICLE OWNER _______________________________________________________ WARRANTY POLICY All products of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.
