Installing/Removing Power Modules

The RUGGEDCOM RX1510 supports dual redundant power supply modules.
1
2
RUGGEDCOM RX1510
Installation Manual, 12/2019, C79000-G8976-1055-16
Insert the new module into the slot.
Module
1
Chassis
2
Screw
3

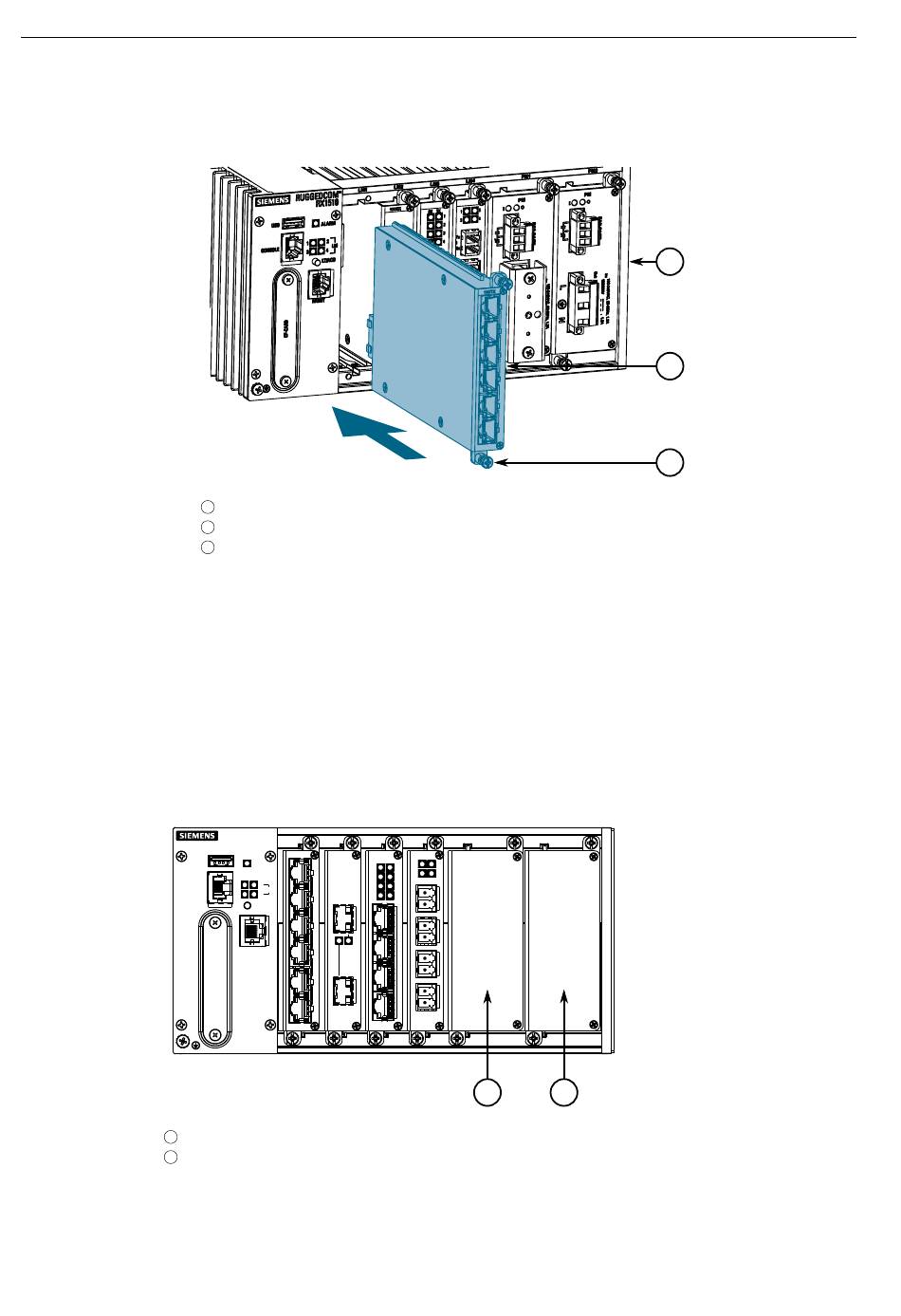

Figure 4.3 Installing a Module
Tighten the screws to secure the module.
[Optional] If necessary, install the device in the rack.
Slot PS1
Slot PS2
4.3 Installing/Removing Power Modules
1 2
Modules
1
2
3
