Before using this product, be sure to read "Read this first!" (pages 6, 24 to 27).
This "Basics" describes the procedure for basic operation and installation.
ENGLISH
For more information, please visit the Panasonic website (https://pro-av.panasonic.
Basics
net/manual/en/index.html), and refer to the Operating Instruction (Operations and
Settings).
Avant d'utiliser cet appareil, assurez-vous de lire la section « Lire ces informations en
premier ! » (pages 6, 28 à 30).
FRANÇAIS
Pour de plus amples informations sur le mode d'emploi, visiter le site Web de Panasonic
(https://pro-av.panasonic.net/manual/en/index.html) et consulter le mode d'emploi.
Antes de usar este producto, asegúrese de leer "Lea esto primero" (páginas 7, 31 a 33).
Si desea obtener más información acerca de las instrucciones de funcionamiento,
ESPAÑOL
visite el sitio web de Panasonic (https://pro-av.panasonic.net/manual/en/index.html)
y consulte las instrucciones de funcionamiento.
Bitte lesen Sie sorgfältig die „Bitte lesen Sie zuerst diesen Hinweis!" vor der Nutzung
dieses Produkts. (Seiten 7, 34 bis 36).
DEUTSCH
Weitere Informationen zu den Bedienungsanleitungen finden Sie auf der Panasonic-Webseite
(https://pro-av.panasonic.net/manual/en/index.html) und in den Bedienungsanleitungen.
Prima di utilizzare il prodotto, assicurarsi di leggere "Leggere prima quanto segue!"
(pagine da 8, 37 a 39).
ITALIANO
Per maggiori informazioni sulle istruzioni per l'uso, per favore visitare il sito web
Panasonic (https://pro-av.panasonic.net/manual/en/index.html), e fare riferimento
alle istruzioni per l'uso.
Перед использованием данного прибора ознакомьтесь с информацией в разделе
«Прочитайте нижеследующее до начала эксплуатации!» (стр. 8, 40 до 42).
РУССКИЙ
Для получения дополнительной информации из инструкций по эксплуатации посетите
веб-сайт Panasonic (https://pro-av.panasonic.net/manual/en/index.html) и обратитесь к
инструкциям по эксплуатации.
AV0619MY0 -PS
Printed in Taiwan
Operating Instructions
Installation Instructions provided
Model No.
Model No.

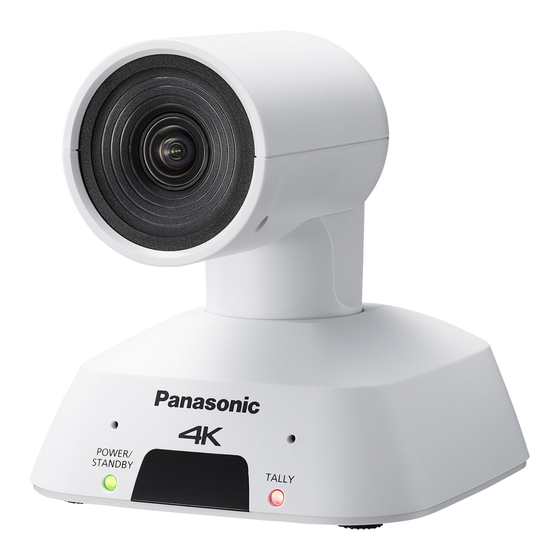

4K Integrated Camera
AW-UE4KG
AW-UE4WG
Basics
ENGLISH
DVQX1992ZA
Advertisement
Table of Contents
Related Manuals for Panasonic AW-UE4 Series
Summary of Contents for Panasonic AW-UE4 Series
-
Page 1: Operating Instructions
! » (pages 6, 28 à 30). FRANÇAIS Pour de plus amples informations sur le mode d’emploi, visiter le site Web de Panasonic (https://pro-av.panasonic.net/manual/en/index.html) et consulter le mode d’emploi. Antes de usar este producto, asegúrese de leer “Lea esto primero” (páginas 7, 31 a 33). - Page 2 Za najnovejše varnostne informacije in pomembna obvestila v zvezi z izdelkom Slovenščina obiščite naslednje spletno mesto. Besök följande webbplats för senaste säkerhetsinformation och viktiga meddelanden Svenska om produkten. اﻟﻌرﺑﯾﺔ .زر ﻣوﻗﻊ اﻟوﯾب اﻟﺗﺎﻟﻲ ﻟﻣﻌرﻓﺔ أﺣدث ﻣﻌﻠوﻣﺎت اﻟﺳﻼﻣﺔ واﻹﺧطﺎرات اﻟﮭﺎﻣﺔ ﺑﺷﺄن اﻟﻣﻧﺗﺞ https://pro-av.panasonic.net/manual/en/index.html...
-
Page 3: Trademarks And Registered Trademarks
Trademarks and Registered Trademarks Microsoft® , Windows® , Windows® 7, Windows® 10, Microsoft Edge, Internet Explorer® are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Apple, Mac, macOS, OS X and Safari are registered trademarks of Apple Inc., in the United States and other countries. -
Page 4: Table Of Contents
Contents Read this first! ......................6 Lire ces informations en premier! ................6 Lea esto primero! ....................... 7 Bitte lesen Sie zuerst diesen Hinweis!............... 7 Leggere prima quanto segue! ..................8 Прочитайте нижеследующее до начала эксплуатации! ........8 Installation Precautions ..................... 9 How to Connect and Install the Unit ................ - Page 5 Operating Precautions ..................... 48 Parts and Functions ....................51 Camera Unit ....................51 Tilting the Camera Up and Down ..............52 Panning the Camera Right and Left ............... 53 Wireless Remote Control ..................54 Wireless Remote Control (optional accessory) ............56 Network Settings......................
-
Page 6: Read This First
Read this first! ENGLISH WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. WARNING: Installation should only be performed by qualified installation personnel. Improper installation may result in the entire apparatus falling down and causing injury. CAUTION: When mounting this unit on a ceiling etc., be sure to use the supplied Wall Mount for correct installation. -
Page 7: Lea Esto Primero
Lea esto primero! ESPAÑ OL ADVERTENCIA: Para evitar heridas, este aparato debe estar firmemente instalado al piso/pared de acuerdo con las instrucciones de instalación. ADVERTENCIA: La instalación solamente debe llevarla a cabo personal cualificado. Una instalación incorrecta podrí a provocar la caí da del dispositivo y causar lesiones. PRECAUCIÓ... -
Page 8: Leggere Prima Quanto Segue
Leggere prima quanto segue! ITALIANO AVVISO: Per prevenire ferite, questo apparecchio deve essere montato saldamente al pavimento/muro in conformità alle istruzioni di installazione. AVVISO: L’installazione deve essere realizzata unicamente da tecnici qualificati. Un’installazione incorretta può risultare nella caduta dell’apparecchio con conseguenti danni alle persone. -
Page 9: Installation Precautions
Installation Instructions Installation Precautions Panasonic does not accept any responsibility for accident or damage during installation if procedure in this manual is not followed. To installation personnel Read the “Installation Instructions” thoroughly and then perform the operation correctly and safely. - Page 10 Do not install or use the unit in Be absolutely sure to use the the following kinds of locations. supplied brackets and screws to On walls (where the unit would be install the camera. Do not mount the unit by employing installed sideways) ...
- Page 11 When the unit is no longer going Power switch to be used, do not leave it lying This unit does not have a power switch. around, but be absolutely sure to Before proceeding with maintenance, be dispose of it properly. absolutely sure to disconnect the power plug from the power outlet.
-
Page 12: Network Settings
PoE power supplies Network settings Use a PoE [IEEE802.3af] compatible hub or The network function of this unit does not power supply device. work unless an initial account is set up (except when using the Easy IP Setup Software. -
Page 13: How To Connect And Install The Unit
Installation Instructions How to Connect and Install the Unit Be absolutely sure to read through the “Information for Your Safety” and “Installation precautions”. 1) Connect and install in the following order: 2) Checking the installation location 3) Preparing the power source 4) Ceiling-suspended Installation/Standing Installation/Mount to a Tripod 5) Connecting the cables Checking the Installation Location... -
Page 14: Preparing The Power Source
This product is intended to be supplied by a UL Listed Power Adapter or DC power source marked "L.P.S." (or "Limited Power Source"), rated 5Vdc, 1.0A minimum, Tma =40 degree C minimum. If need further assistance, please contact Panasonic for further information. Ceiling Mount Installation ... - Page 15 Use M4 10mm length screw (included) to secure the L-mount kit on the ceiling. Screw: M4, 10mm length, bind-head Clamping torque: 1.47N · m(15kgf · cm) Slide the camera with mount kit is installed into L-mount as figure shown Use M4 5mm length screw (included) to secure the camera on the L-mount kit. Screw: M4, 5mm length, bind-head Clamping torque: 1.47N ·...
- Page 16 Mount the drop-prevention wire to the ceiling. Attach the drop-prevention wire to the drop-prevention wire-mounting portion of the unit and secure to the ceiling panel with screws. The drop-prevention wire is designed to be used for installation where the unit is suspended from an overhead surface so do not subject it to the weight of units other than the unit.
-
Page 17: When Using The Wv-Q105A (Optional Accessory)
When using the WV-Q105A (optional accessory) It is recommended that you provide an inspection opening or other such space for access purposes in the area near where the equipment is installed in order to facilitate installation and the wiring connections work. Before mounting the mount bracket, check that the installation location is strong enough to withstand the total mass (approx. -
Page 18: Stand-Alone Installation
Installation Instructions Stand-alone installation (when the mount bracket is not going to be used) When installing the unit on a desktop Place the unit flat on the surface. [Note] Install the unit in a stable location which will not be susceptible to shaking. If the unit is installed in a location which is susceptible to shaking, this will cause the unit’s images to shake in turn. -
Page 19: Connecting Cables
Connecting Cables [Note] After installing the unit on a ceiling, secure the drop-prevention wire in the space above the ceiling panel and connect the LAN cable, the HDMI cable or USB cable. Please use “High Speed HDMI Cables” that have the HDMI logo (as show below the HDMI connector). -
Page 20: Connecting With Hdmi Monitor
Installation Instructions Connecting with HDMI Monitor A. HDMI cable: An HDMI video/audio signal is output. B. Wireless remote control (optional) C. USB cable(connect power adapter for external power supply) Please use “High Speed HDMI Cables” that have the HDMI logo (as shown below the HDMI [Note] connector). -
Page 21: System Example 1 (Ip Control, Poe)
System example 1 (IP control, PoE) A. HDMI/SDI converter B. Compact Live Switcher (AW-HS50) C. Personal computer D. PoE switching hub E. Monitor 1/Monitor 2 [Note] Use a category 5e cable for the LAN cable... -
Page 22: System Example 2 (Ip Image Transmission, Poe)
System example 2 (IP image transmission, PoE) : LAN cable A. LAN connector B. Personal computer C. PoE compatible switching hub or PoE injector A A A [Note] The unit is capable of transmitting IP images to only one terminal. -
Page 23: System Example 3 (Usb Connection)
System example 3 (USB connection) : USB cable(with power supply from connected device) A. Personal computer communication software... -
Page 24: Read This First
Operating Instructions Read this First! WARNING: To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture. To reduce the risk of fire or electric shock, keep this equipment away from all liquids. Use and store only in locations which are not exposed to the risk of dripping or splashing liquids, and do not place any liquid containers on top of the equipment. - Page 25 FCC NOTICE (USA) Supplier’s Declaration of Conformity Trade Name: Panasonic Model Number: AW-UE4KG, AW-UE4KGN, AW-UE4WG, AW-UE4WGN Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102 Support contact: 1-800-524-1448 This device complies with part 15 of the FCC Rules.
- Page 26 EMC NOTICE FOR THE PURCHASER/USER OF THE APPARATUS 1. Pre-requisite conditions to achieving compliance with the above standards <1> Peripheral equipment to be connected to the apparatus and special connecting cables The purchaser/user is urged to use only equipment which has been recommended by us as peripheral equipment to be connected to the apparatus.
- Page 27 Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. Manufactured by: Panasonic Corporation, Osaka, Japan Importer’s name and address of pursuant to EU rules: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany ...
-
Page 28: Lire Ces Informations En Premier
Lire ces informations en premier! FRANÇ AIS AVERTISSEMENT: Pour réduire les risques d’incendie ou de choc électrique, évitez d’exposer cet appareil à la pluie ou à l’humidité. Pour réduire tout risque de feu ou de choc électrique, éloigner l’appareil des liquides — utiliser et ranger uniquement dans un endroitne risquant pas de recevoir des gouttes ou d’être aspergé... - Page 29 NOTE D’INFORMATION SUR LA CEM POUR L’ACHETEUR/UTILISATEUR DE L’APPAREIL 1. Conditions requises pour obtenir la conformité aux normes ci-dessus <1> Equipements périphériques à connecter à l’appareil et câbles de connexion spéciaux L’acheteur/utilisateur est invité à utiliser uniquement des équipements recommandés par ...
- Page 30 Le non-respect de la réglementation relative à l’élimination des déchets est passible d’une peine d’amende. Fabriqué par : Panasonic Corporation, Osaka, Japon Nom et adresse de l’importateur en accord avec les règlements de l’Union Européenne : Panasonic Marketing Europe GmbH...
-
Page 31: Lea Esto Primero
Lea esto primero! ESPAÑ OL ADVERTENCIA: Para reducir el riesgo de producir un incendio o recibir una descarga eléctrica, no exponga este equipo a la lluvia ni a la humedad. Para reducir el riesgo de incendio o sacudida eléctrica, mantenga este equipo alejado de todos los lí... - Page 32 AVISO SOBRE CEM PARA EL COMPRADOR/USUARIO DEL APARATO 1. Condiciones previas para conseguir la conformidad con las normas mencionadas <1> Equipo periférico por conectar al aparato y cables de conexió n especiales Se recomienda que el comprador/usuario utilice solo equipos recomendados por nosotros como equipos periféricos que se pueden conectar al aparato.
- Page 33 Puede haber sanciones por una incorrecta eliminación de este residuo, de acuerdo con la legislación nacional Fabricado por: Panasonic Corporation, Osaka, Japón Nombre y dirección del importador conforme a las normas de la UE: Panasonic Marketing Europe GmbH...
-
Page 34: Bitte Lesen Sie Zuerst Diesen Hinweis
Bitte lesen Sie zuerst diesen Hinweis! DEUTSCH WARNUNG: Zur Reduzierung der Gefahr von Brand und elektrischem Schlag dieses Gerät weder Nässe noch Feuchtigkeit aussetzen. Um Brand- oder Stromschlaggefahr zu reduzieren, muss dieses Gerät von allen Flüssigkeiten ferngehalten werden. Vermeiden sie Gebrauch und Lagerung des Gerätes an Orten, an denen die Gefahr besteht, dass es mit Flüssigkeiten betropft oder bespritzt wird, und stellen sie keine Flüssigkeitsbehälter auf das Gerät. - Page 35 EMV-HINWEIS FÜ R DEN KÄ UFER/ANWENDER DES GERÄ TS 1. Erforderliche Bedingungen zur Einhaltung der oben genannten Standards <1> An das Gerät angeschlossene Geräte und spezielle Verbindungskabel Der Käufer/Anwender sollte nur Geräte verwenden, die von uns als Zusatzgeräte für den Anschluss an das Gerät empfohlen wurden.
- Page 36 Recycling, wenden Sie sich bitte an Ihren örtlichen Abfallentsorgungsdienstleister, Händler oder Zulieferer. Gemäß Landesvorschriften können wegen nicht ordnungsgemäß er Entsorgung dieses Abfalls Strafgelder verhängt werden Hergestellt von: Panasonic Corporation, Osaka, Japan Name und Adresse des Importeurs gemäß EU-Bestimmungen: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Deutschland ...
-
Page 37: Leggere Prima Quanto Segue
Leggere prima quanto segue! ITALIANO AVVISO: Per ridurre il rischio d’incendio o di scosse, non esporre questo prodotto alla pioggia o all’umidità. Per ridurre il rischio d’incendio o di scosse elettriche, tenere questo prodotto lontano da tutti i liquidi. - Page 38 AVVISO EMC PER L’ACQUIRENTE/UTENTE DELL’APPARAT 1. Prerequisiti essenziali per la conformità agli standard sopra menzionati <1> Periferiche da collegare all’apparato e cavi di collegamento speciali Si raccomanda all’acquirente/utente di collegare l’apparato esclusivamente con periferiche da noi approvate. Si raccomanda all’acquirente/utente di utilizzare esclusivamente i cavi di collegamento descritti in basso.
- Page 39 Lo smaltimento non corretto di questi rifiuti potrebbe comportare sanzioni in accordo con la legislazione nazionale Fabbricato da: Panasonic Corporation, Osaka, Giappone Nome e indirizzo dell'importatore in conformità con le normative UE: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germania ...
-
Page 40: Прочитайте Нижеследующее До Начала Эксплуатации
Прочитайте нижеследующее до начала эксплуатации! РУССКИЙ ОСТОРОЖНО: Для снижения риска возникновения пожара или удара электрическим током не подвергайте данное оборудование воздействию дождя или влаги. Для снижения риска возникновения пожара или удара электрическим током держите данное оборудование подальше от любых жидкостей. Используйте и храните его только в... - Page 41 ПРИМЕЧАНИЕ EMC ДЛЯ ПОКУПАТЕЛЯ/ПОЛЬЗОВАТЕЛЯ 1. Условия, которые необходимо соблюдать для достижения соответствия указанным стандартам <1> Периферийное оборудование, которое подключается к устройству, и специальные соединительные кабели Настоятельно рекомендуется использовать только то оборудование, которое поставляется как периферийные устройства для подключения к данному аппарату. ...
- Page 42 Інформація для покупця Виробник: Панасонік Корпорейшн Panasonic Corporation Адреса виробника: Кадома, Осака, Японія Kadoma, Osaka, Japan Країна походження: Тайвань Taiwan Імпортер: ТОВ “ПАНАСОНІК УКРАЇНА ЛТД” Адреса імпортера: провулок Охтирський, будинок 7, місто Київ, 03022, Україна Примітки: Термін служби виробу 7 років...
-
Page 43: Characteristics
Operating Instructions Characteristics Overview This 4K camera features ultra-wide angle 111° lens, and uses a 1/2.5” type MOS sensor and supports wider video output in various formats including 4K / 30p output. A single cable solution with one Ethernet cable is enabled, and compatibility with remote cameras is enhanced by protocol support such as RTMP. -
Page 44: Required Personal Computer Environment
[Note] Depending on the software version of the unit, an update may be necessary. For the latest information on compatible operating systems, and web browsers, visit the support desk at the following website: https://pro-av.panasonic.net/... -
Page 45: Disclaimer Of Warranty
Disclaimer of Warranty IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: 1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;... -
Page 46: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. Leakage or theft of information through this unit Use of this unit for illegal operations by persons with malicious intent ... -
Page 47: Accessories
Operating Instructions Accessories Check the accessories before using this unit. After removing the product from its container, Optional accessories dispose of the packing materials in an appropriate manner. Wireless remote control USB Cable AW-RM50G (Size "AA" dry battery x2, obtained separately) ... -
Page 48: Operating Precautions
Operating Instructions Operating Precautions Shoot under the proper lighting When using the automatic conditions. functions To produce pictures with eye-pleasing In the [Scene] such as the camera menu, the colors, shoot under the proper lighting initial settings on some items has been set to conditions. -
Page 49: Color Bars
Color bars When the unit is not in use Turn off the unit’s power when it is not in Color bars are used to adjust the color phase, and the widths and positions of these use. When the unit is no longer going to be bars may differ from other models. - Page 50 At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the...
-
Page 51: Parts And Functions
Operating Instructions Parts and Functions Camera Unit 8 9 10 1. Lens 7. LAN indicator(LINK/ACT) 2. Camera head Lights up when data is transmitted/received 3. Internal microphone via LAN. 4. Power status indicator 8. LAN connector - Orange light: Standby mode Use a category 5e or above LAN cable with - Green light: The unit is turned on a maximum length of 100 m (328 ft.) -
Page 52: Tilting The Camera Up And Down
12 13 12. Perpendicular fixing screw 15. Mount hole 13. Horizontal fixing screw [Screw: I-head type, 1/4 x 20 UNC Clamping torque: 1.47N · m(15kgf · cm)] 14. Drop-prevention wire mounting portion Tilting the Camera Up and Down When the perpendicular fixing screw is loosened, the camera can be tilted approximately 25°up or down. -
Page 53: Panning The Camera Right And Left
Panning the Camera Right and Left When the horizontal fixing screw is loosened, the camera can be pan 110° in the horizontal right or left. After adjusting the position of the camera, firmly tighten the screw to fix the camera in position. -
Page 54: Wireless Remote Control
Operating Instructions Wireless Remote Control You can operate the unit with the optional wireless remote control (AW-RM50G). Consult your dealer concerning the purchase of a wireless remote control. Buttons used for operating this unit are described. Signal transmission window ON/STANDBY button Each time this is pressed for 2 seconds, operation switches between turning on the unit‘s power and establishing the standby status. - Page 55 Pan-tilt buttons and menu operation buttons (1)These are used to change the unit’s direction. The unit is tilted in the up/down direction using the [▲] and [▼] buttons and panned in the left/right direction using the [◄] and [►] buttons. The [○] button does not work during tilting and panning.
-
Page 56: Wireless Remote Control (Optional Accessory)
Wireless Remote Control (optional accessory) This unit can be operated by remote control using a wireless remote control (model number: AW-RM50G) purchased separately. Check out the following points before using the wireless remote control. Point the wireless remote control at the unit’s wireless remote control signal light‑sensing area (front side), and operate it within a range of 10 meters (32.8 ft.) from the area. -
Page 57: Network Settings
The settings related to the unit’s network can be established using the Easy IP Setup Software supplied. You can obtain Easy IP Setup Software (EasyIPSetup.exe) by downloading it from the following website: https://pro-av.panasonic.net/ To establish the settings for a multiple number of units, the settings must be selected for each camera involved. ... - Page 58 Click the MAC address/IPv4 address of the camera to be set, and click the [Network settings] button. When a DHCP server is being used, the IP address allocated to the unit can be checked by clicking the [Search] button of the Easy IP Setup Software. ...
-
Page 59: Setting The Initial Account
Setting the Initial Account Set the initial account. In the initial state, the initial account setting screen is displayed when the web screen is displayed. Set a user name and password. [Note] The usable symbols for user name is following (# % + = , - _ ^ / @ . ~) ... -
Page 60: Starting The Web Setting Screen
Operating Instructions Starting the Web Setting Screen If you connect the unit with a PC, you can operate the unit and configure the unit’s settings from the web setting screen. For details of the required personal computer environment p44. Starting the Web Setting Screen (Live Screen/Setup Screen) Connect the unit with a PC. - Page 61 The web setting screen (Live screen) starts up. A. Switch between the live screen and the Setup screen. B. Switch the unit from on to standby mode or vice versa. C. Operate the camera. D. The camera image is displayed. 1.
- Page 62 Click [Setup] on the live screen. The user identification screen is displayed. Correctly enter the user name and password that has already been registered,and click [OK]. The Setup screen is displayed. For details regarding the Setup screen, refer to the “Operating Instructions <Camera Menu Operation>”.
-
Page 63: Power On And Power Off The Camera Unit
Power on and Power Off the Camera Unit Power on the Camera Unit When performing the operations using the wireless remote control. 1. Set all the power switches of the units and devices connected in the system to ON. The unit does not have a power switch. When power is supplied to it, the status indicator LED will light up orange. -
Page 64: Power Off The Camera Unit
Power off the Camera Unit When performing the operations using the wireless remote control 1. Press one of the [CAM1] to [CAM4] buttons on the wireless remote control to select the unit. 2. Press the [ON/STANDBY] button on the wireless remote control for 2 seconds. The unit enters STANDBY mode. -
Page 65: Troubleshooting
Operating Instructions Troubleshooting Symptom Cause and solution No power Is the network cable for the PoE (IEEE802.3af) compatible power supply device and the unit connected properly? Power may not be supplied if the total power limit is exceeded on power supply devices that allow connections to multiple PoE terminals. - Page 66 Symptom Cause and solution Cannot access from a web Has a valid IP address been set in the unit? browser Has the wrong IP address been accessed? → Check the connections by following the steps below. For Windows: Using the Windows command prompt, execute >...
-
Page 67: Specifications
Operating Instructions Specifications The symbols on this product (including the Power requirements: accessories) represent the following: 5V (4.75V-5.25V) 37V to 57V (PoE power supply) Current consumption: 1.0A (USB terminal power supply) 0.2A (PoE power supply) Indicates safety information. GENERAL ... -
Page 68: Index
..........47 Live screen ..........60 USB terminal ..........51 Mount hole ..........52 When using the WV-Q105A ......18 Max Weight ..........67 Wireless remote control ....47,54,56 Web setting screen........60 Web Site: http://www.panasonic.com © Panasonic Corporation 2019...
