Windows Driver Manual
SPP-R200
Mobile Printer
Rev. 1.00
http://www.samsungminiprinters.com

Advertisement

Table of Contents
loading

Related Manuals for Samsung Bixolon SPP-R200

Summary of Contents for Samsung Bixolon SPP-R200

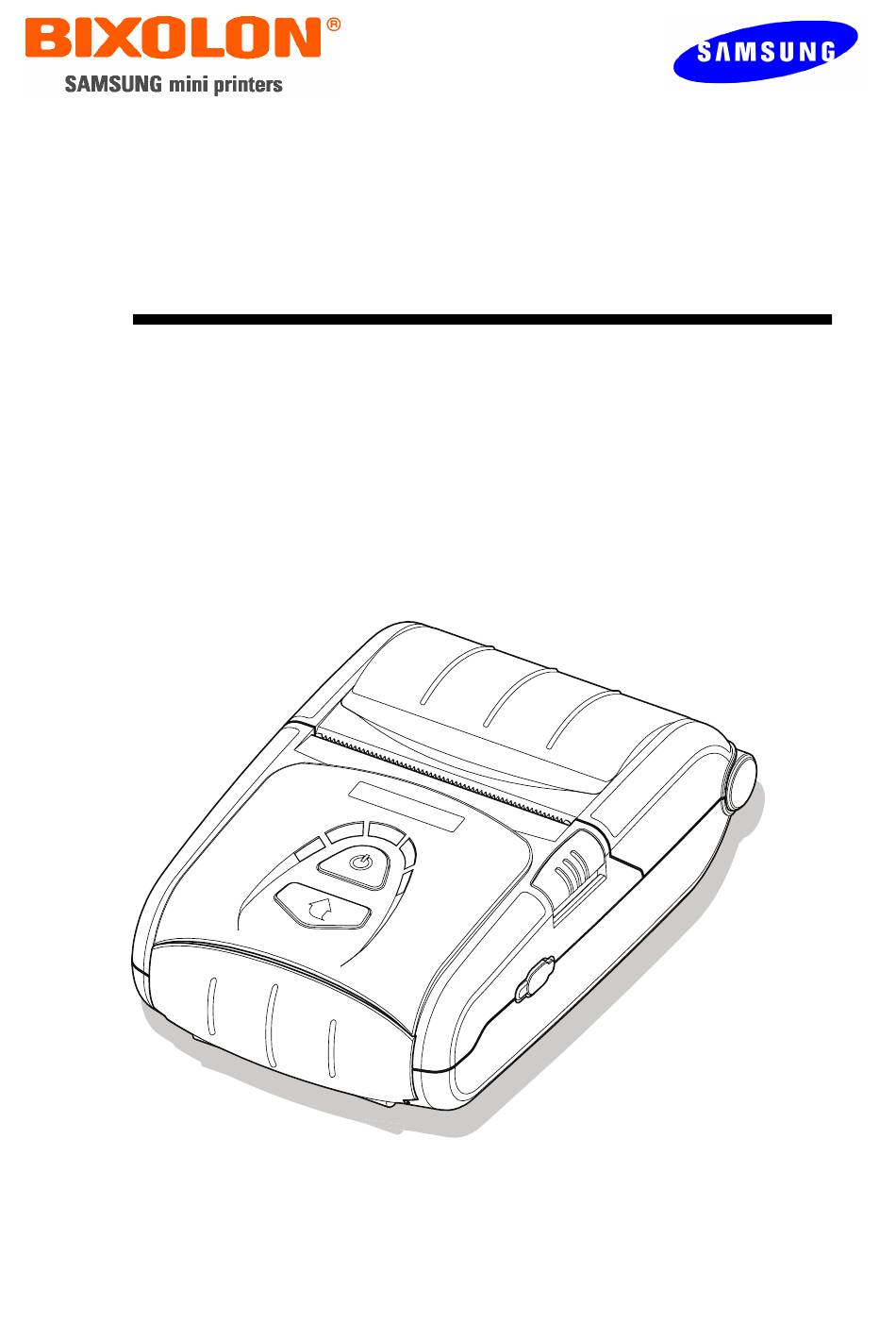

  • Page 1 Windows Driver Manual SPP-R200 Mobile Printer Rev. 1.00 http://www.samsungminiprinters.com...

  • Page 2: Table Of Contents

    SPP-R200 ■ Table of Contents 1. Manual Information......................3 2. Operating System (OS) Environment................3 3. Windows Driver Preparation ..................3 4. Windows Driver Installation ..................4 4-1 Installing on Windows 98/ME..................4 4-1-1 Via Serial Port.......................4 4-1-2 Via USB Port ......................7 4-2 Installing on Windows 2000 ..................13 4-2-1 Via Serial Port or Bluetooth ................13 4-2-2 Via USB Port ......................17 4-3 Installing on Windows XP/2003 Server..............21...

  • Page 3: Manual Information

    SPP-R200 1. Manual Information This Windows Driver Installation Manual provides information on installation, detailed specifications, and usage of the printer’s Windows Driver according to PC operating system (OS). 2. Operating System (OS) Environment The following operating systems are supported for usage. Microsoft Windows 98 Gold Microsoft Windows 98 Second Edition Microsoft Windows Millennium Edition...

  • Page 4: Windows Driver Installation

    SPP-R200 4. Windows Driver Installation 4-1 Installing on Windows 98/ME 4-1-1 Via Serial Port 1) Double-click the Windows Driver installation file (SPP-R200_Vx.x.xx.exe). 2) Click the “Next” button. 3) Click the “Install” button. - 4 - Rev. 1.00...
  • Page 5 SPP-R200 4) Select the COM port to be used and click the “Next” button. 5) Clicking the ”Yes” button will reboot the PC. 6) Open the printer properties window in the Windows OS. 7) Click the “Port Settings…” button in the ”Details” tab. - 5 - Rev.
  • Page 6 SPP-R200 8) Match the communication settings to those of the printer. (The communication settings of the printer can be performed by conducting a self-test.) 9) Click the “Print Test Page” button and check printing status. - 6 - Rev. 1.00...

  • Page 7: Via Usb Port

    SPP-R200 4-1-2 Via USB Port 1) Double-click the Windows Driver installation file (SPP-R200_Vx.x.xx.exe). 2) Click the “Next” button. 3) Click the “Install” button. - 7 - Rev. 1.00...
  • Page 8 SPP-R200 4) Select USB and click the ”Next” button. 5) Clicking the ”OK” button will reboot the PC. 6) Turn on the printer. 7) When the New Hardware Wizard appears for the installation of the “USB Printing Support” Driver, click the “Next” button. - 8 - Rev.
  • Page 9 SPP-R200 8) Continue to click the “Next” button. 9) Continue to click the “Next” button. - 9 - Rev. 1.00...
  • Page 10 SPP-R200 10) Continue to click the “Next” button. 11) When the “USB Printing Support” Driver installation is complete, the system automatically reboots. - 10 - Rev. 1.00...
  • Page 11 SPP-R200 12) After system rebooting, the Windows Driver is automatically installed. * If an error occurs during software installation, save the location. (Location: ”C:\WINDOW\R200\usb”) 13) Confirm the USB Port setting in the Windows Driver properties. - 11 - Rev. 1.00...
  • Page 12 SPP-R200 14) Click the “Print Test Page” button and check printing status. - 12 - Rev. 1.00...

  • Page 13: Installing On Windows 2000

    SPP-R200 4-2 Installing on Windows 2000 4-2-1 Via Serial Port or Bluetooth 1) Double-click the Windows Driver installation file (SPP-R200_Vx.x.xx.exe). 2) Click the “Next” button. 3) Click the “Install” button. - 13 - Rev. 1.00...
  • Page 14 SPP-R200 4) Select the COM port to be used and click the “Next” button. 5) If using Bluetooth, click the “Yes” button. - Click “No” if using a Serial port. - To use Bluetooth, first install the corresponding product software. (Refer to the user manual of the corresponding product.) * Select the Bluetooth Driver to be used.
  • Page 15 SPP-R200 6) When the following message box appears, click the “Yes” button. 7) Clicking the ”Yes” button will reboot the PC. 8) Open the printer properties window in the Windows OS. 9) Click the “Port Settings” button in the ”Ports” tab. - 15 - Rev.
  • Page 16 SPP-R200 10) Match the communication settings to those of the printer. (The communication settings of the printer can be performed by conducting a self-test.) 11) Click the “Print Test Page” button and check printing status. - 16 - Rev. 1.00...

  • Page 17: Via Usb Port

    SPP-R200 4-2-2 Via USB Port 1) Double-click the Windows Driver installation file (SPP-R200_Vx.x.xx.exe). 2) Click the “Next” button. 3) Click the “Install” button. - 17 - Rev. 1.00...
  • Page 18 SPP-R200 4) Select USB and click the ”Next” button. 5) When the following message box appears, click the “Yes” button. - 18 - Rev. 1.00...
  • Page 19 SPP-R200 6) Click the ”OK” button. 7) Turn on the printer. 8) The Windows Driver is automatically installed. 9) The USB Port setting can be confirmed in the Windows Driver properties. - 19 - Rev. 1.00...
  • Page 20 SPP-R200 10) Click the “Print Test Page” button and check printing status. - 20 - Rev. 1.00...

  • Page 21: Installing On Windows Xp/2003 Server

    SPP-R200 4-3 Installing on Windows XP/2003 Server 4-3-1 Via Serial Port or Bluetooth 1) Double-click the Windows Driver installation file (SPP-R200_Vx.x.xx.exe). 2) Click the “Next” button. 3) Click the “Install” button. - 21 - Rev. 1.00...
  • Page 22 SPP-R200 4) Select the COM port to be used and click the “Next” button. 5) If using Bluetooth, click the “Yes” button. - Click “No” if using a Serial port. - To use Bluetooth, first install the corresponding product software. (Refer to the user manual of the corresponding product.) * Select the Bluetooth Driver to be used.
  • Page 23 SPP-R200 6) When the following message box appears, click the “Continue Anyway” button. 7) Clicking the ”Yes” button will reboot the PC. 8) Open the printer properties window in the Windows OS. 9) Click the “Port Settings” button in the ”Ports” tab. - 23 - Rev.
  • Page 24 SPP-R200 10) Match the communication settings to those of the printer. (The communication settings of the printer can be performed by conducting a self-test.) 11) Click the “Print Test Page” button and check printing status. - 24 - Rev. 1.00...

  • Page 25: Via Usb Port

    SPP-R200 4-3-2 Via USB Port 1) Double-click the Windows Driver installation file (SPP-R200_Vx.x.xx.exe). 2) Click the “Next” button. 3) Click the “Install” button. - 25 - Rev. 1.00...
  • Page 26 SPP-R200 4) Select USB and click the ”Next” button. 5) Click the ”OK” button. 6) Turn on the printer. - 26 - Rev. 1.00...
  • Page 27 SPP-R200 7) When the New Hardware Wizard appears for the installation of the Windows Driver, select the option as shown below and click the “Next” button. 8) Click the “Next” button. - 27 - Rev. 1.00...
  • Page 28 SPP-R200 9) Click the “Next” button. 10) Click the “Next” button. - 28 - Rev. 1.00...
  • Page 29 SPP-R200 11) Click the “Continue Anyway” button. - 29 - Rev. 1.00...
  • Page 30 SPP-R200 12) Click the “Finish” button. 13) The USB Port setting can be confirmed in the Windows Driver properties. - 30 - Rev. 1.00...
  • Page 31 SPP-R200 14) Click the “Print Test Page” button and check printing status. - 31 - Rev. 1.00...

  • Page 32: Detailed Windows Driver Settings

    SPP-R200 5. Detailed Windows Driver Settings The following functions can be set in detail after the Windows Driver installation is complete. 5-1 Paper Supply Method The printer structure is such that the print head, which carries out printing, and the cutter, which cuts the printing paper, are separated.
  • Page 33 SPP-R200 2) Click the “Printing Preferences” button in the ”General” tab. The button name varies by Windows OS. Refer to the following. - Windows 95/98/ME: “Properties” - Windows NT4.0: “Document Defaults” - Windows 2000/XP/2003 Server: “Printing Preferences” - Windows WEPOS/VISTA: “Printing Preferences” 3) Select the desired setting in the ”Paper/Quality”...

  • Page 34: Paper Size

    SPP-R200 5-2 Paper Size The paper sizes available in the Windows Driver are as follows. - 58 × 297 mm [R200] - 58 × 3276 mm [R200] - Custom Size (Windows 9x supported) Detailed setting can be done as follows. 1) Open the printer properties window in the Windows OS.

  • Page 35: Additional Commands

    SPP-R200 5-3 Additional Commands The Windows Driver serves to receive the content for print from an application and send it to the printer. The Additional Commands function allows for the addition of desired commands at the beginning or end of the print content sent to the printer. The command functions available are as follows.
  • Page 36 SPP-R200 3) If the user wishes to open Cash Drawer 1 prior to printing, enter “\x1B\x70\x00\x19\xff” in the ”BeginDoc” space and click the “OK” button. 4) If the user wishes to open Cash Drawer 1 at the end of printing, enter “\x1B\x70\x00\x19\xff”...

  • Page 37: Windows Driver Specifications

    SPP-R200 6. Windows Driver Specifications 6-1 Fonts The Windows Driver of the printer supports the fonts listed below. Printing is done at faster speed when using the fonts below as opposed to the Windows fonts of the OS. Printer Fonts Character Size (dot) Sizes (point) FontA1x1...

  • Page 38: Special Functions

    SPP-R200 6-2 Special Functions The Windows Driver supports the special functions indicated below. These special functions are available when using the characters after the “FontControl” font is selected. This function is not an ordinary character printing function. Take special care. Character Special Function Prints HT (0 x 0A)

  • Page 39: Barcodes

    SPP-R200 6-3 Barcodes The Windows Driver supports the barcodes indicated below. This function is available when entering barcode data after selecting “Printer Font Name”. In addition, the “FontControl” font can be used to add HRI characters. Printer Font Name Size Supported Characters Numberic: 0~9 Codabar...

  • Page 40: Use Of Windows Driver

    (SPP-R200). Sample programs are saved together if the Windows Driver is installed. Take note. 7-1-1 Windows Driver Selection The following code is an example of the selection of the “BIXOLON SAMSUNG SPP- R200” Windows Driver. For Each prnPrinter In Printers If prnPrinter.DeviceName = “BIXOLON SAMSUNG SPP-R200”...

  • Page 41: Test Printing

    SPP-R200 7-1-2 Test Printing The following code is an example of the printing of Arial Test via the Windows font, and FontA1x1Test via the printer font. ‘Print in Windows font Printer.FontSize = 9 Printer.FontName = “Arial” Printer.Print “Arial Test” ‘Print in printer font Printer.FontSize = 8.5 Printer.FontName = “FontA1x1”...

  • Page 42: Use Of Wordpad

    7-2-1 Wordpad Environment Settings After running Wordpad and setting the following conditions, conduct a test. - Select Printer After selecting “Print” from the “File” tab, select the printer (BIXOLON SAMSUNG SPP- R200). - Select Paper Size, Orientation, and Margins After selecting “Page Settings” from the “파일” tab, select the paper size, orientation, and margins.

  • Page 43: Barcode Printing

    SPP-R200 7-2-3 Barcode Printing Use the Windows Driver of the printer to print the barcode. 1) Select the desired barcode from the Font menu (Code128). 2) Select the desired font size (18). 3) Enter “{A123435” in Wordpad. 4) Click the Print button in the toolbar to print. - 43 - Rev.

  • Page 44: Two-Dimensional Barcode Printing

    SPP-R200 7-2-4 Two-Dimensional Barcode Printing Use the Windows Driver of the printer to print the two-dimensional barcode. 1) Select the desired two-dimensional barcode from the Font menu (PDF417). 2) Select the desired font size (8.5). 3) Enter “Two-dimensional Codes Test: PDF417” in Wordpad. 4) Click the Print button in the toolbar to print.
