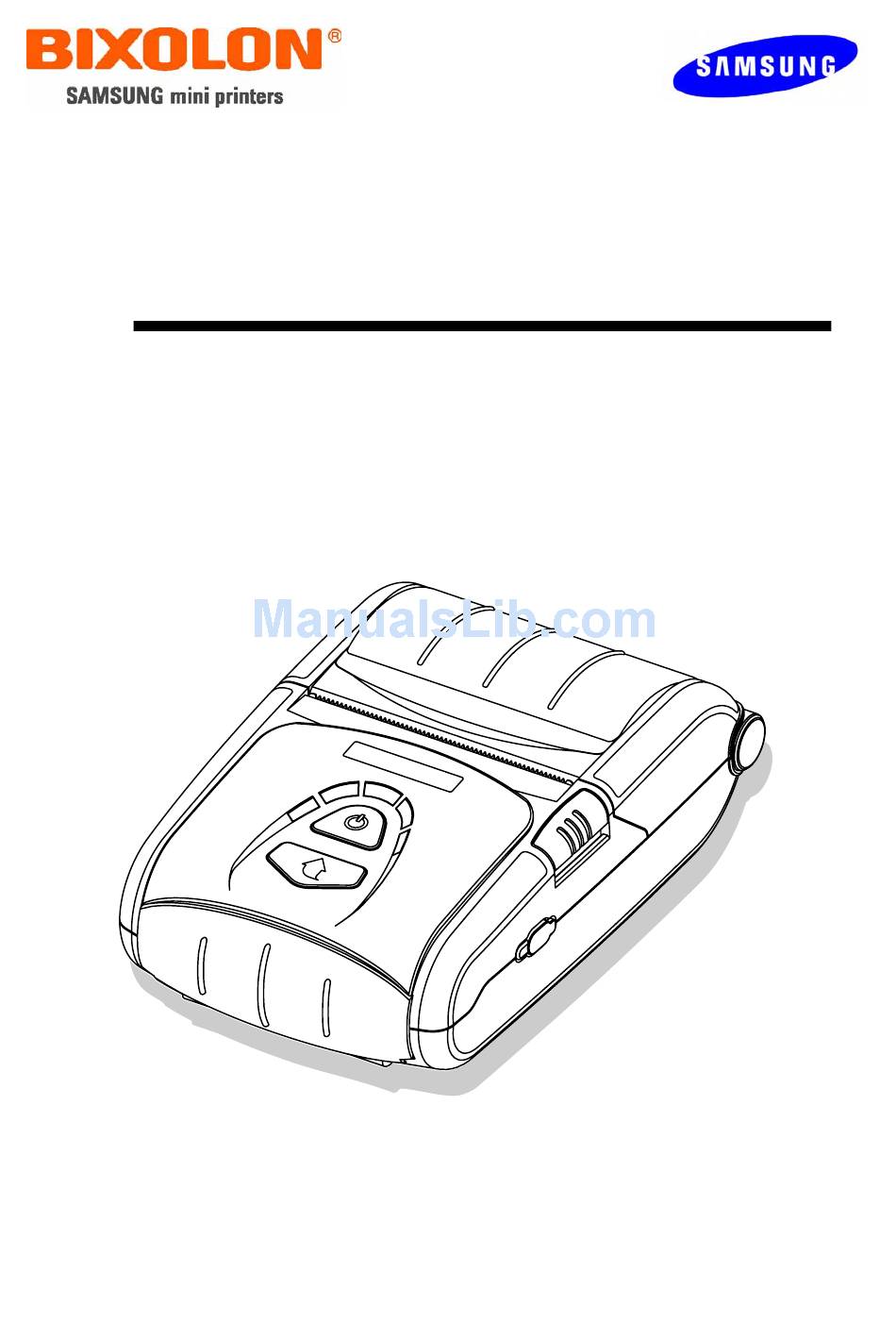

Bluetooth Connection Manual
SPP-R200
Mobile Printer
Rev. 1.00
http://www.samsungminiprinters.com

Advertisement

Table of Contents
loading

Related Manuals for Samsung SPP-R200

Summary of Contents for Samsung SPP-R200

  • Page 1 Bluetooth Connection Manual SPP-R200 Mobile Printer Rev. 1.00 http://www.samsungminiprinters.com...

  • Page 2: Table Of Contents

    SPP-R200 Table of Contents 1. Manual Information...................... 3 2. Precautions ........................3 3. General Sequence for Bluetooth Connections ............3 4. Bluetooth Connection Instructions ................4 4-1 Connecting with an Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0) ..... 5 4-2 Connecting with a SYMBOL PDA (Device: SYMBOL MC70, OS: Windows Mobile 5.0)...

  • Page 3: Manual Information

    1. Manual Information This Bluetooth Connection Manual provides information on the connection of Bluetooth- enabled devices (PDAs, PCs, etc.) with the printer (SPP-R200). 2. Precautions 2-1 To connect the printer with another device via Bluetooth, the devices must be within 10m of one another.

  • Page 4: Bluetooth Connection Instructions

    - InnoTeletek PDA (Device: MC3000, OS: WinCE 4.2) - Bluetooth Dongle (BlueSoleil IVT Stack) After turning on the power of all Bluetooth devices, perform the connection process. - PDAs, PCs (Bluetooth Dongle), printers (SPP-R200), etc. - 4 - Rev. 1.00...

  • Page 5: Connecting With An Intermec Pda (Device: Cn2B, Os: Pocket Pc 4.20.0)

    SPP-R200 4-1 Connecting with an Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0) 1) Click the icon. 2) Click “Settings”. 3) Click “Connections”. 4) Click the “Bluetooth” icon. - 5 - Rev. 1.00...
  • Page 6 SPP-R200 5) Click to check the “On” option. 6) Click the “Wireless Printing” menu bar 7) Click the ”Device Discovery” button. 8) Select Devices of the SPP-R200, and click the “Connect” button. - 6 - Rev. 1.00...
  • Page 7 10) Check the “Enable Wireless Printing” and ”Default” checkboxes, and click the “Printer Test Page” button. 11) Click the “OK” button. 12) The PIN Code(Device PIN) window appears (if the SPP-R200 security function is enabled). - 7 - Rev. 1.00...
  • Page 8 13) Input the PIN Code(Device PIN) 14) If after pressing the “Print Test Page” button, and click “Enter”. (Default code: 0000) the BT LED of the SPP-R200 turns on and test printing is performed, the connection is complete. - 8 -...

  • Page 9: Connecting With A Symbol Pda (Device: Symbol Mc70, Os: Windows Mobile 5.0)

    SPP-R200 4-2 Connecting with a SYMBOL PDA (Device: SYMBOL MC70, OS: Windows Mobile 5.0) 1) Click the icon. 2) Click ”Enable Bluetooth”. 3) Click the icon. 4) Click “Show BTExplorer”’. - 9 - Rev. 1.00...
  • Page 10 SPP-R200 5) Click ”File”. 6) Click “New Connection”. 7) Click ”Associate Serial Port”. 8) Click the “Next” button. - 10 - Rev. 1.00...
  • Page 11 9) Click the List window for 2 seconds and 10) Click “Refresh”. the function folder appears. 11) Bluetooth devices in the proximity are 12) Select the Device Address of the discovered. SPP-R200, and click the “Next” button. - 11 - Rev. 1.00...
  • Page 12 13) The PIN Code window appears (if the 14) Input the PIN Code and click “Enter”. SPP-R200 security function is enabled). (Default PIN Code: 0000) 15) The Serial port is registered as COM9. 16) Click the SPP-R200 name for 2 seconds. - 12 - Rev. 1.00...
  • Page 13 SPP-R200 17) Click ”Connect”. 18) The “Connection Successful” message appears, and the connection is complete when the BT LED of the SPP-R200 turns - 13 - Rev. 1.00...

  • Page 14: Connecting With An Hp Pda (Device: Ipaq Hx2700, Os: Windows Mobile 5.1.1702)

    Bluetooth function. Not active 3) When activated, the Bluetooth button turns 4)Click ”New Connection“. green. Click the “Manager” button to connect to the SPP-R200. - 14 - Rev. 1.00...
  • Page 15 SPP-R200 5) Click ”Select Bluetooth Device”. 6) Click the SPP-R200 icon from the Bluetooth devices displayed in the search results. 7) The Pass Key window appears (if the 8) Input the Pass Key and click “Enter” SPP-R200 security function is enabled).
  • Page 16 SPP-R200 9) Select BIXOLON-SPP and click “Next”. 10) Click “Done”. 11) The SPP-R200 shortcut is produced. 12) Clicking the shortcut for 2 seconds brings up the function folder. Click “Connect”. - 16 - Rev. 1.00...
  • Page 17 SPP-R200 13) The shortcut changes to show a green indicator as shown below. The connection is complete when the BT LED of the SPP-R200 turns on. - 17 - Rev. 1.00...

  • Page 18: Connecting With A Mobile Compia Pda (Device: M3, Os: Wince 5.0)

    SPP-R200 4-4 Connecting with a Mobile Compia PDA (Device: M3, OS: WinCE 5.0) 1) Click the icon. 2) Click ”BT On”. 3) Click the icon. 4) Click ”BT Manager”. - 18 - Rev. 1.00...
  • Page 19 SPP-R200 5) Click ”Find All Devices”. 6) Click the ”Next” button. 7) Click “Refresh”. 8) Click the SPP-R200 from the Bluetooth devices in the search list, and click “Next”. - 19 - Rev. 1.00...
  • Page 20 SPP-R200 9) The Pass Key window appears (if the 10) Input the Pass Key and click “Enter”. SPP-R200 security function is enabled). (Default Pass Key: 0000) 11) Select BIXOLON-SPP and click “Next”. 12) Click “Connect” - 20 - Rev. 1.00...
  • Page 21 SPP-R200 13) The “Connection Established” message appears, and the connection is complete when the BT LED of the SPP-R200 turns on. - 21 - Rev. 1.00...

  • Page 22: Connecting With An Innoteletek Pda (Device: Mc3000, Os: Wince 4.2)

    SPP-R200 4-5 Connecting with an InnoTeletek PDA (Device: MC3000, OS: WinCE 4.2) 1) Click the ”sppui” icon. 2) Click the icon. 3) Click the “Inquiry” button. 4) Select SPP-R200 and click “OK” button. - 22 - Rev. 1.00...
  • Page 23 SPP-R200 5) The PIN Code window(Select channel) 6) Input the PIN Code and click “Enter”. appears (if the SPP-R200 security function (Default: 0000) is enabled). 7) The Serial port is registered as COM7. 8) Click the ”My Computer” icon. - 23 -...
  • Page 24 SPP-R200 9) Click “Storage”. 10) Click ”BTPrinter”. 11) Click “InnoPrinter”. 12) The “Port Opened” Status message appears, and the connection is complete when the BT LED of the SPP-R200 turns on. Click the “TEXT” button. - 24 - Rev. 1.00...
  • Page 25 SPP-R200 13) Enter text to be printed in the Text window and click the “Print” button. The text is printed by the Printer(SPP-R200). - 25 - Rev. 1.00...

  • Page 26: Connecting With Bluetooth Dongle (Bluesoleil Ivt Stack)

    SPP-R200 4-6 Connecting with Bluetooth Dongle (BlueSoleil IVT Stack) 1) After purchasing Bluetooth Dongle, insert the CD in the PC and install Bluesoleil. 2) Connect Bluetooth Dongle to the USB port of the PC. 3) Click the Bluesoleil icon on the PC screen top.
  • Page 27 SPP-R200 6) Click right button of the mouse above the "SPP-R200 Icon" and select the "Refresh Services". 7) Enter the PIN Code in the Bluetooth Passkey window. (Default Passkey: 0000) - 27 - Rev. 1.00...
  • Page 28 8) If the Passkey(PIN Code) is correct and pairing is completed, a red check symbol appears next to the SPP-R200 icon. 9) Click right button of the mouse above the "SPP-R200 Icon" and select the "Connect > Bluetooth Serial Port Service".
  • Page 29 12) When the connection is complete, the message pictured below appears at the bottom right of the PC screen. The COM port number shown in the message indicates the COM port via which the SPP-R200 and the PC are connected.
