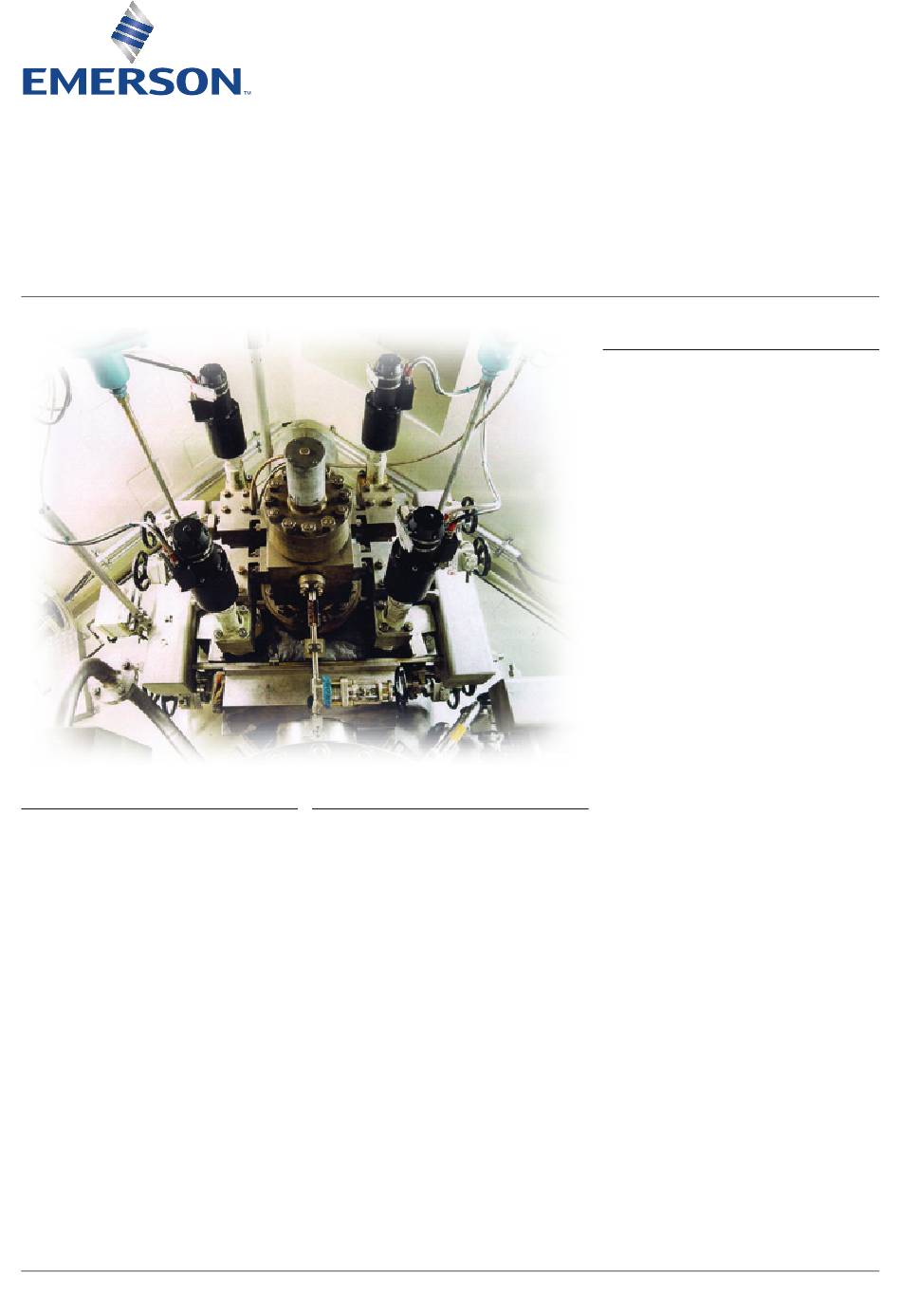

SEMPELL MODEL PSRV - PRESSURIZER SAFETY RELIEF VALVES
TYPE VS99 PILOT OPERATED
The design, construction and activation of the safety valves depends on the
design of the respective reactor and the corresponding specifications
GENERAL APPLICATION
Pressurizer safety relief valves protect the
pressurizer from overpressure and must
ensure the following functions:
• Pressurizer relief for normal operating
transients
• Hot and cold overpressure protection on
liquid, steam, gas and steamwater-mixture
• Depressurization of reactor coolant system
following an accident
Emerson.com/FinalControl
TECHNICAL DATA
Size:
Up to DN 200
Temperature:
Up to 371°C
Pressure:
Up to 200 bar
According to customer requirements and
specifications.
© 2017 Emerson. All rights reserved.
FEATURES
• Extremely high sealing force, ensuring leak
tightness up to the set pressure.
• Very precise reproducibility of set pressure
and small operating pressure differences,
accuracy of pilot set pressure opening value
with repeats better 1%.
• All parts essential for function are kept at
operating temperature, thus no thermal shock.
• The disc piston is the only moving part in the
main valve, providing reduced maintenance.
• Low or high pressure in-situ test during
operation to preventive maintenance.
• Compact design from forged stainless steel.
• Redundancy of pilot valves and diversity of
function principle of pilot valves according to
specification.
• Suitable for all types of nuclear reactors.
VCTDS-03163-EN 17/05
