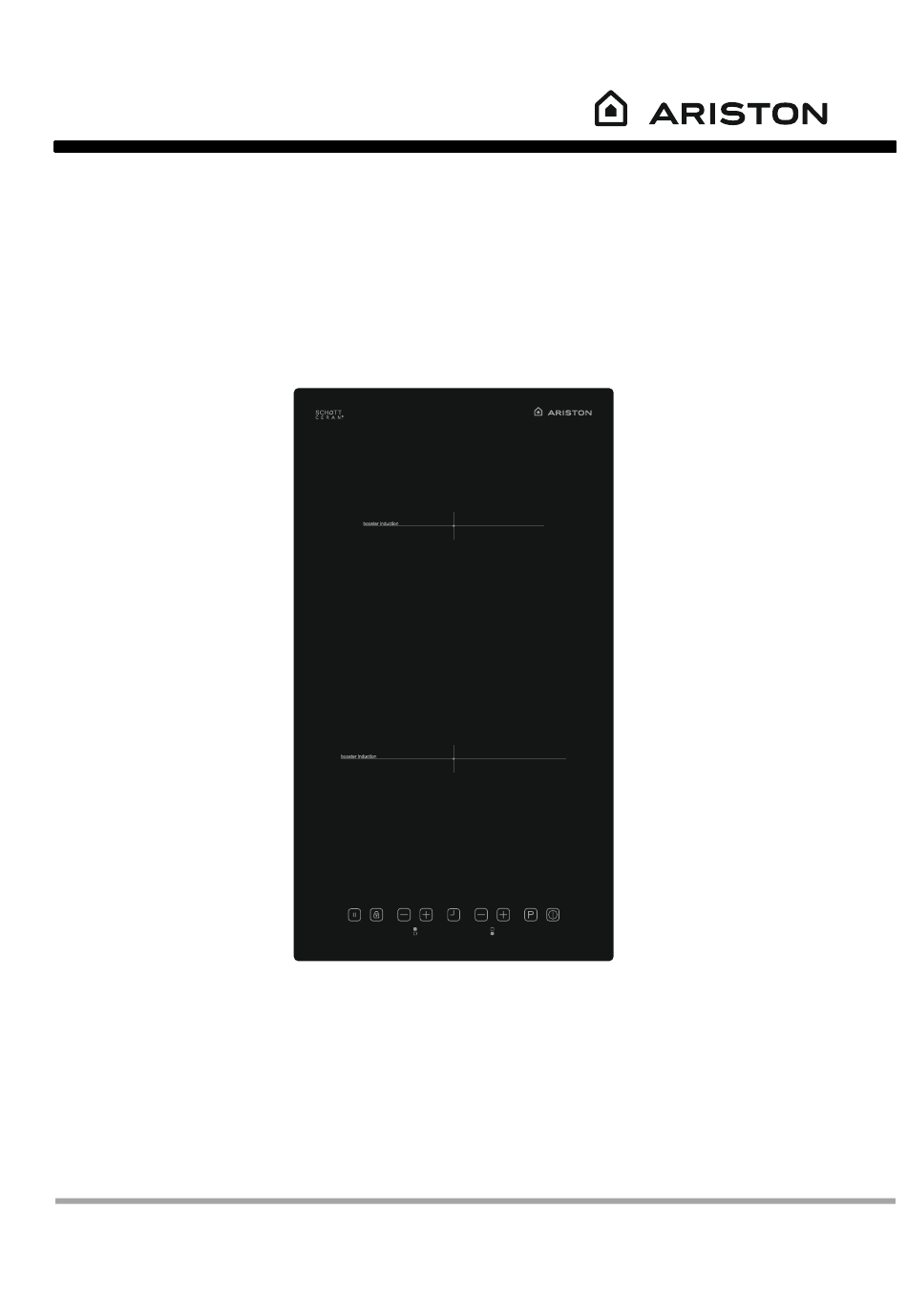

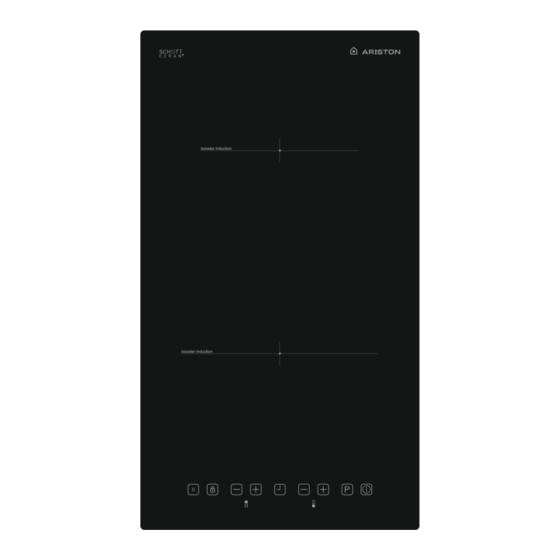

- Page 1 NIV 320B lnduction Hob Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTUCTIONS p.3-8 SAFEGUARDING THE ENVIRONMENT BEFORE USE COOKWAVE DESCRIPTIONS OF PRODUCT DESCRIPTIONS OF CONTROL PANEL p.10 INSTALLATION p.10 ELECTRICAL CONNECTION p.12-13 INSTRUCTIONS FOR USE p.13-16 CLEANING p.17 TROUBLESHOOTING GUIDE p.17 POWER LEVEL TABLE p.18... -
Page 3: Important Safety Instuctions
IMPORTANT SAFETY INSTUCTIONS READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY. THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. - Page 4 unless continuously supervised. - WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
- Page 5 - Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering of the glass or damage to the surface. - Do not use steam cleaners for cleaning the appliance. Your appliance is produced in accordance with all applicable local and international standards and regulations.
- Page 6 may break, you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with accessories. - Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
- Page 7 - The temperature of the bottom surface of the hob might rises during the operation. Therefore, a board must be installed underneath the product. During usage - Do not put flammable or combustible materials, in or near the appliance when it is operating.
-
Page 8: Safeguarding The Environment
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED SERVICE AGENTS IN CASE OF NEED. SAFEGUARDING THE ENVIRONMENT Scrapping the product By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. -
Page 9: Descriptions Of Product
The minimum cookware diameter that elements can detect are Q110mm for 160mm - 210mm hobs and Q160mm for 290mm hob. Cooking performance improves with the increase of the diameter. DESCRIPTIONS OF PRODUCT Induction heating element Control panel... -
Page 10: Descriptions Of Control Panel
DESCRIPTIONS OF CONTROL PANEL INSTALLATION After unpacking the product, check for any damage during transport. In the event of problems, contact the dealer or the Whirlpool After-Sales Service. - The electrical connection of this hob must be carried out by qualified technician, according to the instructions in this user manual and in compliance with the local regulations. - Page 11 Installation Apply the one-sided self-adhesive sealing tape supplied all the way round the lower glass edge of the cooking surface along the outer edge of the ceramic glass panel. Do not stretch Screw the 4 worktop mounting brackets on the side walls of product as picture shown below.
-
Page 12: Electrical Connection
ELECTRICAL CONNECTION - Disconnect the appliance from the power supply. - Installation must be carried out by qualified personnel who know the current safety and installation regulations. - The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the regulations provided in this chapter. -
Page 13: Instructions For Use
connection diagram below. Electrical connection diagram is located on the bottom of the appliance. Electrical Connection Diagram INSTRUCTIONS FOR USE Use the induction cooking zones with suitable cookware. After mains voltage is applied, all displays are on for a moment. When this time is over, the hob is in the standby mode and it is ready for operation. - Page 14 cooking zone has various power levels, adjustable with buttons, going from “1”: minimum power, to “9”: maximum power. Switching the cooking-zones OFF Select the cooking zone to be switched off by pressing the button. Press the button to set the level to “0”.
- Page 15 press the buttons simultaneously and then press the buttons, “L”meaning LOCKED will appear in all displays and the control panel is locked. (If a cooking zone is in hot condition,“L”and “H”will be displayed in alternation.) The hob will remain in a locked condition, even if the control panel has been switched off and on. To deactivate the child lock, first switch on the hob, press the buttons simultaneously and then press the...
- Page 16 between 0 to 99mintues. If there is no operation in 10 seconds, the minute minder will be sent and the blinking dot will disappear. Once the set time has elapsed, an acoustic signal sounds and the display blinks and timer begins the countdown.
-
Page 17: Cleaning
CLEANING - Do not use steam cleaners. - Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator“H”is not displayed. IMPORTANT: Do not use abrasive sponges or scouring pads. Their use could eventually ruin the glass. - Page 18 If there is an error, error code will be showed at the heater displays. ERROR CODE POSSIBLE CAUSES ERROR ELIMINATION Cooling Fan is disabled Contact Whirlpool After Sale Service Supply voltage is over than rated Turn the hob off, wait until“H”disappears for all values zones and then turn the hob on.
-
