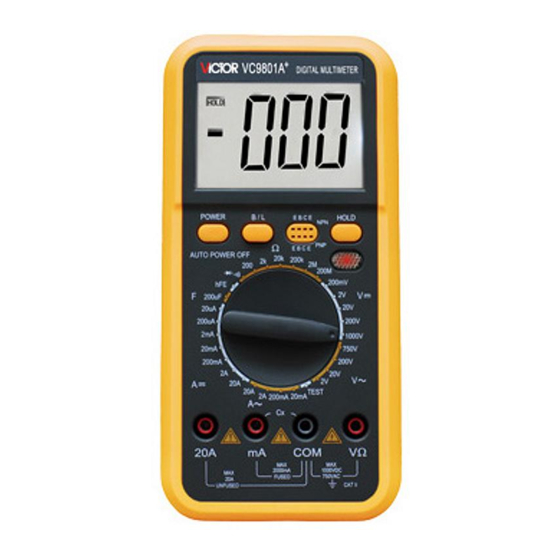

Victor VC9801A Operation Manual

DIGITAL MULTIMETER

OPERATION MANUAL
1. GENERAL
The instrument is a stable and high performance digital multimeter driven by
battery. It uses the LCD with 42mm high make the reading is clearly. And the
function of 20sec. back light and overload protection make operation is
convenient.
The instrument has the function of measuring DCV, ACV, DCA, ACA,
resistance, capacitance, and diode, triode and continuity test. The instrument
takes dual-integral A/D converter as key point, is an excellent tools.
2. SAFETY NOTES
This series meter meets the standard of IEC1010. Read it before operation.
1 ． Do not input the limited voltage of 1000V DC or 750V AC RMS when
measuring voltage.
2．Voltage less than 36V is safety voltage. When measuring voltage higher than
36V DC, 25V AC, check the connection, insulation of test leads to avoid
electric shock.
3 ． When changing function and range, test leads should be removed from
testing point.
4．Select correct function and range.
5．When measuring current, do not input current over 20A.
6．Safety symbols
" " exists high voltage，"
" must refer to manual，"
3. SPECIFICATION
1．GENERAL
1-1．Displaying : LCD displaying
1-2．Max. indication: 1999（3 1/2）, auto polarity indication
1-3．Measuring method: dual slope A/D transfer
1-4．Sampling rate: approx. 3 times/sec
1-5．Over range indication: MSD displays "1" or"-1"
1-6．Low battery indication: "
1-7．Operation: 0～40℃，relative humidity <80%
1-8．Power：one 9V battery (NEDA1604/6F22 or equivalent)
1-9．Meas.:190×93.5×37 mm
1-10．Weight: approx. 426g（including battery）
1-11. Accessories: test leads, instruction manual, holster, gift box and battery
1-12. Test accessories: alligator, triode test accessory
2．TECHNICAL DATA
2-1．Accuracy: ±（RDG% + the lowest digit） at (23±5) ,<75%RH one year
guarantee from production date
2-2．TECHNICAL DATA
2-2-1.DCV
RANGE ACCURACY
" dual insulation，"
"GND，"
"low battery
" symbol displays
℃
RESOLUTION
200mV ±(0.5%+3)
2V
20V
200V
1000V ±(0.8%+10)
Input resistance：all ranges: 10MΩ
Overload protection: 200mV range: 250V DC or AC peak value, other range:
1000V DC or AC peak value
2-2-2.ACV
RANGE
ACCURACY
2V ±(0.8%+5)
20V
200V
750V ±(1.2%+10)
Input resistance: 10MΩ Max
Overload protection: 1000V DC or AC peak value
Frequency response: lower than 200V range: 40~400Hz ， 750V range:
40~200Hz
Displaying: RMS of sine wave( mean value response)
2-2-3. DCA
RANGE ACCURACY
20uA ±(0.8%+10)
200uA
2mA
20mA
200mA ±(1.2%+8)
2A ±(1.5%+5)
20A ±(2.0%+5)
Max. measuring voltage drop: 200mV；
Max. input current: 20A（within 10 sec.）
Overload protection: 2A / 250V fast melt fuse, 20A infused
2-2-4. ACA
RANGE ACCURACY
20mA ±(1.0%+5)
200mA ±(2.0%+5)
2A ±(3.0%+5)
20A ±(3.0%+10)
Max. measuring voltage drop:200mV
Max. input current: 20A （less than 10sec.）
Overload protection: 2A / 250V fast melt fused, 20A range infused
Frequency response: 40~200Hz；
Displaying: rms of sine wave(mean value response）
2-2-5. RESISTANCE（Ω）
RANGE ACCURACY
200Ω ±(0.8%+5)
2kΩ ±(0.8%+3)
100uV
1mV
10mV
100mV
1V
RESOLU7TION
1mV
10mV
100mV
1V
RESOL.UTION
0.01uA
0.1uA
1uA
10uA
100uA
1mA
10mA
RESOLUTION
10uA
100uA
1mA
10mA
RESOLUTION
0.1Ω
1Ω
