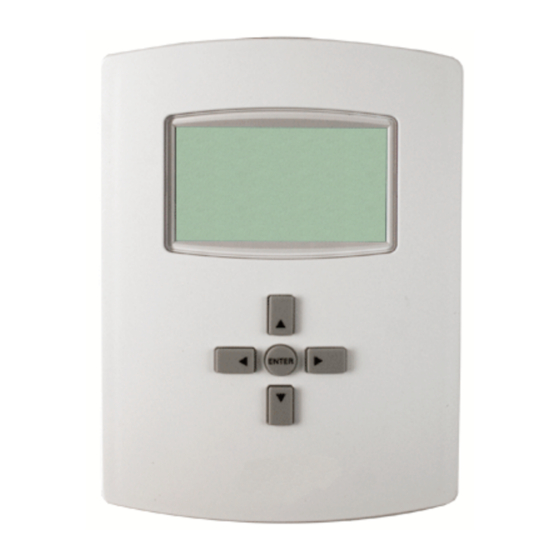

- Page 1 ADVANCED PROGRAMMING & FEATURES Controller: 8403-066 ECU Series Controller Manual: 2100-560 Supersedes: NEW File: Tab 19 Date: 05-02-11 Manual 2100-560 Page 1 of 8...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Programming & Features Controller Programming & Features ......Page 3 Home Screen Features ..........Page 3 Temporary Temperature Override ...... Pages 3 & 4 Indoor Blower Settings ..........Page 4 Setting Date/Time ............Page 4 Scheduling ............Pages 4 & 5 Alarm Feature ............ -
Page 3: Home Screen Features
*NOTE: Implement Controller Install/Operation/Quick Start Guide first. Home Screen Features: Date and Time Line: Reference or Scheduling purposes Current Operation Status: Cooling, Heating or Off status, Indicated by “snowflake” icon, “heat waves” icon or “OFF” Occupancy Status: Occupied, Unoccupied, and Temporary Override option, indicated by “sun”... -
Page 4: Indoor Blower Settings
Adjusting Temporary Override time length (continued) 4. Down button through entries to highlight Occ Override (Hrs) 5. Enter button to select Occ Override (Hrs) 6. Up/Down button(s) to adjust time (1/2 hour increments, Max. 12 hours) 7. Enter button to select new override time limit 8. -
Page 5: Scheduling
3. Enter button to select Advanced and enter Advanced Screen 4. Down button through entries to highlight Security 5. Enter button to select Security and enter Security Screen 6. Controller will ask for Admin Level Password Manual 2100-560 Factory Default Admin Level Password: BARD Page 5 of 8... - Page 6 5. Enter button to select Security and enter Security Screen 6. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD 7. Down button through entries to highlight Passwords 8. Enter button to select Passwords and enter Passwords Screen 9.
- Page 7 3. Enter button to select/enter Advanced Screen 4. Down button through entries to highlight Restart/Restore 5. Select button to select/enter Restart/Restore Screen 6. Controller will ask for Admin Level Password Factory Default Admin Level Password: BARD Manual 2100-560 Page 7 of 8...
- Page 8 Before making any changes to specific programming details not present in this manual, please consult with the Technical Service Department of Bard Manufacturing Company, Inc. Manual 2100-560...
