Option 2—False Front (cabinet face only)
Standard Integrated Grille
Installation Requirements
IMPORTANT:
A Standard Integrated Grille installation can be achieved with
■
either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.
A standard grille is used to achieve a Standard Integrated
■
Grille installation. Use the standard grille bracket (provided
with refrigerator) to attach the standard grille.
The grille panel height, shown in the "Standard Integrated
■
Grille Installation—Side View" graphic, allows for an air gap
critical to refrigerator performance.
Standard Grille Bracket
14
6" (15.24 cm)
min.
84"
(213.4 cm)

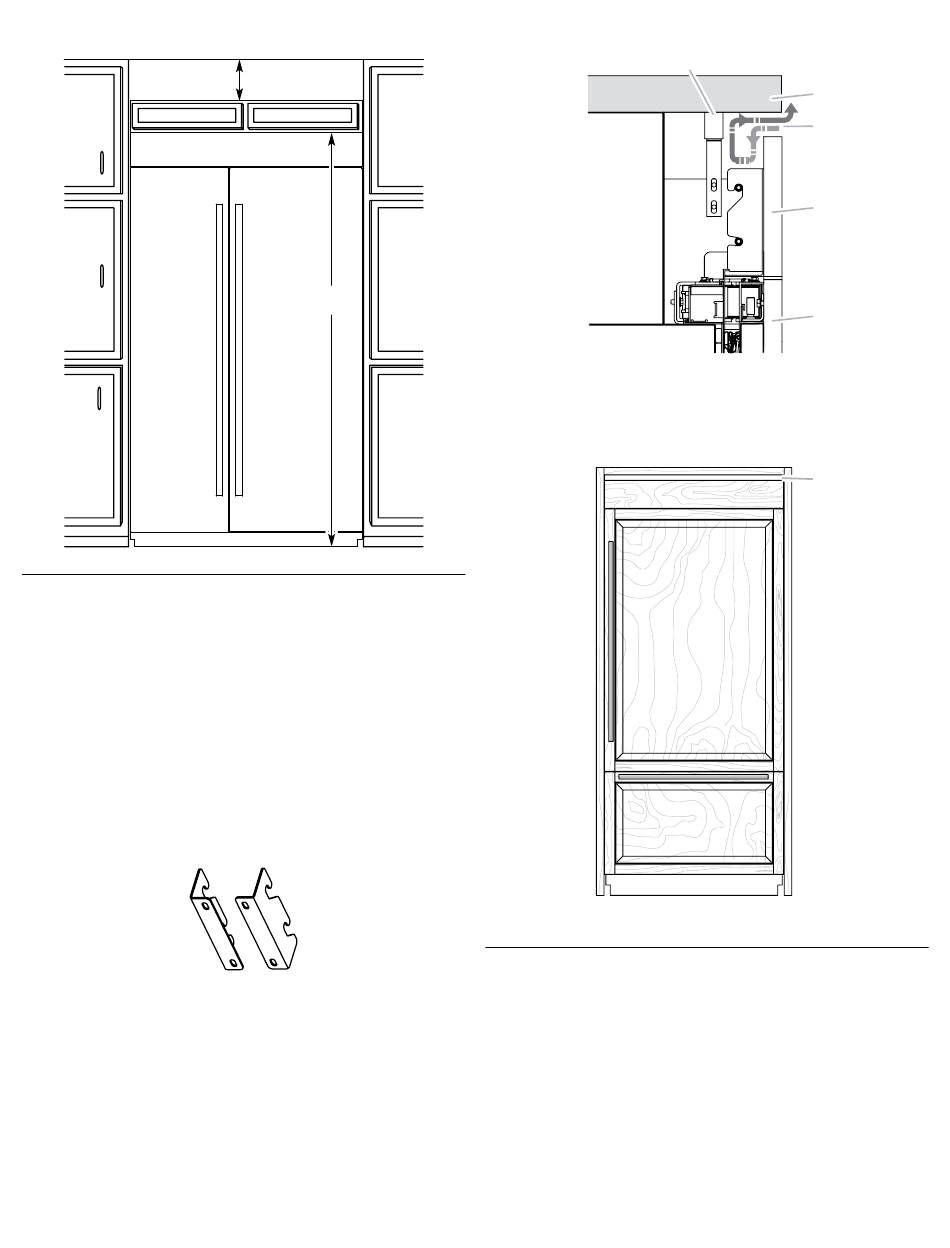

Standard Integrated Grille Installation—Side View
A. Top grille filler
B. Soffit
C. Airflow
Standard Integrated Grille Installation—Full Product View
C. Airflow
Stainless Steel Panel Kit
Installation Requirements
See the "36" Single Door Models" or the "36" or 42" French Door
Models" section to see the panel kit options available for your
model.
IMPORTANT:
A panel kit installation can be achieved with either a
■
24" (60.9 cm) or 25" (63.5 cm) deep opening.
Refer to the instructions provided with the Stainless Steel Door
■
Panel Kit to install the door panels and standard grille.
The grille panel height, shown in the "Panel Kit Installation—
■
Side View" graphic, allows for an air gap critical to refrigerator
performance.
A
B
C
D
E
D. Grille panel
E. Door panel
C
