V I I I . D I S A S S E M B L Y A N D A S S E M B L Y
DISASSEMBLY
No tools are required to disassemble or assemble your scooter. Always disassemble or assemble your scooter on
a level, dry surface with sufficient room for you to work. Keep in mind that the disassembled sections of a scooter
take up more floor space than the assembled scooter.
You can disassemble the Go-Go into four pieces: the seat, the front section, the rear section, and the battery pack.
See figure 11.
REAR SECTION
BATTERY PACK
WARNING! Lifting weight beyond your physical capability may result in personal injury. Ask for
assistance when necessary before disassembling your scooter.
Before disassembling the scooter, remove the key and place the manual freewheel lever in the rearward (drive) position.
1. From the unlocked position (see figure 12), lock the front wheel by pushing the tiller lock knob in and turning
it clockwise 90°. See figure 12A.
UNLOCKED
POSITION
WARNING! Before getting onto your scooter, always check that the tiller lock knob is in the un-
locked position. Attempting to ride your scooter with the tiller lock knob in the locked position can
result in personal injury.
2. Remove the seat by lifting it straight up and off of the scooter.
Go-Go

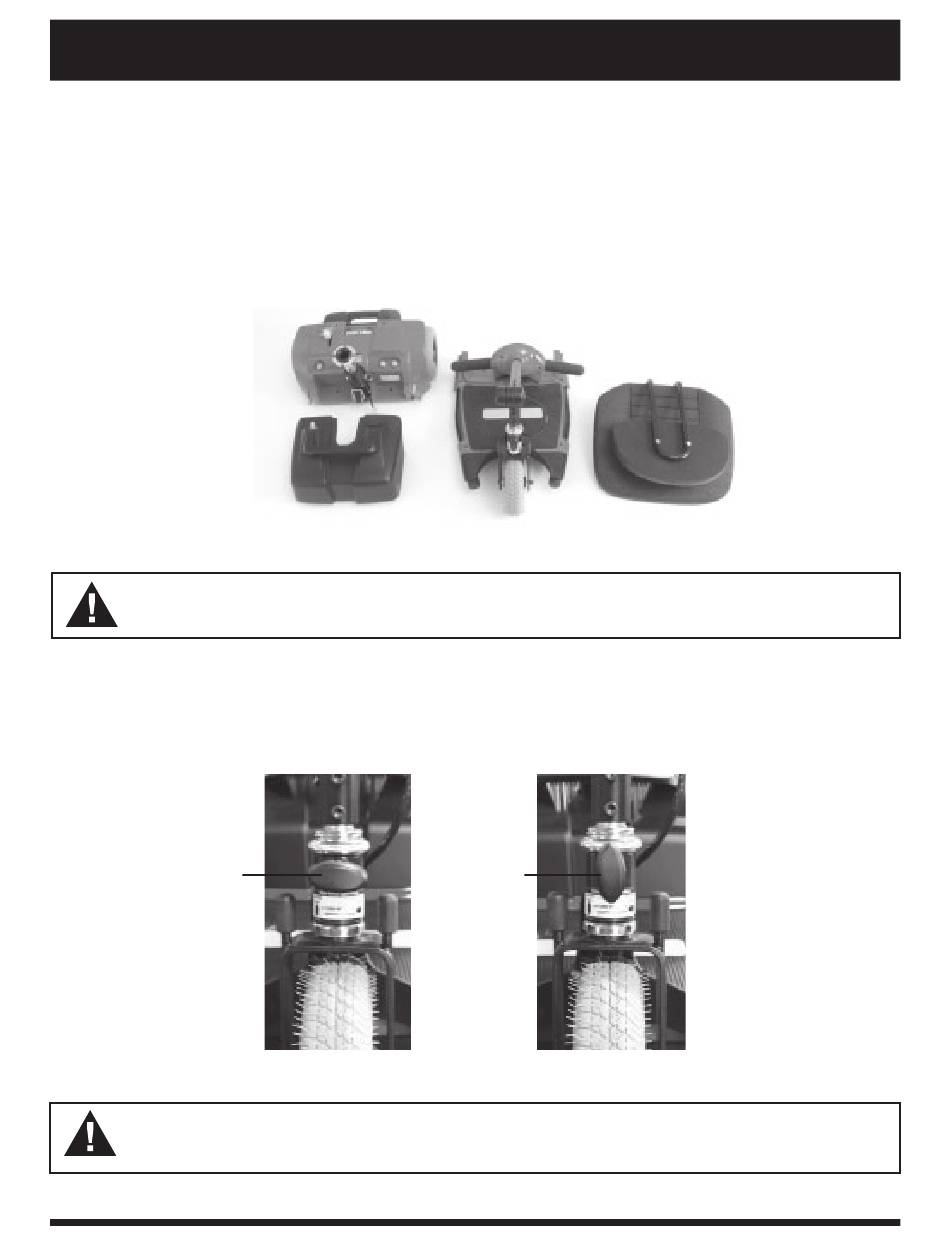

Figure 11. Disassembled Scooter
Figure 12. Tiller Lock Knob
(Unlocked)
FRONT SECTION
LOCKED
POSITION
Figure 12A. Tiller Lock Knob
(Locked)
SEAT
