CONSERV

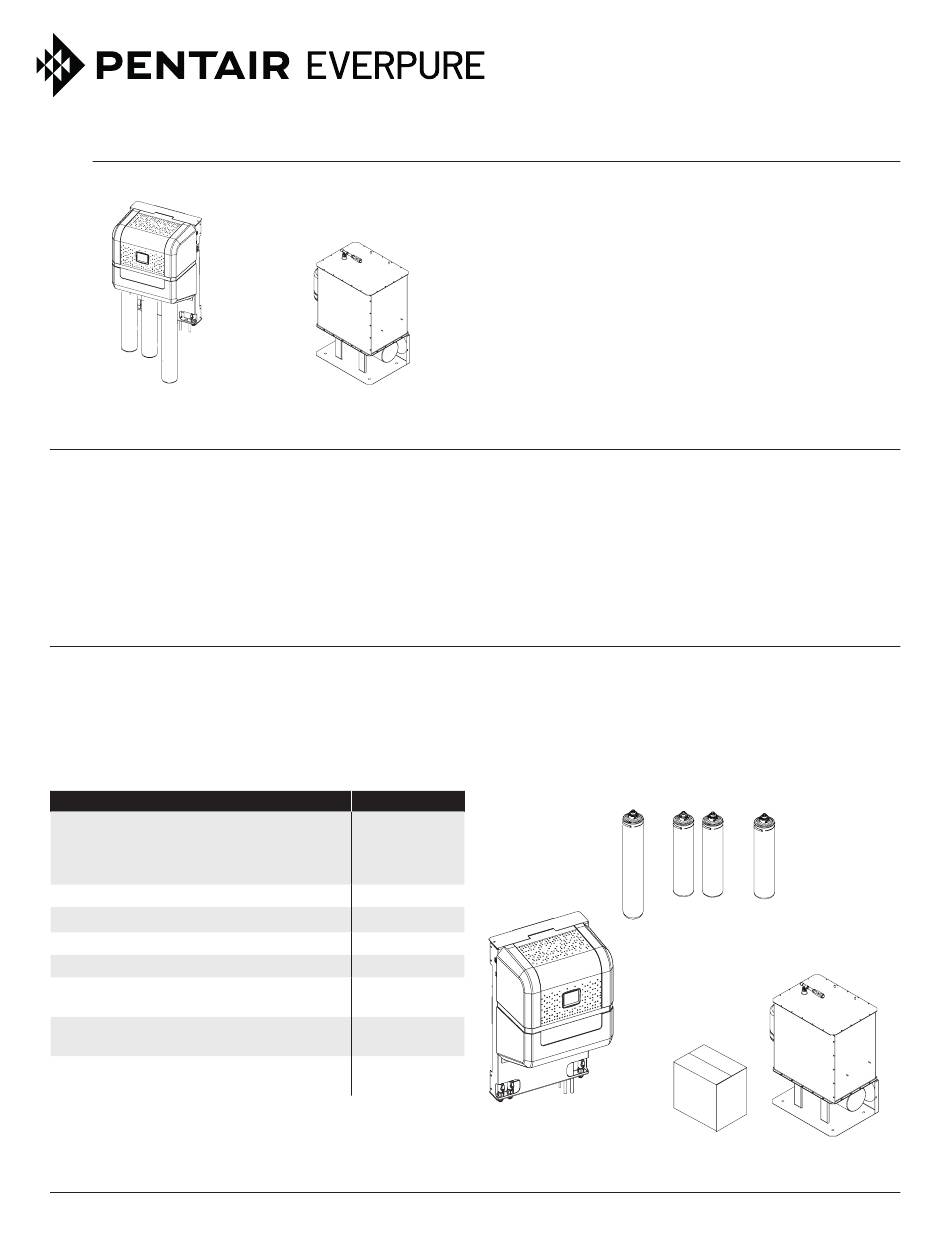

HE-3 HIGH EFFICIENCY REVERSE OSMOSIS SYSTEM
®
Conserv HE-3 Processor (Tank Included)
INTRODUCTION
The Everpure
Conserv HE-3 High Efficiency Reverse Osmosis System is a pre-engineered, pre-assembled system solution
®
designed to provide high purity water for numerous applications, such as premium espresso, coffee, ice, blended beverages
and steam. The system combines a number of water treatment technologies into one easy-to-install package. The system
provides superior protection against taste- and odor-causing contaminants while removing dirt*, particulates* and dissolved
solids that can foul or scale equipment.
* Protection against objectionable taste- and odor-causing contaminants and removal of dirt and particulates not performance
tested or certified by NSF
UNPACKING AND INSPECTION
Inspect the carton for damage. Carefully unpack and inspect each item. Report any damage to freight carrier immediately and
retain all packaging materials.
The Everpure
Conserv
HE-3 RO System includes all the necessary fittings for installation. Lengths of 3/8-inch and 1/2-inch
®
®
tubing have been provided for connecting to the wastewater drain connection. Supply lines and distribution piping/tubing are not
included.
The Conserv HE-3 RO System is packaged as a complete unit in two (2) cartons. You should have the following:
Parts
1. Plate Mounted Processor Assembly:
RO Booster Pump
Cartridge Heads
Controller and Power Supply
2. Everpure MR-600F RO Membrane Cartridge
+
3. Everpure SEN
Fine Filter Cartridges (Prefilter)
4. Everpure SEN Fine Filter Cartridge (Postfilter)
5. Parts Kit
6. Permeate Storage Tank with the Top Plate
7. Tank Booster Pump (Not shown)
8. 1/2 Gallon Accumulator (Not shown)
The MR-600F RO Heads and the SEN Postfilter Manifold will
each have one port plugged. If the installation requires the
use of a second MR-600F RO and the second SEN Postfilter,
the plugs must be removed to install these cartridges.
EVERPURE
CONSERV
HE-3 RO SYSTEM INSTALLATION AND OPERATION GUIDE
®
®
Conserv HE-3 15 Gallon Tank
+
. Everpure SEN
and SEN Fine Filter Cartridges not performance tested or certified by NSF.
®
Quantity
1
1
2
1
1
1
1
1
ORIGINAL INSTRUCTIONS
2
1
4
3
6
5
Advertisement
Table of Contents
Related Manuals for Pentair Everpure Conserv HE-3
Summary of Contents for Pentair Everpure Conserv HE-3
- Page 1 ORIGINAL INSTRUCTIONS CONSERV HE-3 HIGH EFFICIENCY REVERSE OSMOSIS SYSTEM ® Conserv HE-3 Processor (Tank Included) Conserv HE-3 15 Gallon Tank INTRODUCTION The Everpure Conserv HE-3 High Efficiency Reverse Osmosis System is a pre-engineered, pre-assembled system solution ® designed to provide high purity water for numerous applications, such as premium espresso, coffee, ice, blended beverages and steam.
-
Page 2: Operating Specifications
The system consists of seven (7) major components: OPERATING SPECIFICATIONS • Everpure Fine Filter Cartridges* ® Influent Water Characteristics: • Inlet Booster Pump Total Dissolved Solids: 0-1,000 ppm (0-1,000 mg/L) • Everpure MR-600F Reverse Osmosis (RO) Membrane Cartridge • Permeate Pump Free Chlorine: 0-3 ppm (0-3 mg/L) •... -
Page 3: Pre-Installation Checklist
NOTE: Incoming water supplies that do not meet the DIMENSIONS influent water characteristics requirements will require the addition of pretreatment equipment prior 18.4” to the Conserv HE-3 RO System. (46.7 cm) SELECTING A MOUNTING LOCATION 14.4” (36.5 cm) Locate the system in an area that is convenient to the inlet 29.0”... -
Page 4: Safety Instructions
NOTE: If the supply cord is damaged, it must be replaced disinfection before or after the system. The by the manufacturer, its service agent or similarly Pentair Everpure Conserv HE-3 Reverse qualified persons in order to avoid a hazard. - Page 5 EVERPURE CONSERV HE-3 RO SYSTEM QUICK START GUIDE ® ® 18.4” (46.7 cm) 13.4” (34.0 cm) 14.4” (36.5 cm) 29.0” (73.6 cm) 39.6” (100.5 cm) 27.9” (70.8 cm) Provide 3" clearance for changing cartridges 18.62” (47.3 cm) Wall Mounting Tubing Locations Blended Water To Application RO Water To...
- Page 6 Install Everpure and SEN Cartridges Cartridge Positions ® Plugs Pump Motor Switch Off Plug Open Head (Pre-installed) Bottom View Flush Everpure SEN Cartridge CLOSE OPEN Remove Insert 1/2" Tubing Tubing O.D. OPEN Flush for Five (5) Minutes Close Soft Water Valve WATER YOU CAN TRUST ®...
- Page 7 Install Everpure MR-600F RO Cartridge Flush Everpure MR-600F RO Cartridge ® ® Pump Switch Off Install Cartridge(s) Turn Power Switch ON Turn System Switch OFF Open Plug Open Head Plug Power (Pre-installed) Cord Into Direct 1/4" and 3/8" Outlet Lines to Drain When Water Exits Connect 3/8"...
- Page 8 Prepare Storage Tank Pump Switch Force Air Out Cover Power Removed Switch Off Flush Valve Closed Check Precharge (40 psi) Closed Open Unplugged Sanitize Storage Tank 1/2" O.D. Tubing Add 8 Oz. (237 mL) of 5.25% Bleach 15 gal (56.8 L) @ 200 ppm 3/8"...
- Page 9 Sanitize Storage Tank - Continued Pump Switch Off Flush Valve Power OPEN Switch CLOSE Flush Valve Once Tank Is Filled Closed Tank Fills Open Wait 15 Minutes Repeat Steps 6-12 Two (2) Times OPEN Valve Plug Into Slowly Wall Outlet Remove Ball Valve When Empty, (Bladder Stops Compressing) Unplug and CLOSE Ball Valve Connect Tank Tubing and Fill Tank...
- Page 10 Flush Everpure Postfilter Cartridge ® OPEN Hard Water Blend Valve OPEN Blended Water Outlet Valve and Flush for Five (5) Minutes. CLOSE Outlet Valve 1/2" O.D. Tubing to Drain OPEN Hard Water Inlet Valve CLOSE Hard Water Inlet Valve Plug Storage Tank Power Cord into HE-3 System Adjust The Blending Valves...
-
Page 11: System Assembly
SYSTEM ASSEMBLY 52/64” WARNING: Mounting surface may require reinforcement to support the Processor Assembly safely. Hollow walls, drywall and other non-structural surfaces 2-29/64” are not suitable for mounting unless reinforced. 2.45 1-5/8” WARNING: Do not use screws smaller than #12 (5.5 mm) for 1.63 mounting the Processor Assembly. - Page 12 (Figure 8) is in the off position. Conserv HE-3 RO System Assembly. Plug in the power cord. 5. Connect the appropriate size and type of tubing/piping The bottom of the Everpure Conserv HE-3 RO System has two and associated fittings to the Everpure Conserv HE-3 ®...
- Page 13 1. Attach 1/2-inch O.D. tubing for a drain line to the Flushing Valve. The tubing should run to a drain. Install Everpure SEN and SEN Fine Filter Cartridges 2. OPEN the Flushing Valve. 1. Remove the outer shrink wrap and protective caps from all of the cartridges.
- Page 14 5.25% bleach (200 ppm) into the tubing. Flush menu. 4. Connect the tubing to the Prefilter Flush Port NOTE: Passwords are available through Pentair Everpure (Figure 11). Use the 3/8" to 1/2" adapter and a short Technical Support at 630.307.3000.
- Page 15 Connect Tank Tubing 1. Remove the 3/8" to 1/2" Tubing Adapter and the 1/2" O.D. tubing. Connect 3/8" tubing from the Storage Tank to the connection (RO water out) on the Conserv HE-3 RO System (Figure 13). NOTE: Cartridges not shown. Soft Water Inlet Valve NOTE: Cartridges not shown.
- Page 16 NOTE: The Storage Tank will have a minor amount of pressure. Some water will exit the hole when the Adjust The Blending Valves fitting is removed. There are two (2) valves that are adjustable to provide a blend 6. CLOSE the Soft Water Inlet Valve. of RO permeate and incoming water to suit the application.
-
Page 17: User Interface (Ui)
Air Purge/Flush menu. The up/down arrows are used to Setting change the setting value. NOTE: Passwords are available through Pentair Everpure Technical Support at 630.307.3000. Cancel any changes on the current screen. 2. Press the Perform Tank Fill button to set the water level in the tank. - Page 18 NOTE: The Air Purge is used to push out any air that may Remote monitoring must be enabled to allow a Pentair have entered the Storage Tank. Pressure will build CES-9100TS E-30C Water Softener to communicate with in the Storage Tank until air is forced out of the the Everpure Conserv HE-3 RO System.
- Page 19 HE-3 RO System is supplied with ® ® 40% and 80% recovery restrictors. For the appropriate selection of flow restrictors for your application, please consult with Pentair Technical Service at 630.307.3000. EVERPURE CONSERV HE-3 RO SYSTEM INSTALLATION AND OPERATION GUIDE ®...
- Page 20 Filter Life This is a password-protected button. These System settings are critical to the operation of the Settings system. Contact Pentair Everpure Technical Support, at 630.307.3000 for more information about this setting. Settings accessed by this button are: • Date/Time •...
- Page 21 This button will only display under the following Clear Conserv HE-3 ® conditions: Lockout • The Main Pump (P1) is running. System Reset System • The system conditions are such that the Status Filter Life Settings Storage Tank should be receiving RO Calibrate Contact water.
- Page 22 The Prefilter Status screen is displayed when the Prefilter button is pressed. Prefilter Status • Pre-Filter Life is shown as a percentage remaining based on the volume of water used. Pre-Filter Life 100 % • Pressure Drop represents the pressure difference as Pressure Drop 0 psi measured before and after the prefilters.
- Page 23 Press the History button to display the first page of the system's history. Use the Left/Right arrow buttons to move to History Page 1 pages 2 and 3. NOTE: Most of these values cannot be reset in the History Pre-Filter Life 100 % menus, with the exception of filter life percentages.
- Page 24 System Settings Menu Interface System Settings Menu On the top level menu, accessing the System Settings Menu requires a password. Contact Pentair Everpure Technical Date and Store Support at 630.307.3000 to acquire the password.
- Page 25 Customer Everpure. Number The Pentair CES-9100TS E-30C Water Softener Softener has the ability to communicate with the Pentair In Use Everpure Conserv HE-3 RO System. If this feature is used, select this screen and set to YES. On the Store Settings Menu, press the Air Purge Frequency...
- Page 26 (2) hours. If inactivity continues, another Flush Cycle will be performed after 12 hours. NOTE: The Everpure Conserv HE-3 RO System will perform an automatic flush after 90 minutes of operation or every 12 hours if it is idle.
- Page 27 Press the Perform Tank Fill Button to display the Tank Fill Tank Fill Cycle Progress screen. This will show the tank percentage full and the current action. Tank Fill in progress. Tank Fill % Select Perform RO Rinse will pass water over a new RO Air Purge/Flush Cycle cartridge to initialize it.
- Page 28 Calibrate Sensors Menu Interface Calibrate Sensors Menu On the top level menu, accessing the Calibrate Sensors Menu requires a password. Contact Pentair Everpure to acquire the Pressure Pump 2 Tank password. Sensors Threshold Level CAUTION: Incorrect sensor settings will result in improper...
- Page 29 5. When finished, press the Check Mark to save the changes. NOTE: The Counts window is used by Pentair Everpure Customer Service as a diagnostic tool. Press the TDS Sensors button to display the TDS Calibration screen. Use the calibration setting (C) that is shown on the TDS Calibration sensor packaging.
- Page 30 5. When finished, press the Check Mark to save the changes. Contact Info Conserv HE-3 ® Press the Contact Info button to display Pentair's address and phone number. Pentair 1040 Muirfield Dr Hanover Park, IL 60133 (630) 307-3000 WATER YOU CAN TRUST...
-
Page 31: Maintenance Section
MAINTENANCE SECTION Performance Log Outlet Flow Inlet RO Water Pressure/ Only Reject Flow Temp. ounce/min ounce/min psi/°F Inlet TDS Hard Water RO Outlet Percent TDS Test Date Run Hours mL/min mL/min MPa/°C mg/L TDS mg/L TDS mg/L Reduction NOTES: EVERPURE CONSERV HE-3 RO SYSTEM INSTALLATION AND OPERATION GUIDE ®... -
Page 32: Troubleshooting Guide
RO permeate flows and TDS, then compare to previously recorded value or system specifications. If the fault reappears after returning to normal operation, replace controller and/or pressure transducer or contact Pentair Everpure Technical Support for further assistance. - Page 33 REPLACEMENT PARTS - CONSERV HE-3 RO SYSTEM Contact your local Pentair Everpure Dealer for replacement and spare parts. Number Part Number Description EV3148-51 Manifold Tray Assy EV3145-01 Flotec Pump ® EV3111-61 Valve, Needle, PVC, 3/8" EV3146-64 Controller EV3119-75 Union Tee, 1/2" Tube...
- Page 34 REPLACEMENT PARTS - PERMEATE STORAGE TANK 27 16 Number Part Number Description Number Part Number Description EV3145-33 PU Bladder, 15 gal. EV3145-19 Tank Base EV3150-66 Vane/Delivery Pump EV3149-02 Male Connector EV3145-74 Tank Shell Assy EV3148-11 White PE Tube, 1/2" OD, 3.0" L EV3145-73 SM Tank Bottom/Top EV3148-00...
-
Page 35: Maintenance
Tel: 800.942.1153 (US Only) • 630.307.3000 Main • Cartridge" on page 16, Perform Steps 1 through 10. Email: servicespecialist@pentair.com The system is ready to run. Use application blended water for five (5) minutes and test the TDS. If the measured TDS reading is not within the required specification of the application, then the blend should be adjusted. -
Page 36: Limited Warranty
All Pentair trademarks and logos are owned by Pentair. All other brands or product names are trademarks or registered marks of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
