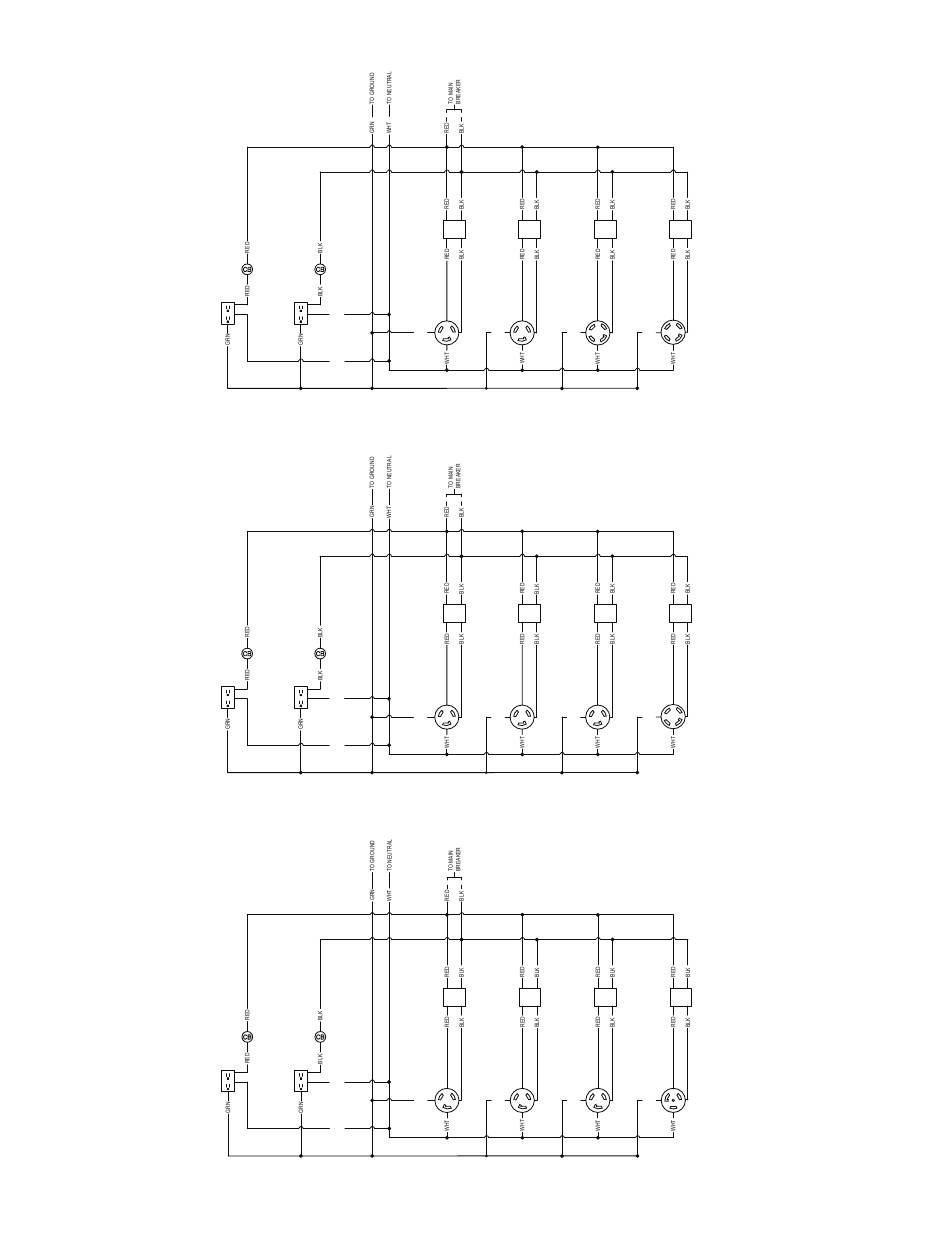

AC WIRING DIAGRAM - RECEPTACLE PANEL OPTIONS (1 OF 2)

20 AMP
CIRCUIT
BREAKER
20 AMP
G.F.I
OUTLET
20 AMP
CIRCUIT
BREAKER
20 AMP
G.F.I
OUTLET
20 AMP
CIRCUIT
BREAKER
20 AMP
G.F.I
OUTLET
30 AMP
CIRCUIT
BREAKER
20 AMP
CIRCUIT
BREAKER
240 VOLT
30 AMP
20 AMP
TWIST LOCK
G.F.I
WHT
RECEPTACLE
OUTLET
GRN
WHT
Receptacle Panel (2x5-20R, 2xL6-30R, 2xL14-50)
30 AMP
CIRCUIT
BREAKER
20 AMP
CIRCUIT
BREAKER
240 VOLT
30 AMP
20 AMP
G.F.I TWIST LOCK
WHT
RECEPTACLE
OUTLET
GRN
WHT
Receptacle Panel (2x5-20R, 3xL6-30R, 1xL14-50)
20 AMP
CIRCUIT
BREAKER
20 AMP
CIRCUIT
BREAKER
240 VOLT
20 AMP
20 AMP
TWIST LOCK
G.F.I
WHT
RECEPTACLE
OUTLET
GRN
WHT
Receptacle Panel (2x5-20R, 3xL6-20R, 1x50A)
30 AMP 50 AMP 50 AMP
CIRCUIT CIRCUIT CIRCUIT
BREAKER BREAKER BREAKER
240 VOLT
240 VOLT 240 VOLT
50 AMP
30 AMP 50 AMP
TWIST LOCK TWIST LOCK TWIST LOCK
RECEPTACLE
RECEPTACLE RECEPTACLE
GRN GRN GRN
30 AMP 30 AMP 50 AMP
CIRCUIT CIRCUIT CIRCUIT
BREAKER BREAKER BREAKER
240 VOLT
240 VOLT 240 VOLT
30 AMP 30 AMP 50 AMP
TWIST LOCK
TWIST LOCK TWIST LOCK
RECEPTACLE
RECEPTACLE RECEPTACLE
GRN GRN GRN
20 AMP 20 AMP 50 AMP
CIRCUIT CIRCUIT CIRCUIT
BREAKER BREAKER BREAKER
240 VOLT
240 VOLT 240 VOLT
20 AMP 20 AMP 50 AMP
TWIST LOCK TWIST LOCK TWIST-LOCK
RECEPTACLE
RECEPTACLE RECEPTACLE
GRN GRN GRN
