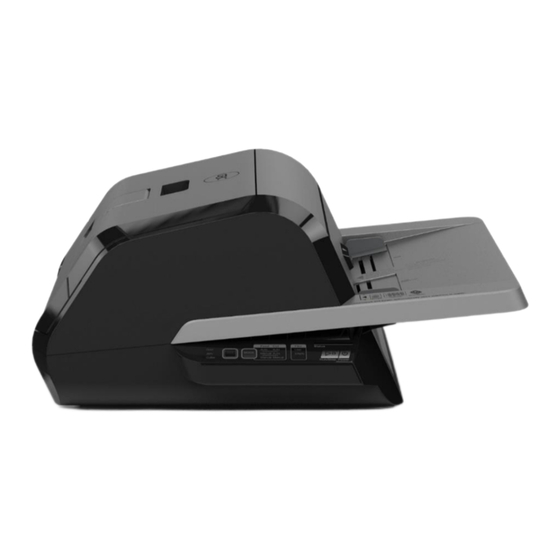

GBC FOTON 30 Installation & Operation Manual

Automated laminator
Hide thumbs Also See for FOTON 30:

Advertisement

Table of Contents

See also: Operation & Installation Manual
GBC FOTON 30
AUTOMATED LAMINATOR
INSTALLATION & OPERATION MANUAL
Document Number: CBT10000 Rev B
Do not duplicate without written permission from ACCO
Brands

Advertisement

Table of Contents
loading

Related Manuals for GBC FOTON 30

Summary of Contents for GBC FOTON 30

  • Page 1 GBC FOTON 30 AUTOMATED LAMINATOR INSTALLATION & OPERATION MANUAL Document Number: CBT10000 Rev B Do not duplicate without written permission from ACCO Brands...
  • Page 2 ACCO Brands reserves the right to make changes to this publication and to the products described in it without notice. All specifications and information concerning products are subject to change without notice. Reference in this publication to information or products protected by copyright or patent does not convey any license under the rights of ACCO Brands or others.
  • Page 3 Avoid quick stops, THE FOLLOWING WARNINGS ARE FOUND ON THE excessive force and uneven floor FOTON 30 AUTOMATED LAMINATOR. surfaces when moving the laminator on a cart or stand. • Do not defeat or remove electrical and mechanical safety equipment such as interlocks, shields and guards.
  • Page 4 To order replacement accessories, service, parts, easily accessible and grounded (3-pin) or an Equipment Maintenance Agreement, please receptacle (socket outlet) near the equipment. contact GBC Technical Service and Support at: • This laminator must be connected to a supply Australia...

  • Page 5: Warranty

    2. Warranty What this Warranty Does Not Cover Warranty Against Defects This product is provided with a 2 year warranty limited If ACCO Brands reasonably considers that any of the to defects in material and workmanship from the date following situations are present, this warranty does not of original purchase (you must retain proof of apply: purchase) (Warranty Period).

  • Page 6: Specifications

    Duty Cycle 80 documents per week Electrical Requirements   Voltage 120V, 60Hz   Receptacle NEMA 5-15P Yes (internal & non-replaceable) Fuse 5 – 35 (C) Operating Environment Maximum Altitude of 2,000m  Width Figure 1. Foton 30 Dimensions...

  • Page 7: Installation

    Avoid locating the laminator in the direct lint-free cloth and a mild detergent. path of forced, heated or cooled air. Caring for Foton 30 The only maintenance required by the operator is to periodically clean the rollers. Keeping the rollers clean ensures that your finished items will not be damaged by dirt and adhesive build-ups.

  • Page 10: Feature Guide

    5. Feature Guide A. GETTING TO KNOW YOUR LAMINATOR: rollers. This can be used to clear Shown in image A above) jams and debris for cleaning. a. FEED TRAY & SIDE GUIDES: MODE – allows users to toggle through i. Place document(s) to be three modes of operation.
  • Page 11 MANUAL FEED INDICATOR – Located on the Feeder Door, Illuminates GREEN when the laminator is ready for a document to be manually fed. C. FILM CARTRIDGE: (Shown in image C above) CARTRIDGE – inserts into the laminator. b. CARTRIDGE LABEL – indicates film thickness.

  • Page 12: Operation

    6. Operation Auto Feed. OPERATION MODES: Press the POWER button to turn the machine AUTO FEED / AUTO CUT Select the Manual Feed / Manual Cut mode by Note: Best for standard paper sizes printed on 75-120 gsm paper. pressing the Mode button. Press the POWER button to turn the machine ON.
  • Page 13 2. Remove Cartridge: Lift upward on the down on the laminator door to close; use cartridge handle to remove the installed the latch. 5. Ensure Cartridge is Fully Inserted: Film cartridge. 6. Empty indicator will be illuminated when no Caution: full cartridges tend to be heavy cartridge is installed or if the cartridge is Insert Cartridge: Insert replacement...

  • Page 14: Troubleshooting

    TROUBLE SHOOTING SYMPTON POSSIBLE CAUSE CORRECTIVE ACTION Pressing the Power The power cord may not Fully Insert plug into outlet button does not be inserted all the way turn the machine into outlet Make sure the outlet has power Status Indicator Door Error Indicator Red: Remove any paper from the feeder tray.
  • Page 15 Film Wrinkles on Film Misaligned Press and hold the RUN button to manually advance the film. After 125 output – 500mm of film has been advanced the wrinkle should work themselves out. If wrinkle clear press the manual cut button and you are ready to begin.
