INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE
CERTIFIED TO CANADIAN AND AMERICAN NATIONAL STANDARDS: ANSI Z21.50, CSA 2.22 FOR VENTED DECORATIVE GAS APPLIANCES
FOR INDOOR USE ONLY
SAFETY INFORMATION
WARNING
!
If the information in these instructions
are not followed exactly, a fi re or
explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certifi ed kit is used.
Phone (705)721-1212 • Fax (705)720-9081 • www.napoleonfi replaces.com • hearth@napoleonproducts.com
$10.00
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030

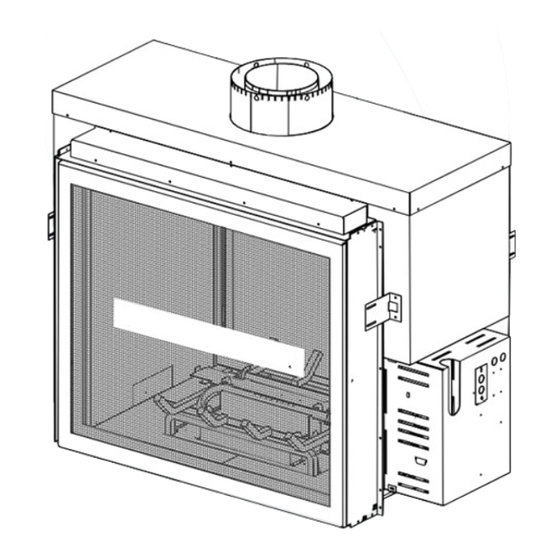

HD81NT-1
NATURAL GAS
HD81PT-1
PROPANE
DANGER
!
HOT GLASS WILL CAUSE
DO NOT TOUCH GLASS UNTIL
NEVER ALLOW CHILDREN TO
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
BURNS.
COOLED.
TOUCH GLASS.
1.28G
W415-2201 / C / 07.04.19
EN
FR
PG
55
Advertisement
Table of Contents
Related Manuals for Napoleon HD81NT-1
Summary of Contents for Napoleon HD81NT-1
- Page 1 Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)720-9081 • www.napoleonfi replaces.com • hearth@napoleonproducts.com $10.00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS NOTE: The camera icon indicates video tutorials are available as additional reference, visit http://mynapoleon.napoleonproducts.com/download/index/44/1 INSTALLATION OVERVIEW INTRODUCTION DIMENSIONS GENERAL INSTRUCTIONS GENERAL INFORMATION RATING PLATE INFORMATION VENTING VENTING LENGTHS AND COMPONENTS TYPICAL VENT INSTALLATION VENT TERMINAL CLEARANCES VENT APPLICATION FLOW CHART DEFINITIONS ELBOW VENT LENGTH VALUES HORIZONTAL TERMINATION... -
Page 3: Installation Overview
12.0 REPLACEMENTS 13.0 HD81-1 OVERVIEW 14.0 ACCESSORIES 15.0 TROUBLESHOOTING 16.0 WARRANTY 17.0 SERVICE HISTORY NOTE: Changes, other than editorial, are denoted by a vertical line in the margin. 1.0 INSTALLATION OVERVIEW See the section See the section “FRAMING - “VENTING - VENTING MINIMUM MANTEL LENGTHS AND AIR TERMINAL CLEARANCES”... -
Page 4: Introduction
2.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi... -
Page 5: Dimensions
DIMENSIONS 8" [203mm] 11" [279mm] 49 1/4" 42 7/8" 1252mm 1089mm 33 7/16" SAFETY SCREEN 849mm 54 1/4" 1378mm 39 7/16" 28 3/4" 1001mm 730mm W415-2201 / C / 07.04.19... -
Page 6: General Instructions
GENERAL INSTRUCTIONS WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT, WITH THE GLASS DOOR OPENED OR REMOVED. PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE. PROVIDE ADEQUATE VENTILATION. NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48 INCHES (121.9cm) FROM THE FRONT FACE OF THE APPLIANCE. -
Page 7: General Information
GENERAL INFORMATION FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND QUALITY! HD81-1 Altitude (FT) 0-4,500 0-4500 Max. Input (BTU/HR) 60,000 50,000 Max. Output Steady State (BTU/HR) 38,753 33,677 Effi ciency (w/the fan on) Min. Inlet Gas Supply Pressure 4.5"... -
Page 8: Rating Plate Information
TOURNEZ LA SOUPAPE D’ARRÊT MANUELLE VERS LA DROITE À « OFF ». NE FORCEZ PAS. 24 NAPOLEON ROAD, BARRIE. ONTARIO L4M 0G8 CANADA CLASSIFICATION: 115V 0.82AMP, 60HZ W385-1991 / A INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to the model, venting and gas type of the appliance. -
Page 9: Venting
3.0 VENTING WARNING RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE. IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT (0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM COMBUSTIBLES. -
Page 10: Typical Vent Installation
TYPICAL VENT INSTALLATION 16″ (40.6cm) MINIMUM 40 FT (12m) MAXIMUM 3 FT (0.9m) 36″ (91cm) MINIMUM MAXIMUM 24″ (61cm) MIN. 66 7/8” (170cm) 42 7/8″ PLUS RISE * 42 7/8″ (109cm) (109cm) 45.7 Refer to “VENTING” section. W415-2201 / C / 07.04.19... -
Page 11: Vent Terminal Clearances
VENT TERMINAL CLEARANCES = 3 feet = 2 x ACTUAL (4.6m) (0.9m) INSTALLATIONS CANADA U.S.A. 12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony. 12” (30.5cm) Δ 9” (228.6mm) Δ Clearance to windows or doors that open. 12”... -
Page 12: Vent Application Flow Chart
VENT APPLICATION FLOW CHART TOP EXIT Horizontal Termination Vertical Termination Vertical rise is equal Vertical rise is equal Vertical rise is less Vertical rise is less to or greater than to or greater than than horizontal run than horizontal run the horizontal run the horizontal run Horizontal run +... -
Page 13: Horizontal Termination
HORIZONTAL TERMINATION ) < (V See graph to determine the required vertical Simple venting confi guration (only one 90° elbow) rise V for the required horizontal run H 40 (12.2) 39 (11.9) 40 (12.2) 39 (11.9) 30 (9.1) REQUIRED 30 (9.1) VERTICAL 20 (6.1) RISE IN FEET... - Page 14 ) > (V See graph to determine the required vertical rise V for the Simple venting configuration (only one 90° elbow) required horizontal run H 150 (381) 147 (373) REQUIRED VERTICAL RISE IN INCHES 100 (254) (CENTIMETERS) V 57 (144) 50 (127) 24 (61) 20 (6.1)
-
Page 15: Vertical Termination
VERTICAL TERMINATION ) < (V Simple venting configurations. See graph to determine the required vertical rise V for the required horizontal run H 40 (12.2) 30 (9.1) REQUIRED VERTICAL RISE IN FEET 20 (6.1) (METERS) V 10 (3.1) 3 (0.9) (1.5) (3.1) (4.6) - Page 16 ) > (V Simple venting configurations. See graph to determine the required vertical rise V for the required horizontal run H 20 (6.1) 19 (5.8) REQUIRED VERTICAL RISE IN FEET 10 (3.1) (METERS) V 3 (0.9) (7.6) (9.1) (1.5) (3.1) (4.6) (6.1) HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H...
-
Page 17: Installation
4.0 INSTALLATION WARNING ENSURE TO UNPACK ALL LOOSE MATERIALS FROM INSIDE THE FIREBOX PRIOR TO HOOKING UP THE GAS AND ELECTRICAL SUPPLY. IF YOUR APPLIANCE IS SUPPLIED WITH A REMOTE, ENSURE THE REMOTE RECEIVER IS IN THE “OFF” POSITION PRIOR TO HOOKING UP THE GAS AND ELECTRICAL SUPPLY TO THE APPLIANCE. FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS EXACTLY. -
Page 18: Horizontal Installation
4.1.1 HORIZONTAL INSTALLATION WARNING THE FIRESTOP ASSEMBLY MUST BE INSTALLED WITH THE VENT SHIELD TO THE TOP. TERMINALS MUST NOT BE RECESSED INTO A WALL OR SIDING MORE THAN THE DEPTH OF THE RETURN FLANGE OF THE MOUNTING PLATE. This application occurs when venting through an exterior wall. Having determined the correct height for the air terminal VENT location, cut and frame a hole in the exterior wall as... -
Page 19: Using Flexible Vent Components
USING FLEXIBLE VENT COMPONENTS WARNING DO NOT ALLOW THE INNER FLEX PIPE TO BUNCH UP ON HORIZONTAL OR VERTICAL RUNS AND ELBOWS. KEEP IT PULLED TIGHT. SPACERS ARE ATTACHED TO THE INNER FLEX PIPE AT PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER FLEX PIPE. -
Page 20: Vertical Air Terminal Installation
4.2.2 VERTICAL AIR TERMINAL INSTALLATION WARNING MAINTAIN A MINIMUM 2” (51mm) SPACE BETWEEN THE AIR INLET BASE AND THE STORM COLLAR. Fasten the roof support to the roof using the screws provided. The roof support is optional. In this case the venting is to be adequately supported using either an alternate method suitable to the authority having jurisdiction or the optional roof support. -
Page 21: Mobile Home Installation
MOBILE HOME INSTALLATION This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas indicated on the rating plate. -
Page 22: Framing
5.0 FRAMING WARNING RISK OF FIRE! IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH ANY OTHER OUTSIDE WALL OF A HOME. - Page 23 WARNING DO NOT BUILD INTO THIS AREA - IT MUST BE LEFT CLEAR TO PROVIDE ADEQUATE CLEARANCE FOR THE VENT IN THIS 14” (35.6cm) WIDE AREA CENTERED ALONG THE FRONT OF THE FIREPLACE. NO COMBUSTIBLES ARE ALLOWED. FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING.
-
Page 24: Minimum Clearances To Combustibles
MINIMUM CLEARANCES TO COMBUSTIBLES Maintain these minimum clearances to combustibles from appliance and vent surfaces: Appliance framing: Use steel stud framing provided. Non- Combustible Appliance fi nishing: Front - 7 5/8” (194mm) to sides of appliance opening 16 1/16” (40.8cm) to top of appliance opening Combustible Appliance fi... -
Page 25: Steel Stud Framing Kit
STEEL STUD FRAMING KIT REF NO. PART NO. DESCRIPTION DIMENSIONS W585-0269 STUD SHIELD 1” x 2” x 4.4FT (25mm x 50.8mm x 1.35m) W650-0017 STUD, OUTSIDE STEEL 1 1/2” x 3 1/2” x 4.1FT (38mm x 88.9mm x 1.24m) W650-0041 STUD, INSIDE STEEL 1 1/2”... -
Page 26: Attach Side Studs (Legs)
5.3.2 ATTACH SIDE STUDS (LEGS) A. Attach the outside steel studs (2) to the top of the top steel stud (6). B. Fasten the outside steel studs (2) and inside steel studs (3) to the bottom steel studs (4). STUD SHIELD C. -
Page 27: Install Concrete Board Side And Center Panels
5.3.4 INSTALL CONCRETE BOARD SIDE AND CENTER PANELS With the frame assembly in place use drywall screws (11) to install the concrete board center (10) and sides (9). 5.3.5 STEEL FRAMING KIT SIDE TWO Repeat sections “INSIDE FRAME ASSEMBLY” through “INSTALL CONCRETE BOARD SIDE AND CENTER PANELS “... -
Page 28: Minimum Clearance To Combustible Enclosures
MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES WARNING RISK OF FIRE! THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT COVER THE APPLIANCE OPENING. THE STEEL STUD FRAMING KITS WITH CEMENT BOARD PROVIDED MUST BE INSTALLED. IMPORTANT: This appliance requires a minimum inside enclosure height of 84”... - Page 29 COMBUSTIBLE MATERIAL STEEL STUD FRAMING NON-COMBUSTIBLE MATERIAL 16 1/16" 7 5/8" 40.8cm 194mm 49 1/2" 54 11/16" 39 7/16" 125.7cm 139cm 100cm 33 7/16" 85cm 7 5/8" 194mm W415-2201 / C / 07.04.19...
-
Page 30: Minimum Mantel Clearances
MINIMUM MANTEL CLEARANCES WARNING RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE CLEARLY MAINTAINED. -
Page 31: Finishing
6.0 FINISHING WARNING RISK OF FIRE! NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED. DO NOT STRIKE, SLAM OR SCRATCH GLASS. -
Page 32: Door Removal / Installation
DOOR REMOVAL / INSTALLATION WARNING GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. IF EQUIPPED WITH DOOR LATCHES THAT ARE PART OF A SAFETY RELIEF SYSTEM, THEY MUST BE PROPERLY ENGAGED. DO NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED. FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR OPENINGS, LOUVRE OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR SERVICE. -
Page 33: Non-Combustible Facing Material
NON-COMBUSTIBLE FACING MATERIAL WARNING: The appliance opening may be recessed in non-combustible facing material provided it does not project more than 2" (50.8mm) past the face of the appliance. If greater projections are desired, increase the clearance to the sides and top by 2" (50.8mm) for every additional 1" (25.4mm) of projection. If using an optional surround, then 2"... -
Page 34: Electrical Information
7.0 ELECTRICAL INFORMATION WARNING DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE ELECTRICAL CIRCUIT. RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE APPLIANCE WALL SWITCH. -
Page 35: Wiring Diagram
WIRING DIAGRAM WARNING DO NOT WIRE 110 VOLTS TO THE VALVE OR WALL SWITCH. NIGHT BLOWER LIGHT NOTE: This appliance is equipped with a three-prong (grounding) plug for protection against shock hazard and should be connected into a properly grounded circuit. Do not cut or remove the grounding prong from the plug. -
Page 36: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM NOTE: RECEIVER WIRE IS BUNDLED UP IN THE CONTROL BOX AND ELECTRICAL BOX NEEDS TO BE INSTALLED REMOTELY. FOR INSTALLATION SEE “REMOTE RECEIVER INSTALLATION” SECTION. (BLACK) 3 PRONGE WIRE NUTS RECEPTACLE TO REMOTE RECEIVER (WHITE) GROUND (GREEN) L1 (BLACK) CABLE CONNECTOR... -
Page 37: Operation
8.0 OPERATION GENERAL TRANSMITTER LAYOUT TRANSMISSION CHILD SAFETY LOCK OUT ROOM TEMPERATURE LOW BATTERY ALARM TEMPERATURE SET POINT/ LEVEL/ STATUS AUX. OUTPUT SPLIT VALVE FLAME 35.18A INITIALIZING THE TRANSMITTER/BATTERY HOLDER FOR THE FIRST TIME Install the 4 AA batteries into the Profl ame 2 battery holder, note the polarity of the batteries and insert as indicated on the cover (+/-). -
Page 38: Temperature Display
TEMPERATURE DISPLAY With the system in the “OFF” position, press the °F °C Temperature Key and the Mode Key at the same time to change from degrees F to C. Look at the LCD screen on the Transmitter to verify that a C or F is visible to the right of the Room Temperature display. -
Page 39: Continuous Pilot / Intermittent Pilot (Cpi / Ipi) Selection
CONTINUOUS PILOT / INTERMITTENT PILOT (CPI / IPI) SELECTION Use the Mode Key to guide you to the CPI mode icon. Transmitter in the OFF position. °F °F Press the UP/DOWN to switch between IPI and CPI modes. A single BEEP will confi rm reception of the command. -
Page 40: Operating Instructions
9.0 OPERATING INSTRUCTIONS WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 41: Adjustment
10.0 ADJUSTMENT 10.1 PILOT BURNER ADJUSTMENT Adjust the pilot screw to provide properly sized fl ame. Turn in a clockwise direction to reduce the gas fl ow. Check Pressure Readings: Inlet pressure can be checked by turning screw (A) counter- clockwise 2 or 3 turns and then placing pressure gauge tubing over the test point. -
Page 42: Maintenance
11.0 MAINTENANCE MAINTENANCE MAINTENANCE WARNING MAINTENANCE TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS. DO NOT PAINT THE PILOT ASSEMBLY. This appliance and its venting system should be inspected before use and at least annually by a qualifi ed service person. -
Page 43: Annual Maintenance
11.1 ANNUAL MAINTENANCE WARNING THE FIREBOX BECOMES VERY HOT DURING OPERATION. LET THE APPLIANCE COOL COMPLETELY OR WEAR HEAT RESISTANT GLOVES BEFORE CONDUCTING SERVICE. NEVER VACUUM HOT EMBERS. DO NOT PAINT THE PILOT ASSEMBLY. • This appliance will require maintenance which should be planned on an annual basis. •... -
Page 44: Control Access
11.2 CONTROL ACCESS 11.2.1 INNER ACCESS PANEL NOTE: A new gasket will be required, when re-installing the access panel (see “HD81-1 OVERVIEW” in the “REPLACEMENTS” section). Remove one of the main doors, see “DOOR VALVE REMOVAL / INSTALLATION” section. Remove either ACCESS the optional brick or porcelain panel from the side HOLE... -
Page 45: Night Light
11.4 NIGHT LIGHT™ This appliance comes equipped with two “Night Lights™”. The lights have been pre-wired and are controlled from the remote control. If in the event the lamps or lens need replacing, follow the instructions below: A. Shut off breaker at main power supply GASKET B. -
Page 46: Care Of Glass
11.6 CARE OF GLASS DO NOT CLEAN GLASS WHEN HOT! DO NOT USE WARNING ABRASIVE CLEANERS TO CLEAN GLASS. HOT GLASS WILL Buff lightly with a clean dry soft cloth. Clean both sides CAUSE BURNS. of the glass after the fi rst 10 hours of operation with a DO NOT TOUCH GLASS recommended fi... - Page 47 W415-2201 / C / 07.04.19...
- Page 48 W415-2201 / C / 07.04.19...
- Page 49 15.0 TROUBLESHOOTING WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS.
- Page 50 SYMPTOM PROBLEM TEST SOLUTION Exhaust fumes Appliance is spilling. Check door seal. smelled in room, Check for exhaust damage. headaches. Check that venting is installed correctly. Room is in negative pressure; increase fresh air supply. Pilot will not light. Wiring. Verify the wire for the sensor and the wire for the Makes noise with ignitor are connected to the correct terminals (not...
- Page 51 SYMPTOM PROBLEM TEST SOLUTION Pilot sparks but Gas supply. Verify that the incoming gas line ball valve is “Open”. will not light. Verify that the inlet pressure reading is within acceptable limits, inlet pressures must not exceed 13” W.C. (34.9mb). Module is not grounded.
- Page 52 All parts replaced under the President’s Limited Lifetime Warranty Policy are subject to a single claim. During the fi rst 10 years NAPOLEON will replace or repair the defective parts covered by the lifetime warranty at our discretion free of charge.
- Page 53 17.0 SERVICE HISTORY 43.1 W415-2201 / C / 07.04.19...
