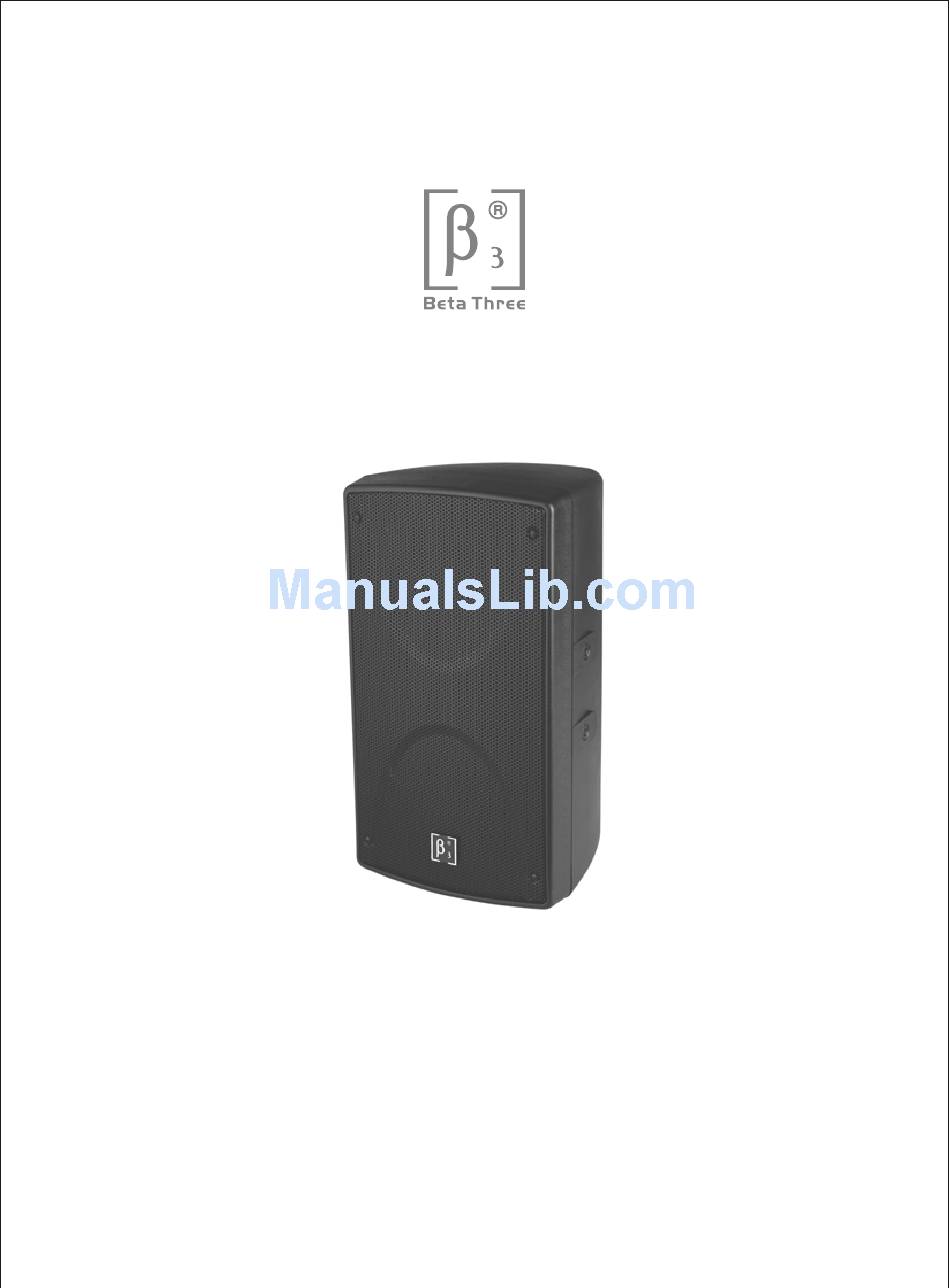

- Page 1 S800N USER MANUAL ED-B3-MA-061129-001...
-
Page 2: Table Of Contents
CONTENTS PRODUCT FEATURES SPECIFICATION ACOUSTIC CHARTS INSTALLATION DIMENSIONS LIMITED WARRANTY... -
Page 3: Product Features
The coaxial transducer newly developed by our factory used in S800N has only one magnetic circuit structure shared by the mid-low and high section, which has effectively solved the phase error problem of the mid-low and high range along X, Y and Z axis in 3D space. - Page 4 S800N FREQUENCY RESPONSE 1 0 0 D e g - 36 - 108 - 180 FREQUENCY RESPONSE 1 4 0 D e g 1 1 0 - 36 - 108 - 1 0 - 180...
- Page 5 S800N HF IMPEDANCE -120 -150 -180 20 Hz LF IMPEDANCE -120 -150 -180 20 Hz...
- Page 6 S800N WATERFALL - 10 - 15 - 20 - 25 1 50 2 00 50 0 1 0K 2 0K 100.0 D e g dBSPL 90.0 80.0 70.0 - 36 60.0 - 108 50.0 - 180 Frequency Response 2nd Distortion...
- Page 7 S800N HORIZONTAL DIRECTIVITY The data of S800N horizontal directivity were collected by testing the speaker system in a big anechoic chamber. 100Hz 160Hz 200Hz 400Hz 630Hz 1.0kHz 1.6kHz 2.5kHz 3.15kHz 6.3kHz 10kHz 16kHz The scale is stepped by 6dB increment.
- Page 8 S800N VERTICAL DIRECTIVITY The data of S800N vertical directivity were collected by testing the speaker system in a big anechoic chamber. 100Hz 160Hz 200Hz 400Hz 630Hz 1.0kHz 1.6kHz 2.5kHz 3.15kHz 6.3kHz 10kHz 16kHz The scale is stepped by 6dB increment.
-
Page 9: Installation
S800N INSTALLATION µ õ × ° µ õ × ° DIMENSIONS 265mm Top view Front view 292mm Side view Back view... -
Page 10: Limited Warranty
To obtain warranty service, customer must deliver proof of purchase of the product in the form of a bill of sale or receipt invoice. S800N Speakers and Speaker Systems are guaranteed against malfunction due to defects in materials or workmanship for a period of three (3) years from the date of original purchase. The Limited Warranty does not apply to burned voice coils or malfunctions such as cone and/or coil damage resulting from improperly designed enclosures. - Page 11 S800N www.elderaudio.com...
