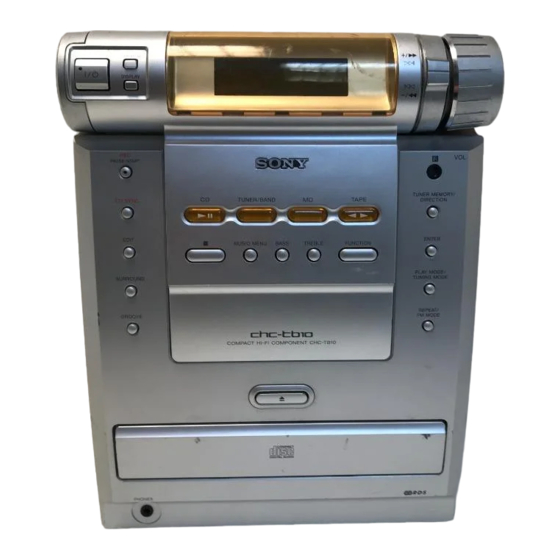

- Page 1 4-239-183-11(2) Compact Hi-Fi Component System Operating Instructions CHC-TB10 © 2002 Sony Corporation...
- Page 2 Don’t throw away the battery with general house waste, dispose of it correctly as chemical waste. NERGY registered mark. As an NERGY Sony Corporation has determined that this product meets the ® guidelines for energy efficiency. This appliance is classified as a CLASS 1 LASER product.
-
Page 3: Table Of Contents
Table of Contents List of Button Locations and Reference Pages Main unit ... 4 Remote control ... 5 Getting Started Hooking up the system ... 6 Inserting two R6 (size AA) batteries into the remote ... 7 Attaching the speaker pads ... 7 Setting the clock ... -
Page 4: List Of Button Locations And Reference Pages
List of Button Locations and Reference Pages How to use this page Use this page to find the location of buttons and other parts of the system that are mentioned in the text. Main unit ALPHABETICAL ORDER A – G BASS wa (18) CD disc tray qk (8) CD SYNC wj (16) -
Page 5: Remote Control
Remote control ALPHABETICAL ORDER A – G CD ql (9) CLEAR wd (10) CLOCK/TIMER SELECT 2 (21, 25) CLOCK/TIMER SET 3 (8, 17, 20) DISPLAY qh (14, 21) EFFECT ON/OFF qf (19) ENTER 7 (8, 10, 11, 17, 20, 27) GROOVE qd (18) M –... -
Page 6: Getting Started
Getting Started Hooking up the system Perform the following procedure 1 to 4 to hook up your system using the supplied cords and accessories. Right speaker 1 Connect the speakers. Connect the speaker cords to the SPEAKER terminals as the following. Insert this portion Red/Solid (3) Black/Stripe ( #) -
Page 7: Inserting Two R6 (Size Aa) Batteries Into The Remote
Jack type B Extend the FM lead antenna horizontally AM loop antenna 3 For models with a voltage selector, set VOLTAGE SELECTOR to the local power line voltage. VOLTAGE SELECTOR 230- 240V 220V 120V 4 Connect the power cord to a wall outlet. The demonstration appears in the display. -
Page 8: Setting The Clock
Setting the clock Turn on the system. Press CLOCK/TIMER SET on the remote. “CLOCK” appears. Press . or > on the remote to set the hour. Press ENTER. The minute indication flashes. Press . or > on the remote to set the minute. -
Page 9: Playing A Cd
Playing a CD — Normal Play/Shuffle Play/Repeat Play This system lets you play the CD in different play modes. Playing time Track number Press FUNCTION repeatedly (or press CD on the remote) to switch the function to CD. Press PLAY MODE/TUNING MODE in stop mode repeatedly until the mode you want appears in the display. -
Page 10: Programing Cd Tracks
Programing CD tracks — Program Play You can make a program of up to 25 tracks. Press FUNCTION repeatedly (or press CD on the remote) to switch the function to CD. Press PLAY MODE/TUNING MODE repeatedly until “PGM” appears. Slide the knob to l or to L (or press . -
Page 11: Tuner
Tuner Presetting radio stations You can preset up to 20 FM stations and 10 AM stations. You can then tune in any of those stations simply by selecting the corresponding preset number. There are two ways to store the station presets. Method Automatic Tuning Preset Automatically tune... -
Page 12: Setting Presets Through Manual Tuning
Presetting radio stations (continued) Setting presets through manual tuning Press TUNER/BAND repeatedly to select “FM” or “AM”. Press PLAY MODE/TUNING MODE repeatedly until “AUTO” and “PRESET” disappear. When you use the remote in step 3, skip this procedure. Slide the knob to – or to + (or press TUNING –... -
Page 13: Listening To The Radio -Preset Tuning
Listening to the radio You can listen to a radio station either by selecting a preset station, or by manually tuning in the station. Listening to a preset station — Preset Tuning Preset radio stations in the tuner’s memory first (see “Presetting radio stations”... -
Page 14: Using The Radio Data System (Rds)
Using the Radio Data System (RDS) (European model only) What is the Radio Data System? Radio Data System (RDS) is a broadcasting service that allows radio stations to send additional information along with the regular program signal. This tuner offers convenient RDS features like station name and program type* display. -
Page 15: Tape
Tape Loading a tape Open the lid with your hand and insert a tape. With the side you want to play facing up To remove the tape, lift up the tape from the side as shown in the illustration. Close the lid with your hand. Playing a tape You can use TYPE I (normal) tape. -
Page 16: Recording To A Tape
Recording to a tape — CD Synchro Recording/Recording Manually/Program Edit You can record from a CD or radio (or connected components). You can use TYPE I (normal) tapes. The recording level is adjusted automatically. Steps Recording from a CD (CD Synchro Recording) Load a recordable tape. -
Page 17: Timer-Recording Radio Programs
Recording a CD by specifying track order — Program Edit Load a CD and load a recordable tape. Program CD tracks following step 1 to 5 in “Programing CD tracks” on page 10. Press CD SYNC. The tape deck stands by to record. The CD player stands by for playback. -
Page 18: Sound Adjustment
Timer-recording radio programs (continued) Do this Press CLOCK/TIMER Activate/check the setting SELECT on the remote and press . or > on the remote to select “REC”, then press ENTER. Change the setting Start over from step 1. Cancel the timer Press CLOCK/TIMER SELECT on the remote and press . -
Page 19: Selecting The Preset Music Menu
Adjusting the treble Press TREBLE (or press TONE on the remote repeatedly until “TREBLE” appears). Slide the knob to . or to > (or press . or > on the remote) repeatedly to adjust the treble. You can adjust the treble in 11 steps (from –5 to + 5). -
Page 20: Timer
Timer Falling asleep to music — Sleep Timer You can set the system to turn off after a certain time, so that you can fall asleep to music. Press SLEEP on the remote. Each time you press the button, the minute display (the turn-off time) changes cyclically as follows: AUTO* t 90min t 80min t …... -
Page 21: Display
Press ENTER. The start time, the stop time, and the sound source appear in turn, then the original display returns. Press ?/1 to turn off the system. Do this Activate/check the Press CLOCK/TIMER setting SELECT on the remote, then press . or > on the remote until “DAILY”... -
Page 22: Adjusting The Brightness Of The Display Back Light
Adjusting the brightness of the display back light Press DIMMER repeatedly while the system is on. You can adjust the back light brightness cyclically as follows: DIMMER 0 t DIMMER 1 t DIMMER 2 t DIMMER 3 Using the display Checking the remaining time (CD) Press DISPLAY during play. -
Page 23: Optional Components
Optional Components Hooking up optional components You can connect a digital or an analogue component to this system. Optional analogue component From the audio output jacks of an analogue component A MD IN jacks Use audio cords (not supplied) to connect an optional component (such as an MD player or VCR) to these jacks. -
Page 24: Listening To Audio From A Connected Component
Listening to audio from a connected component Connect the audio cords. See “Hooking up optional components” on page 23. Press MD to switch the function to MD. Start playing the connected component. Recording on a connected digital component Connect the digital cable. See “Hooking up optional components”... -
Page 25: Troubleshooting
CD player. The CD does not eject. • Consult your nearest Sony dealer. Play does not start. • Open the CD tray and check whether a CD is loaded. - Page 26 • Locate the antennas as far away from the speaker cords as possible. • Consult your nearest Sony dealer if the supplied AM antenna has come off the plastic stand. • Try turning off surrounding electrical equipment. A stereo FM program cannot be received in stereo.
-
Page 27: Messages
If the system still does not operate properly after performing the above measures, reset the system as follows: Unplug the power cord. Plug the power cord back into the wall outlet. Press ?/1 to turn on the system. Press x, ?/1 and ENTER at the same time. -
Page 28: Additional Information
• When you move the system, take out any discs. If you have any questions or problems concerning your system, please consult your nearest Sony dealer. On the speaker system This speaker system is not magnetically shielded and the picture on TV sets may become magnetically distorted. - Page 29 Notes on CDs • Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out. • Do not use a CD with tape, seals, or paste on it as this may damage the player. • Do not use solvents. •...
-
Page 30: Specifications
2 Hz – 20 kHz (±0.5 dB) 660 nm 4-track 2-channel stereo 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes ±0.15% W. Peak (IEC) 0.1% W. RMS (NAB) ±0.2% W. Peak (DIN) 87.5 – 108.0 MHz... - Page 31 Speaker (SS-TB10) Speaker system 2-way, bass-reflex type Speaker units Woofer: 15 cm dia., cone type Tweeter: 5 cm dia., cone type Nominal impedance 6 ohms General Power requirements European models: 230 V AC, 50/60 Hz Mexican model: 120 V AC, 60 Hz Other models: 120 V, 220 V, 230 –...
- Page 32 Sony Corporation Printed in China...
