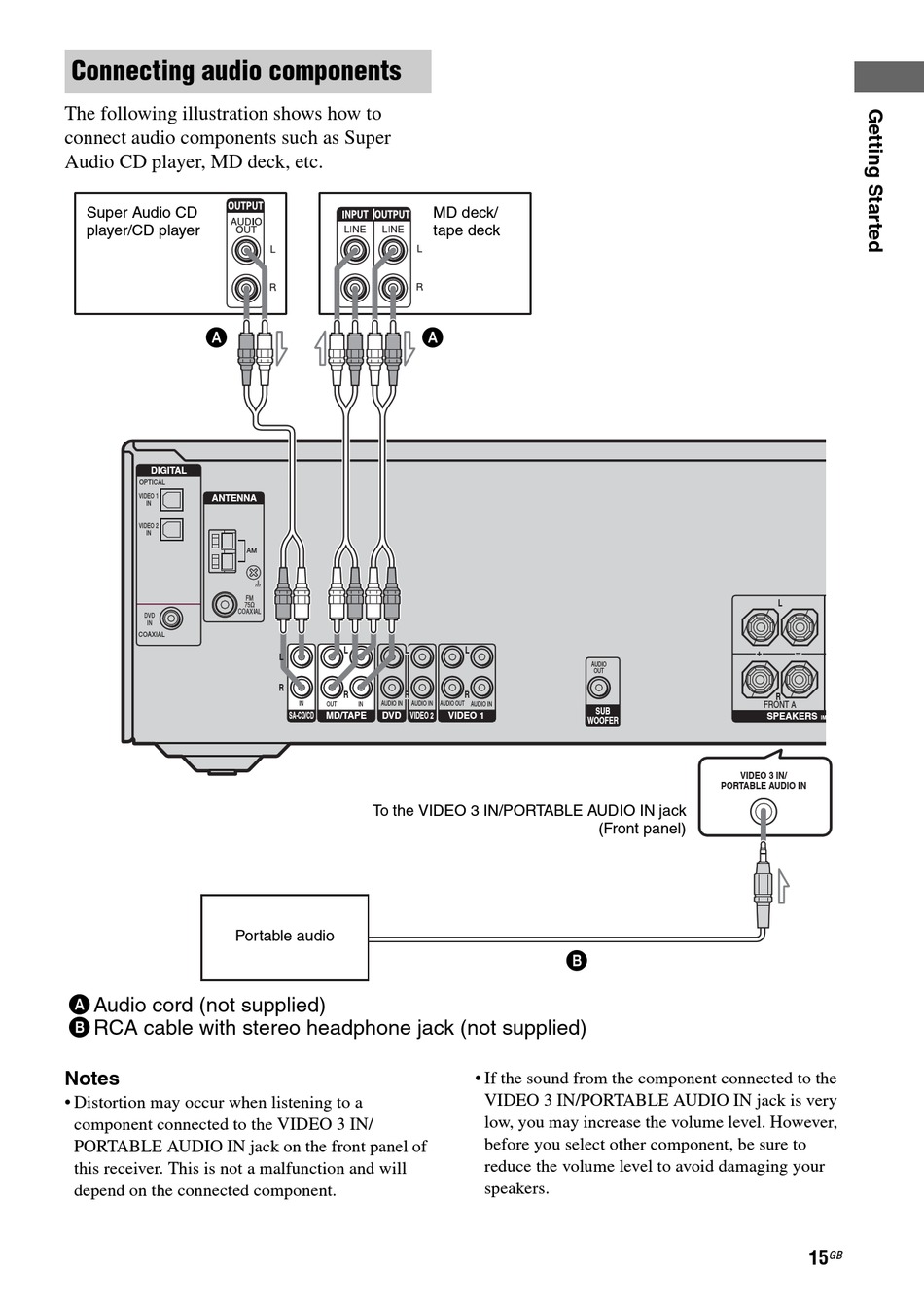

Connecting audio components
The following illustration shows how to
connect audio components such as Super
Audio CD player, MD deck, etc.
Super Audio CD
player/CD player
A
DIGITAL
OPTICAL
VIDEO 1
ANTENNA
IN
VIDEO 2
IN
DVD
IN
COAXIAL
Portable audio
A Audio cord (not supplied)
B RCA cable with stereo headphone jack (not supplied)
Notes
• Distortion may occur when listening to a
component connected to the VIDEO 3 IN/
PORTABLE AUDIO IN jack on the front panel of
this receiver. This is not a malfunction and will
depend on the connected component.
A
AM
L
L
L
R
R
R
IN
OUT
IN
AUDIO IN
AUDIO IN
SA-CD/CD
MD/TAPE
DVD
VIDEO 2
To the VIDEO 3 IN/PORTABLE AUDIO IN jack
MD deck/
tape deck
L
AUDIO
OUT
R
AUDIO OUT
AUDIO IN
SUB
VIDEO 1
WOOFER
(Front panel)
B
• If the sound from the component connected to the
VIDEO 3 IN/PORTABLE AUDIO IN jack is very
low, you may increase the volume level. However,
before you select other component, be sure to
reduce the volume level to avoid damaging your
speakers.
L
+
–
R
FRONT A
SPEAKERS
VIDEO 3 IN/
PORTABLE AUDIO IN
15
GB
