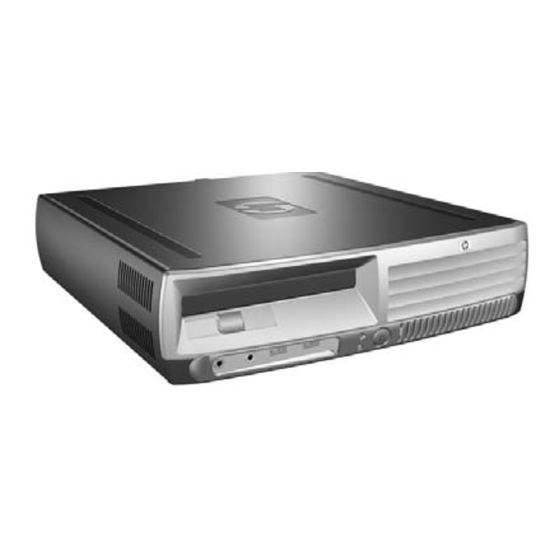

HP Compaq dc7600 Series Disassembly Instructions Manual

Business desktop pc
Hide thumbs Also See for Compaq dc7600 Series:

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, User Manual
HP-00007-01, Appendix 3
Appendix 3 Product End-of-Life Disassembly instructions – rev a
Product Identification:
Marketing Name / Model
HP Compaq Business PC dc7600 series - SFF
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the
basic instructions for the disassembly of HP products to remove components and materials requiring
selective treatment.
1.0
Items Requiring Selective Treatment
1.1
Items listed below are classified as requiring selective treatment.
1.2
Enter the quantity of items contained within the product which require selective treatment in
the right column, as applicable.
Item Description
Printed Circuit Boards (PCB) or Printed
Circuit Assemblies (PCA)
Batteries
Mercury containing components
Liquid Crystal Displays (LCD) with a
surface greater than 100 square cm
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing
PCB / PCT)
Electrolytic Capacitors / Condensers
measuring greater than 2.5 cm in
diameter or height
External electrical cables and cords
Gas Discharge Lamps
Plastics containing Brominated Flame
Retardants
Components and parts containing toner
and ink, including liquids, semi-liquids
(gel/paste) and toner
Components and waste containing
asbestos
Components, parts and materials
containing refractory ceramic fibers
Components, parts and materials
containing radioactive substances
Description
HP business desktop PC
Notes
With a surface greater than 10
square cm
All types including standard
alkaline and lithium coin or button
style batteries
For example, mercury in lamps,
display backlights, scanner lamps,
switches, batteries
Includes background illuminated
displays with gas discharge lamps
PSU cables, IDE cables, SATA
cables.
Include the cartridges, print
heads, tubes, vent chambers, and
service stations.
HP Restricted
22-Aug-2005
Qty items in
product.
2 (sys bd, power
supply PCA)
1
6, 4, or 2
depending on
power supply
Page 1
