HP Compaq dc7600 Series Supplementary Manual

HP Compaq Business PC
dc7600 Series Personal Computer
Illustrated Parts Map

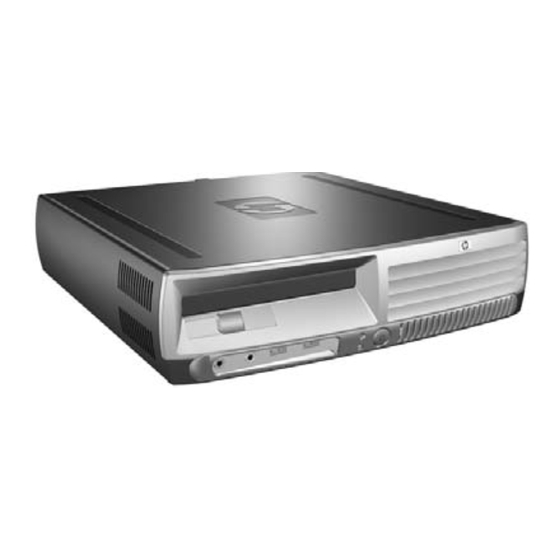

Ultra-Slim Desktop
System Unit
1 Computer access panel
2 Chassis
3 Power supply
4 Front bezel assembly (painted)
* Front bezel assembly (not painted) Blue Angel only
*Not shown
Cables
1 Serial/Parallel port expansion card with cables
2 SATA hard drive cable, 11"
3 Front I/O device with USB, Power LED, Audio In,
and Audio Out cables
* Thermal sensor cable assembly
*Not shown
© 2005 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided "as is" without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
Standard and Optional Boards
1 System board with alcohol pad and thermal grease
394047-001
2 Riser board for expansion card cage
not spared
3 MultiBay riser card with holder
381025-001
Memory Modules
394048-001
* 256 MB/533 MHz FSB
394049-001
* 512 MB/533 MHz FSB
* 1.0 GB/533 MHZ FSB
* 256 MB/667 MHz FSB
* 512 MB/667 MHz FSB
* 1.0 GB/667 MHz FSB
Intel Pentium 4 Processors with alcohol pad and thermal grease
* 2.8 GHz\800 MHz FSB, 1MB cache, 521
* 3.0 GHz\800 MHz FSB, 1MB cache, 531
* 3.2 GHz\800 MHz FSB, 1MB cache, 541
* 3.0 GHz\800 MHz FSB, 2MB cache, 630
* 3.2 GHz\800 MHz FSB, 2MB cache, 640
* 3.4 GHz\800 MHz FSB, 2MB cache, 650
Intel Celeron D Processors with alcohol pad and thermal grease
* 2.66 GHz\533 MHz FSB, 256KB cache, 331
* 2.8 GHz\533 MHz FSB, 256KB cache, 336
Other cards
* Intel Gigabit NIC
* NVidia Quadro NVS 280, 64 MB PCI card
* DVI card assembly
* 1394, Full height bracket
*Not shown
394061-001
Mass Storage Devices (not illustrated)
392309-001
394052-001
40 GB\7200 RPM SATA hard drive
80 GB\7200 RPM SATA hard drive
394058-001
160 GB\7200 RPM SATA hard drive
MultiBay Components
24X CD-ROM MultiBay drive
24X/24X/24X/8X CD-RW/DVD-ROM
8X/24X DVD-ROM MultiBay drive
Development Company, L.P.
warranty.
1st Edition, June 2005
Document Number
390741-001
381029-001
378832-001
394051-001
393392-001
393393-001
393394-001
396519-001
396520-001
398038-001
394643-001
394642-001
394812-001
392273-001
384786-001
384787-001
391940-001
391941-001
314901-005
351384-005
394059-001
361552-001
365555-001
391945-001
391741-001
325314-005
346789-005
325316-005
Miscellaneous Parts
1 Speaker
2 Heatsink with thermal grease and alcohol pad
3 Hood sensor
4 CPU backplate
5 PCI riser card cage assembly
* S-DVI slot cover
* Thumbscrew
* Chassis fan assembly
* Mouse, 2-Button, PS/2 with scroll wheel
* Mouse, 2-Button, USB, with scroll wheel
* Mouse, 2-Button, USB, optical with scroll wheel
* Drive Key II, 256 MB
* Real-time-clock battery
* Port control cover
* HP Business PC Security Lock (without cable)
* HP Business PC Security Lock (with cable)
* Tower stand
* Foot kit, oval and round (4 ea)
* DVI to VGA adapter
*Not shown
Keyboards (not illustrated)
PS/2, Basic 382925-xxx
USB, Basic 382926-xxx
USB, Basic, BG1650 382927-xxx
Belgian* -181 Korean (Hanguel)
BHCSY -B41 LA Spanish
Brazilian Portuguese -201 Norwegian
Czech -221 PRC
Danish* -081 Portuguese
Finnish -351 Slovakian
French* -051 Spanish
French Arabic -DE1 Swedish*
French Canadian -121 Swiss*
German* -041 Taiwanese
Hebrew -BB1 Thai
Hungarian -211 Turkish
International* -B31 U.S.
Italian* -061 U.K.
Japanese -291
*Only these countries include the 382927 keyboard
PS/2, Basic, 105 key 396215-xxx
USB, Basic, 105 key 396217-xxx
Arabic -171 Russian
Greek -151
394779-001
382025-001
394064-001
394053-001
394050-001
394054-001
394055-001
394056-001
390937-001
323615-005
390938-001
372889-001
153099-001
394060-001
335808-005
335809-005
394062-001
370708-001
202997-005
-AD1
-161
-091
-AA1
-131
-231
-071
-101
-111
-AB1
-281
-141
-001
-031
-251
