HP-00007-01, Appendix 3
Appendix 3 Product End-of-Life Disassembly instructions – rev a
Product Identification:
Marketing Name / Model

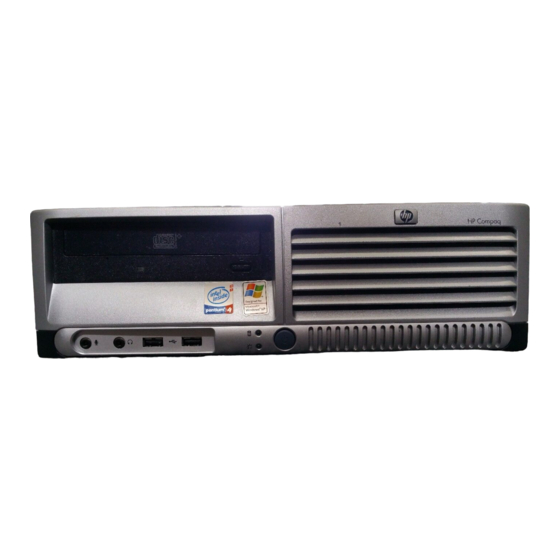

HP Compaq Business Desktop dc7100 Series - SFF
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the
basic instructions for the disassembly of HP products to remove components and materials requiring
selective treatment.
1.0
Items Requiring Selective Treatment
1.1
Items listed below are classified as requiring selective treatment.
1.2
Enter the quantity of items contained within the product which require selective treatment in
the right column, as applicable.
Item Description
Printed Circuit Boards (PCB) or Printed
Circuit Assemblies (PCA)
Batteries
Mercury containing components
Liquid Crystal Displays (LCD) with a
surface greater than 100 square cm
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing
PCB / PCT)
Electrolytic Capacitors / Condensers
measuring greater than 2.5 cm in
diameter or height
External electrical cables and cords
Gas Discharge Lamps
Plastics containing Brominated Flame
Retardants
Components and parts containing toner
and ink, including liquids, semi-liquids
(gel/paste) and toner
Components and waste containing
asbestos
Components, parts and materials
containing refractory ceramic fibers
Components, parts and materials
containing radioactive substances
Description
HP business desktop PC – Small Form Factor
chassis
Notes
With a surface greater than 10
square cm
All types including standard
alkaline and lithium coin or button
style batteries
For example, mercury in lamps,
display backlights, scanner lamps,
switches, batteries
Includes background illuminated
displays with gas discharge lamps
PSU, IDE, SATA cables.
Include the cartridges, print
heads, tubes, vent chambers, and
service stations.
HP Restricted
18-Aug-2005
Qty items in
product.
2 (sys bd, power
supply PCA)
1
1 – power
supply fan
Page 1

Advertisement

loading

Summary of Contents for HP Compaq Business Desktop dc7100 Series

  • Page 1 HP business desktop PC – Small Form Factor chassis Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of HP products to remove components and materials requiring selective treatment. Items Requiring Selective Treatment Items listed below are classified as requiring selective treatment.
  • Page 2: System Board

    HP-00007-01, Appendix 3 18-Aug-2005 Tools Required List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed. Tool Description Tool Size (if applicable)
  • Page 3: Power Supply

    HP-00007-01, Appendix 3 18-Aug-2005 TYPE 2 BATTERY HOLDER (see Figure 10 below) To release the battery from its holder, squeeze the metal clamp that extends above one edge of the battery. When the battery pops up, lift it out. TYPE 3 BATTERY HOLDER (see Figure 11 below) Pull back on the clip that holds the battery in place, and then remove the battery.
  • Page 4: Power Supply Fan

    HP-00007-01, Appendix 3 18-Aug-2005 POWER SUPPLY PRINTED CIRCUIT ASSEMBLY cont Remove the screws that secure the printed circuit assembly to the power supply chassis (see Figure 18 below), and then lift the PCA out of the chassis. NOTE: Screw quantity and location may vary.
  • Page 5 HP-00007-01, Appendix 3 18-Aug-2005 FIGURE 5: Rotating the power supply to its FIGURE 6: Disconnecting the serial port from upright position the system board FIGURE 7: Removing the mounting screw FIGURE 8: Removing the system board from from the system board...
  • Page 6 HP-00007-01, Appendix 3 18-Aug-2005 FIGURE 9: Type 1 battery holder FIGURE 10: Type 2 battery holder FIGURE 11: Type 3 battery holder FIGURE 12: Removing the hood sensor HP Restricted Page 6...
  • Page 7 HP-00007-01, Appendix 3 18-Aug-2005 FIGURE 13: Removing the power supply FIGURE 14: Power supply screw locations (may vary) FIGURE 15: Power supply screw locations FIGURE 16: Cut plastic cable clamp (may vary) HP Restricted Page 7...
  • Page 8 HP-00007-01, Appendix 3 18-Aug-2005 FIGURE 17: Cut wires (may vary) FIGURE 18 PCA screw locations (may vary) FIGURE 19: Power supply fan screw locations HP Restricted Page 8...
