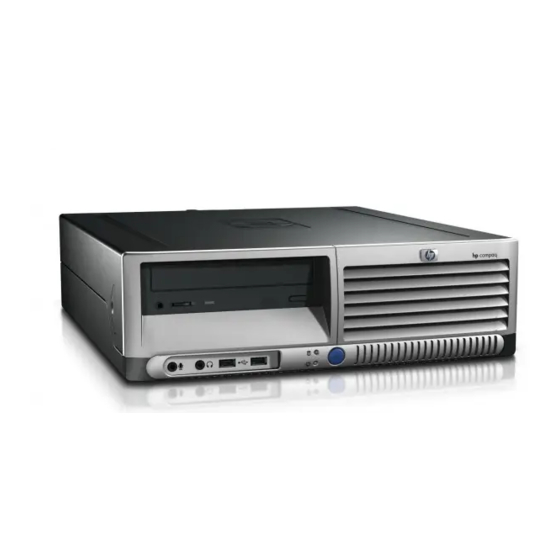

HP Compaq dc7100 DT Supplementary Manual

HP Compaq Business Desktop
dc7100 Series Personal Computer
Illustrated Parts Map
Ultra Slim Desktop
System Unit
1 Computer access panel with captive thumb screw
2 Chassis
3 Power supply
4 Front bezel assembly (painted)
* Front bezel assembly (not painted) Blue Angel only
Cables
1 Serial/Parallel port expansion card with cables
2 SATA hard drive cable (see cable kit)
3 Front I/O device with USB, Audio In and Audio Out
cables (see cable kit)
*Not shown
© 2004 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided "as is" without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
377777-001
Standard and Optional Boards
not spared
1 System board with alcohol pad and thermal grease
352395-001
2 Riser board for expansion card cage
377780-001
3 MultiBay riser card with holder
375363-001
Memory Modules, PC3200
* 128 MB/400 MHz FSB
* 256 MB/400 MHz FSB
* 512 MB/400 MHz FSB
* 1.0 GB/400 MHZ FSB
Intel Pentium 4 Processors with alcohol pad and thermal grease
* 2.8 GHz\800 MHz FSB, 1MB cache
* 3.0 GHz\800 MHz FSB, 1MB cache
* 3.2 GHz\800 MHz FSB, 1MB cache
* 3.4 GHz\800 MHz FSB, 1MB cache
* 3.6 GHz\800 MHz FSB, 1MB cache
Intel Celeron Processors with alcohol pad and thermal grease
* 2.66 GHz\533 MHz FSB, 256 K cache
* 2.8 GHz\533 MHz FSB, 256 K cache
Other cards
* TPM security module
* PCI Modem, International, FH bracket
* Broadcom Gigabit NIC, FH bracket
* Intel Gigabit NIC
* FireWire 1394 card, 2 ext/1 int port, FH bracket
* Wireless LAN adapter (802.11), FH bracket
* Wireless LAN adapter (802.11), FH bracket
Graphics Solutions
372111-001
* NVidia Quadro NVS 280, 64 MB PCI card
377775-001
377775-001 *Not shown
LP= Low profile mouinting bracket
FH = Full height mounting bracket
Development Company, L.P.
warranty.
October 2004
Document Number
361290-001
361681-001
345109-001
348651-001
335697-005
335698-005
335699-005
335700-005
367594-001
366643-001
366644-001
367415-001
367416-001
375361-001
375362-001
366504-001
361286-021
321793-005
314901-005
361552-001
359721-291
377160-001
351384-005
Mass Storage Devices (not illustrated)
40 GB\7200 RPM SATA hard drive
80 GB\7200 RPM SATA hard drive
120 GB\7200 RPM SATA hard drive
160 GB\7200 RPM SATA hard drive
MultiBay Components
Diskette drive, MultiBay
24X CD-ROM MultiBay drive
24X/24X/24X/8X CED-RW/DVD ROM
8X/24X DVD-ROM MultiBay drive
Miscellaneous Parts
1, Plastics kit includes PCI card latch 1 and left and
7 right front bezel latch covers 7
1 PCI card latch - part of Plastics kit
2 Fan duct assembly for heatsink
3 Speaker assembly
4 Heatsink with thermal grease and alcohol pad
5 Hood sensor
6 Backplate heat pipe
7 Left and right front bezel latch lever covers - part of
Plastics kit
* Chassis fan kit. Includes fan, 4 front bezel mounting
screws, 4 grommets, and 4 grommet retainers
* Mouse, 2-Button, USB, optical with scroll wheel
* Mouse, 2-Button, USB, with scroll wheel
* Drive Key, 128 MB
* Drive Key, 256 MB
* Real-time-clock battery
* Universal clamp lock with cable
* Tower stand
*Not shown
Keyboards (not illustrated)
USB, Basic 355631-xxx
USB, Modular 355102-xxx
Arabic -175 Italian
Belgian -185 Japanese
BHCSY -B45 Korean (Hanguel)
Brazilian Portuguese -205 LA Spanish
Czech -225 Norwegian
Danish -085 PRC
Europe* -025 Portuguese
Finnish -355 Russian
French -055 Slovakian
French Arabic -DE5 Spanish
French Canadian -125 Swedish
German -045 Swiss
Greek -155 Taiwanese
Hebrew** -BB5 Thai
Hebrew* -BB1 Turkish
Hungarian -215 U.S.
International** -B35 U.K.
* For 355102 only
**For 355631 only
Keyboards, Blue Angel, Gray and Carbonite (not illustrated)
USB, Basic 355632-xxx
Belgian -185 International
Danish -085 Italian
French -055 Swedish
German -045 Swiss
365555-001
345713-005
365556-001
345712-005
335169-005
325314-005
346789-005
325316-005
379878-001
379878-001
377781-001
377778-001
377782-001
377784-001
377783-001
379878-001
377779-001
323615-005
323617-005
349988-005
372889-001
153099-001
335809-005
378008-001
-065
-295
-KD5
-165
-095
-AA5
-135
-255
-235
-075
-105
-115
-AB5
-285
-145
-005
-035
-B35
-065
-105
-115
