Instructions-Parts
Air Controls
Integrated and 2-Button Interlock Air Controls for use with Supply Systems.
For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for Model information.

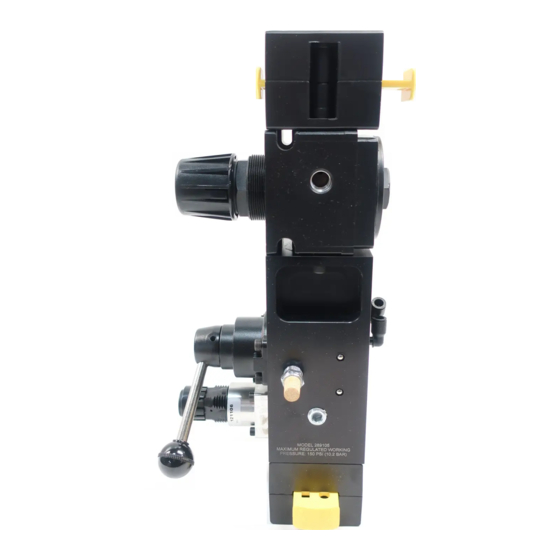

L20c Air Controls
r_257302_312376_2e
312374H
Integrated Air Controls
ti10438a
EN

Advertisement

Table of Contents
loading

Related Manuals for Graco L20c

Summary of Contents for Graco L20c

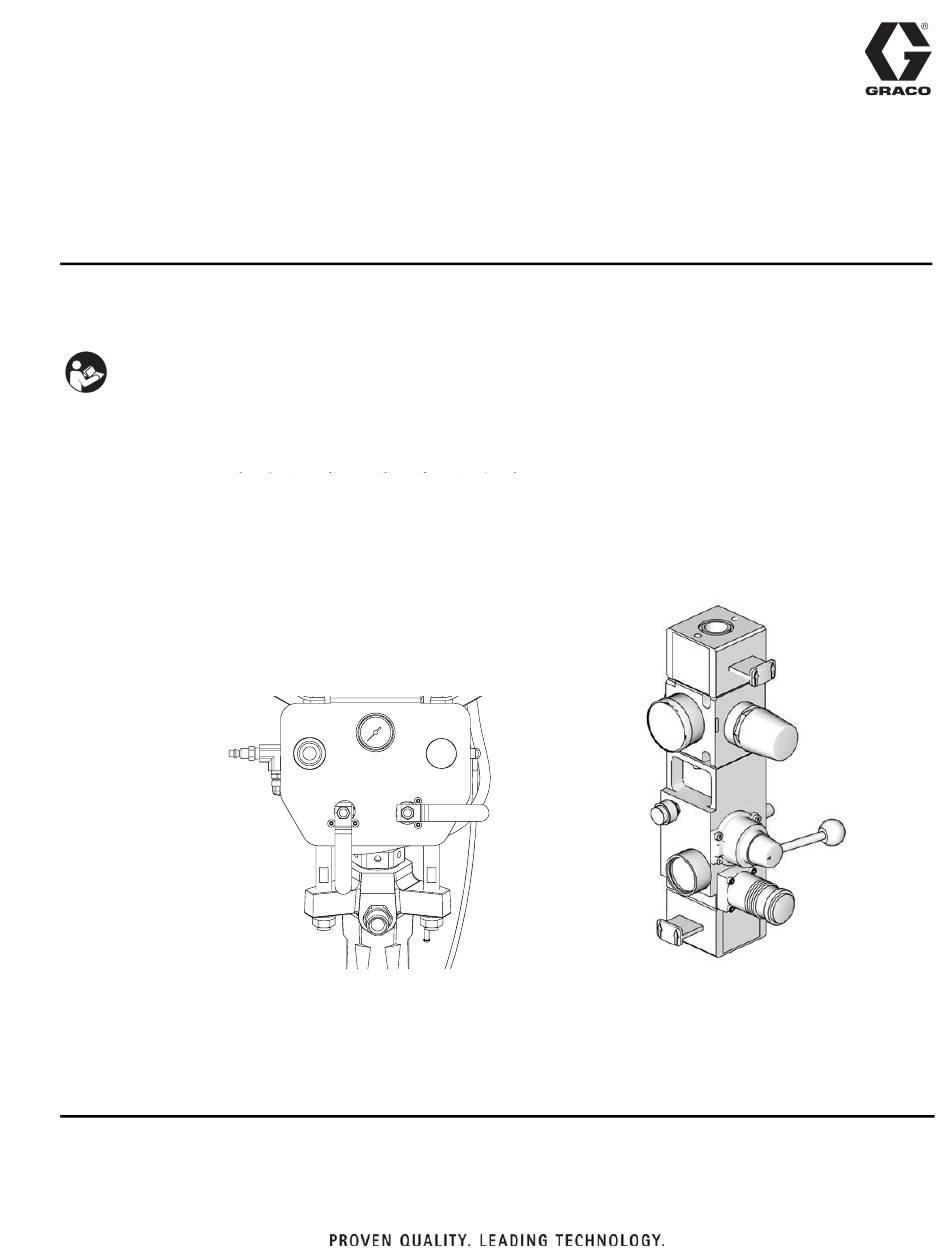

  • Page 1 Integrated and 2-Button Interlock Air Controls for use with Supply Systems. For professional use only. Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. See page 2 for Model information. Integrated Air Controls L20c Air Controls r_257302_312376_2e ti10438a...
